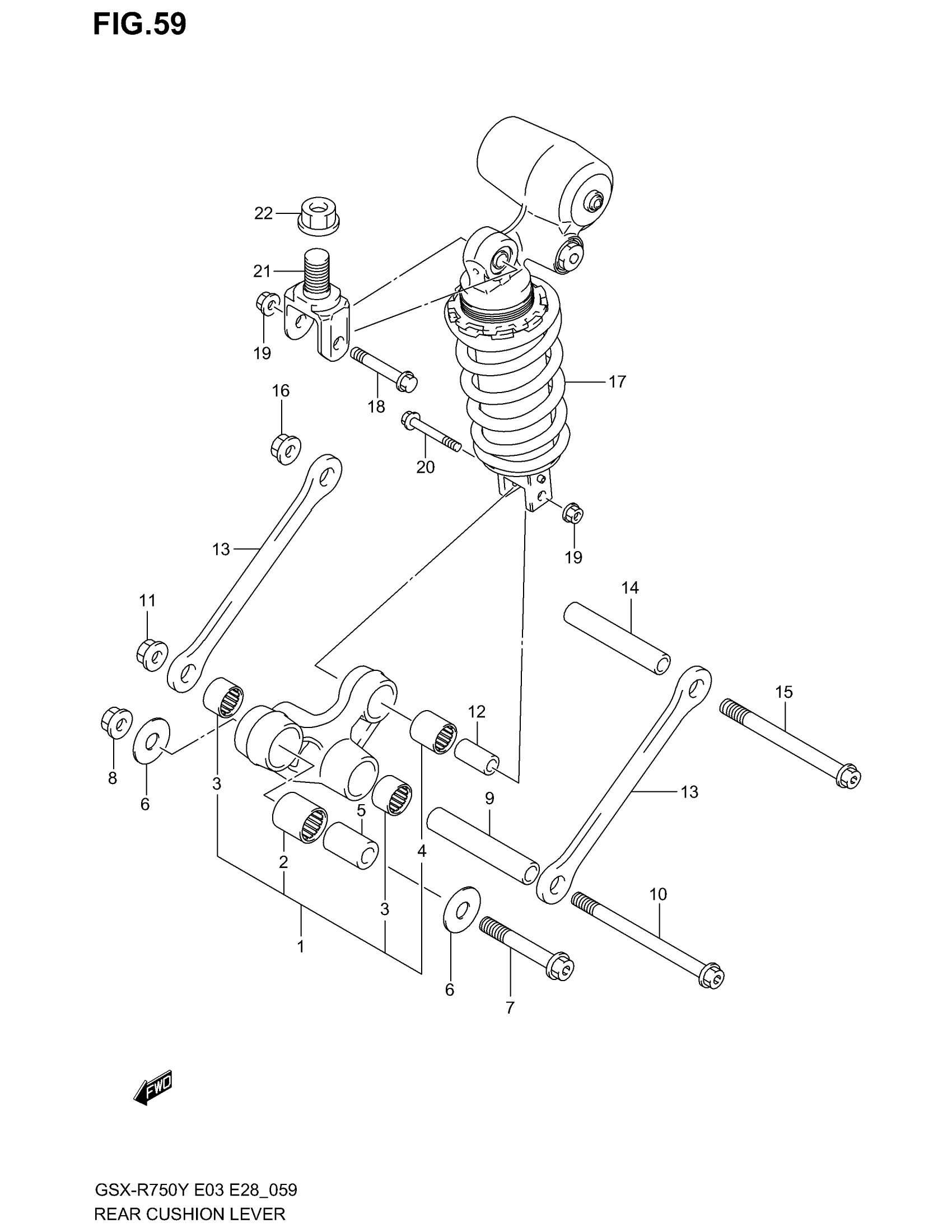

Suzuki GSX-R750 (2003) REAR CUSHION LEVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 62600-35810.

62600-35870

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

WASHER

09160-12037

$3.83

7

BOLT, FRONT

62658-35F00

$40.48

8

NUT This part replaces 08319-31128.

08319-3112A

$3.76

9

SPACER, CENTER

62626-33D00

$21.19

10

BOLT, CENTER

62621-35F00

$47.00

11

NUT This part replaces 08319-31128.

08319-3112A

$3.76

12

SPACER, REAR

62684-40A10

$12.15

13

ROD, REAR CUSHION LEVER

62641-35F00

$60.57

14

SPACER, ROD

62626-33D00

$21.19

15

BOLT, ROD

62621-35F00

$47.00

16

NUT This part replaces 08319-31128.

08319-3112A

$3.76

17

ABSORBER ASSY, REAR SHOCK | E3,E33 This part replaces 62100-35F10.

62100-39F10

Unavailable

17

ABSORBER ASSY, REAR SHOCK | E28

62100-35F00

Unavailable

18

BOLT, UPPER (10X55)

09103-10143

$4.52

19

NUT

08319-31107

$2.73

20

BOLT, LOWER (10X55)

09103-10143

$4.52

21

BRACKET, ABSORBER

62993-35F00

Unavailable

22

NUT

09159-20006

$27.12
