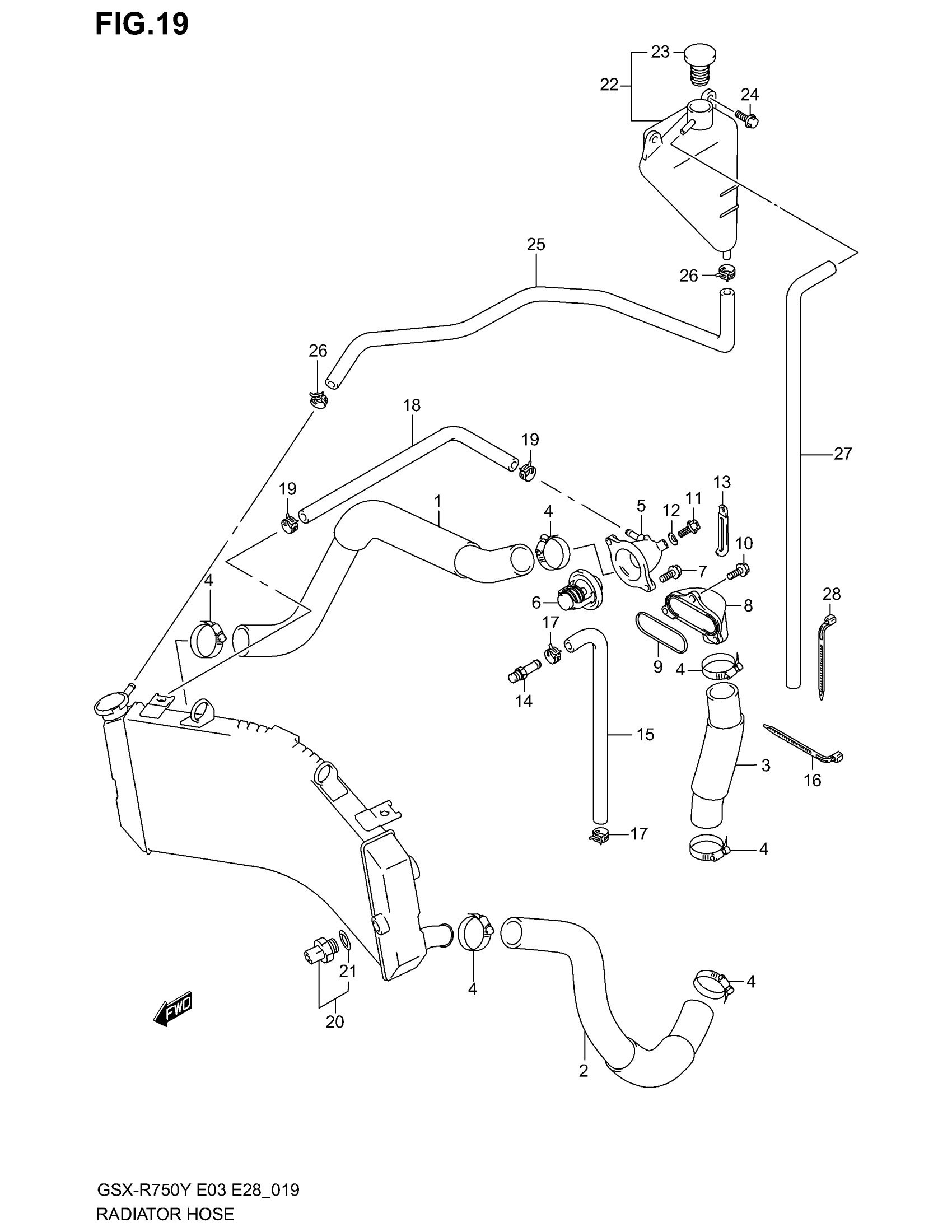

Suzuki GSX-R750 (2003) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET | MODEL Y/K1 This part replaces 17851-35F00.

17851-35F10

Unavailable

1

HOSE, RADIATOR INLET | MODEL K2/K3

17851-35F10

Unavailable

2

HOSE, RADIATOR OUTLET | MODEL Y/K1 This part replaces 17852-35F00.

17852-35F10

$42.77

2

HOSE, RADIATOR OUTLET | MODEL K2/K3

17852-35F10

$42.77

3

HOSE,CYLINDER INLET | MODEL Y/K1 This part replaces 17853-35F00.

17853-35F10

$33.30

3

HOSE,CYLINDER INLET | MODEL K2/K3

17853-35F10

$33.30

4

CLAMP

09402-38511

$11.67

5

COVER, THERMOSTAT

17661-35F00

$43.10

6

THERMOSTAT,WTR, This part replaces 17670-50F00.

17670-50F01

$33.71

7

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

8

CONNECTOR | MODEL Y/K1 This part replaces 17861-33E00.

17861-33E20

$22.56

8

CONNECTOR | MODEL K2/K3 This part replaces 17861-33E10.

17861-33E20

$22.56

9

O RING

17863-33E00

$4.03

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$4.76

12

GASKET, AIR BOLT (6.4X11.5X0.8)

09168-06026

$3.10

13

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

14

UNION, BYPASS

09362-09011

$8.28

15

HOSE, WATER BYPASS

17854-35F00

$22.92

16

CLAMP, BYPASS HOSE

09407-18402

$2.19

17

CLIP This part replaces 09401-12409.

09401-12414

$3.26

18

HOSE, WATER BYPASS NO.2 (5X11X600) | L:600!480

09352-50111-600

$13.78

19

CLIP (ID:10.5,H:8)

09401-10409

$2.26

20

SWITCH,RDTR FAN | Includes Item(s) 21 This part replaces 17680-33E00.

17680-33E01

$48.44

21

O RING

17689-50F00

$2.53

22

TANK ASSY, RESERVOIR | MODEL Y This part replaces 17910-35F00.

17910-35F02

$63.46

22

TANK ASSY, RESERVOIR | MODEL K1 This part replaces 17910-35F01.

17910-35F02

$63.46

22

TANK ASSY, RESERVOIR | MODEL K2/K3; Includes Item(s) 23

17910-35F02

$63.46

23

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

24

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

25

HOSE, TANK OVERFLOW This part replaces 17981-35F00.

17900-35810

$35.45

26

CLIP

09401-08411

$1.78

27

HOSE, OVER FLOW (5X9X600) | L:600!500

09352-50901-600

$8.06

28

CLAMP

09407-18402

$2.19
