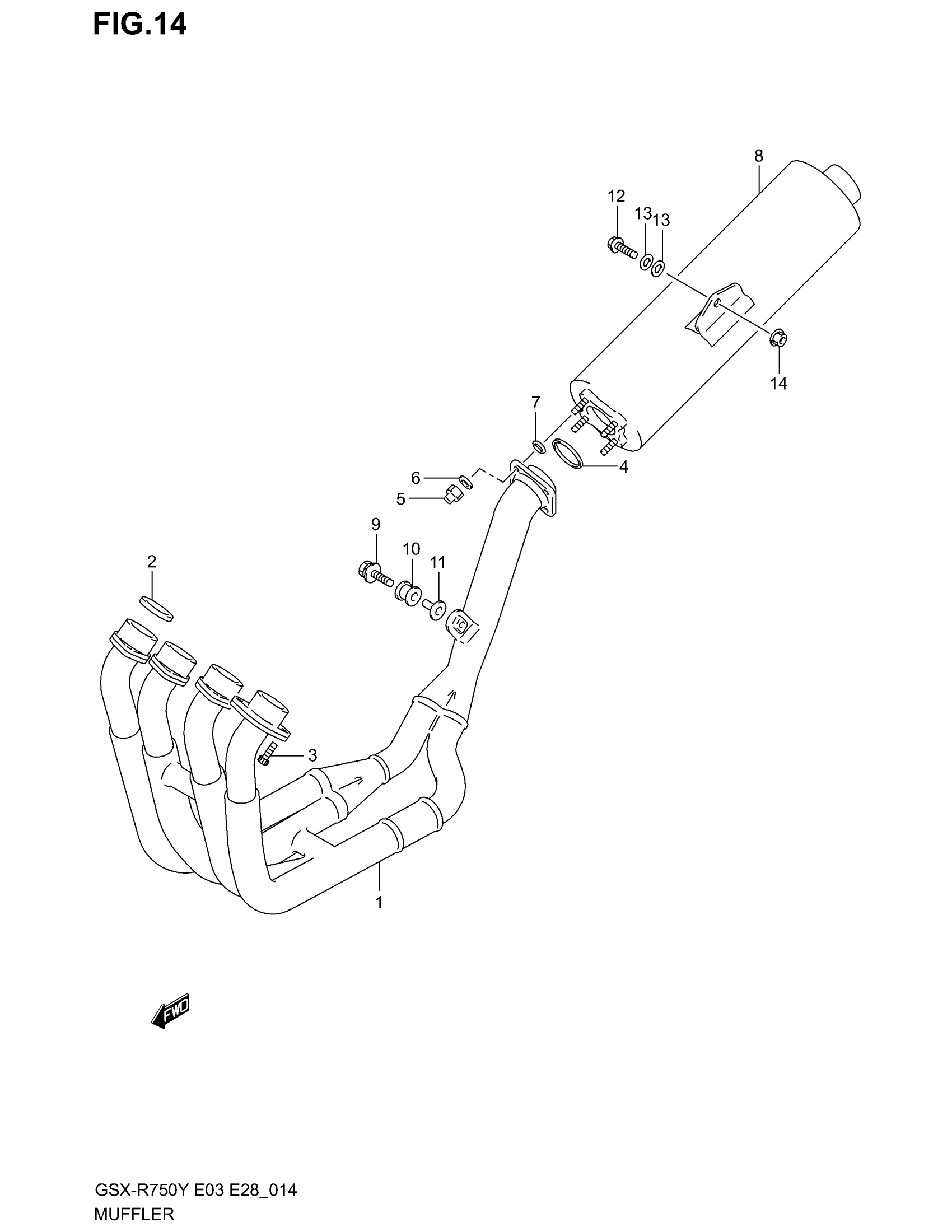

Suzuki GSX-R750 (2003) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Y/K1 This part replaces 14100-35F00.

14100-35F01

Unavailable

1

PIPE, EXHAUST | MODE K2/K3

14100-35F10

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

GASKET

14181-02F00

$6.93

5

NUT | MODEL Y/K1 This part replaces 09159-08115.

09159-08116

$9.00

5

NUT | MODEL K2/K3

09159-08116

$9.00

6

WASHER (8.5X18X2.0) | MODEL Y/K1 This part replaces 09160-08114.

09160-08120

$2.19

6

WASHER | MODEL K2/K3

09160-08059

$1.68

7

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

8

MUFFLER ASSY | MODEL Y This part replaces 14310-35F00-H01.

14310-35F01-H01

Unavailable

8

MUFFLER ASSY | MODEL K1/K2/K3

14310-35F01-H01

Unavailable

9

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

10

CUSHION

09320-12048

$5.11

11

SPACER

09180-08152

$5.83

12

BOLT (8X35)

09103-08365

$3.91

13

WASHER | MODEL Y/K1 This part replaces 09160-08131.

09160-08130

$2.03

13

WASHER | MODEL K2/K3

09160-08081

$2.56

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97
