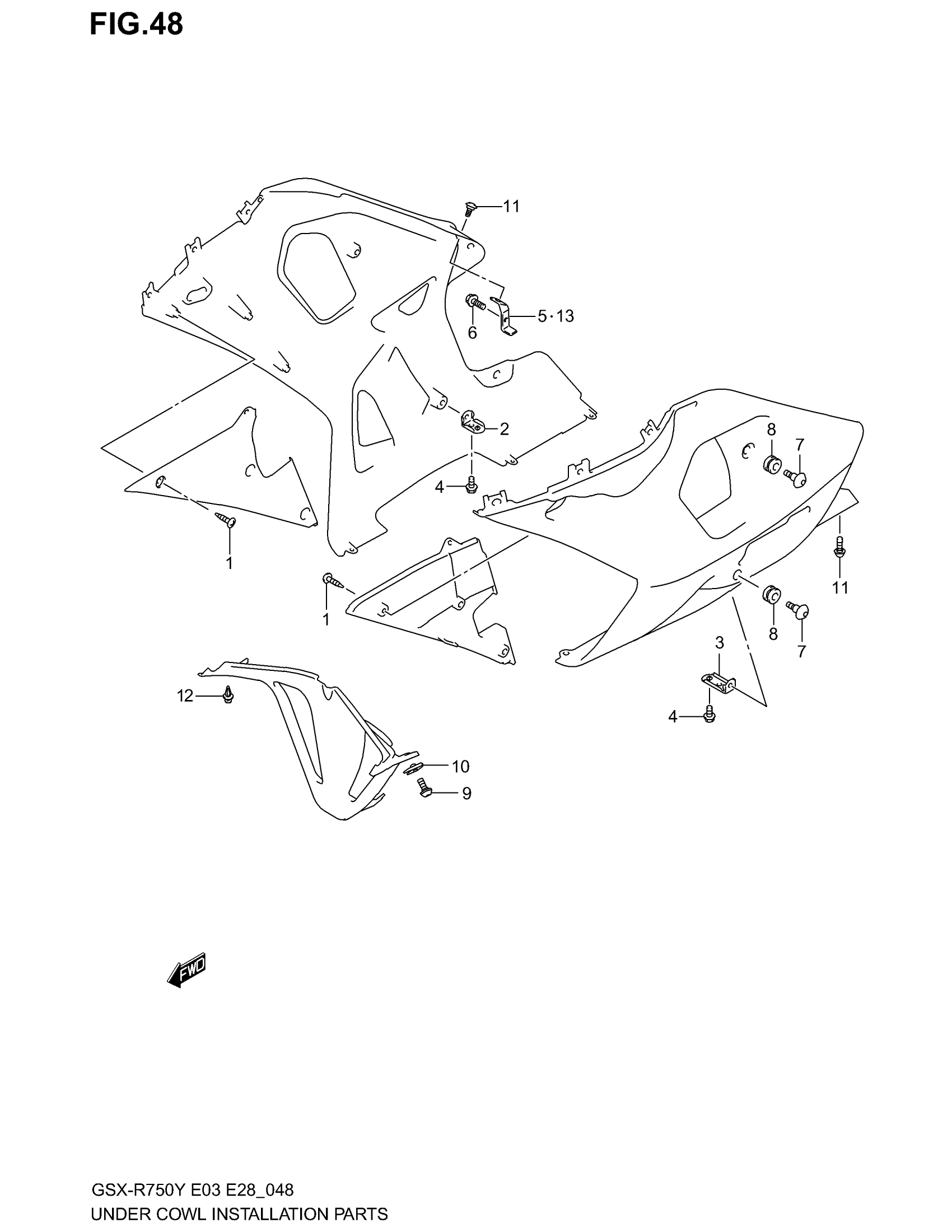

Suzuki GSX-R750 (2003) INSTALLATION PARTS Diagram

#

Description
Price

1

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

2

BRACKET, UNDER RH | MODEL Y/K1 This part replaces 94533-33E00.

94533-33E01

$8.11

2

BRACKET, UNDER RH | MODEL K2/K3

94533-33E01

$8.11

3

BRACKET, UNDER LH | MODEL Y/K1 This part replaces 94534-33E00.

94534-33E01

$8.56

3

BRACKET, UNDER LH | MODEL K2/K3

94534-33E01

$8.56

4

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

5

BRACKET, UNDER RH

94535-35F00

$12.10

6

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

7

SCREW This part replaces 09139-06087.

09139-06126

$4.04

8

CUSHION

09320-09016

$1.97

9

SCREW, COWL JOINT

09139-05064

$2.57

10

NUT COWL

94484-24F00

$4.03

11

SCREW, REAR COWL

09139-05064

$2.57

12

CLIP, UNDER COWL

94479-35F00

$5.62

13

BRACKET, UNDER UPPER LH

94536-35F00

$12.10
