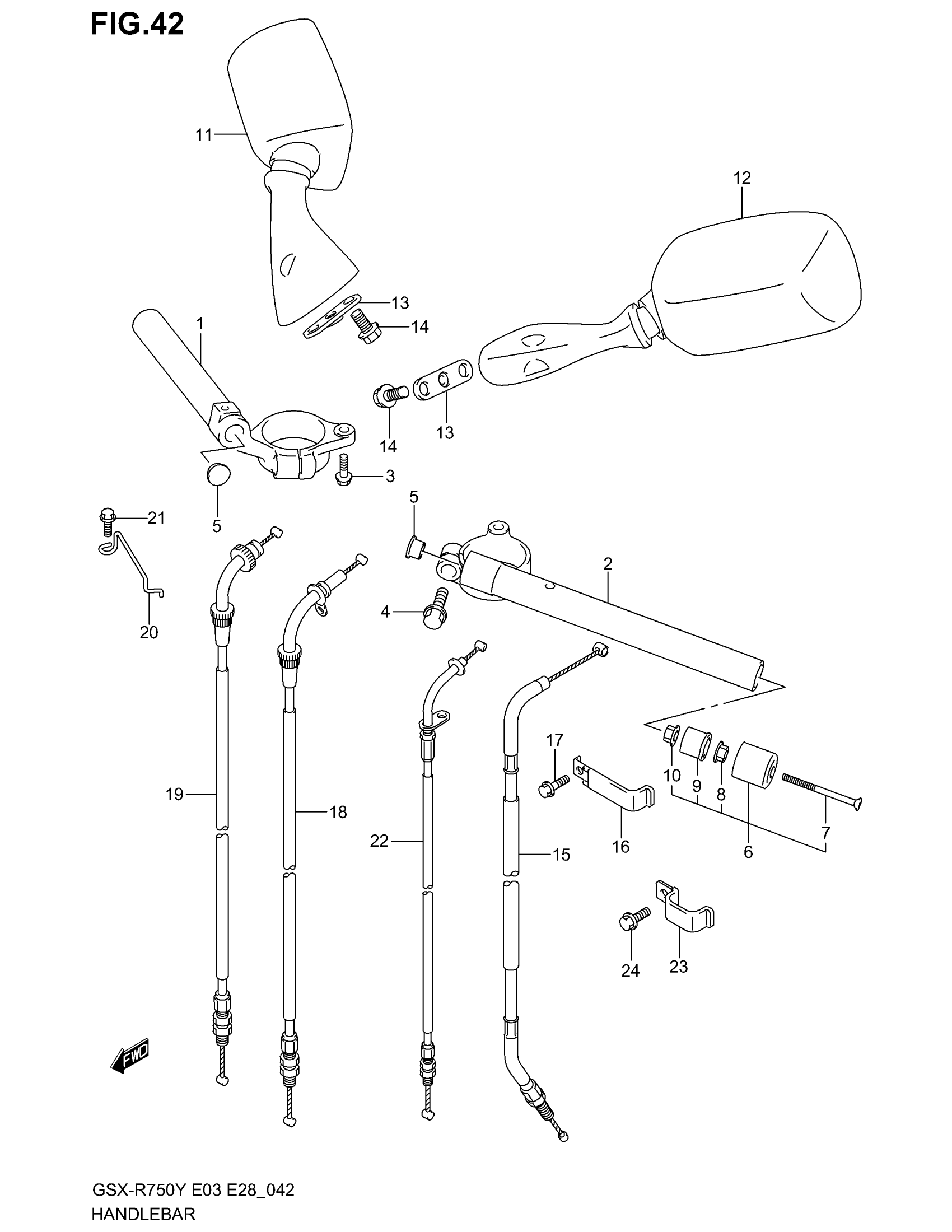

Suzuki GSX-R750 (2003) HANDLEBAR (MODEL Y/K1) Diagram

#

Description
Price

1

HANDLEBAR, RH | MODEL Y This part replaces 56111-35F00.

56111-35F02

Unavailable

1

HANDLEBAR, RH | MODEL K1

56111-35F02

Unavailable

2

HANDLEBAR, LH | MODEL Y This part replaces 56151-35F00.

56151-35F01

Unavailable

2

HANDLEBAR, LH | MODEL K1

56151-35F01

Unavailable

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

BOLT, HANDLEBAR

56123-35F00

$6.17

5

CAP

09250-14006

$1.99

6

BALANCER SET,HA | Includes Item(s) 7 - 10 This part replaces 56200-35830.

56200-35831

$38.70

7

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

8

NUT This part replaces 08316-10083.

08316-1008B

$2.66

9

EXPANDER

56272-44500

$4.42

10

NUT

09159-06024

$2.11

11

MIRROR ASSY, REAR VIEW RH This part replaces 56500-24F00.

56500-24F20

$257.48

12

MIRROR ASSY, REAR VIEW LH This part replaces 56600-24F00.

56600-24F20

$239.77

13

CUSHION

94576-24F00

$6.52

14

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

15

CABLE ASSY, CLUTCH | MODEL Y

58200-35F00

Unavailable

15

CABLE ASSY, CLUTCH | MODEL K1

58200-39F00

Unavailable

16

CLAMP This part replaces 36651-35F00.

36651-35F02

Unavailable

17

BOLT This part replaces 01550-05123.

01550-0512B

$2.87

18

CABLE ASSY, THROTTLE NO.1

58300-35F00

Unavailable

19

CABLE ASSY, THROTTLE NO.2

58300-35F10

Unavailable

20

GUIDE, CABLE | MODEL Y

58621-35F00

Unavailable

20

GUIDE,THROTTLE | MODEL K1 This part replaces 58621-35F10.

58621-35F1V

Unavailable

21

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

22

CABLE, STARTER

58410-35F00

Unavailable

23

CLAMP This part replaces 09403-10307.

09403-10328

$1.98

24

BOLT This part replaces 01550-06103.

01550-0610A

$1.97
