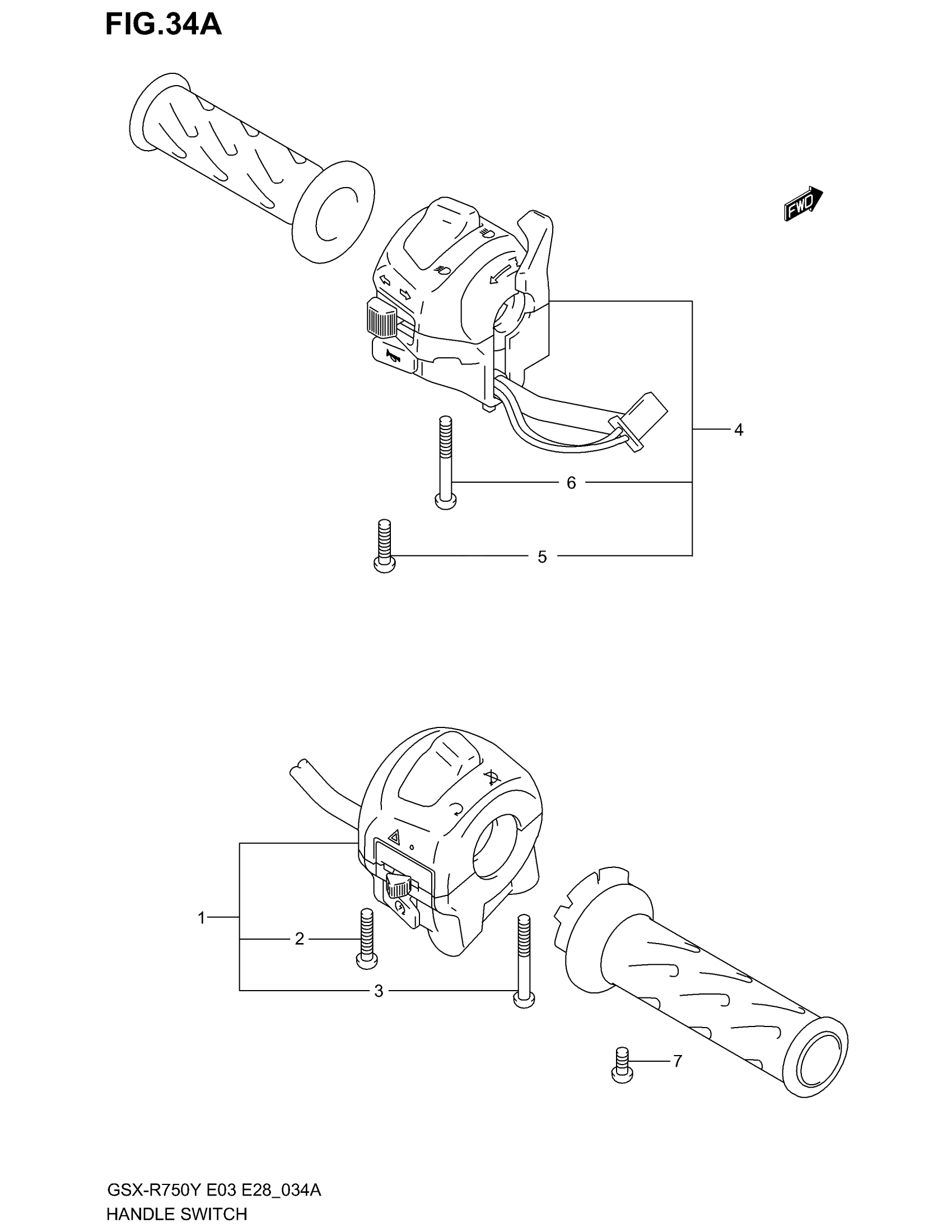

Suzuki GSX-R750 (2003) HANDLE SWITCH (MODEL K3) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3 This part replaces 37200-35F30.

37200-27E31

$166.27

2

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

3

SCREW This part replaces 02112-05505.

02112-0550B

$2.39

4

SWITCH ASSY,HAN | Includes Item(s) 5 - 6 This part replaces 37400-40F80.

37400-40F81

Unavailable

5

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.49

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49
