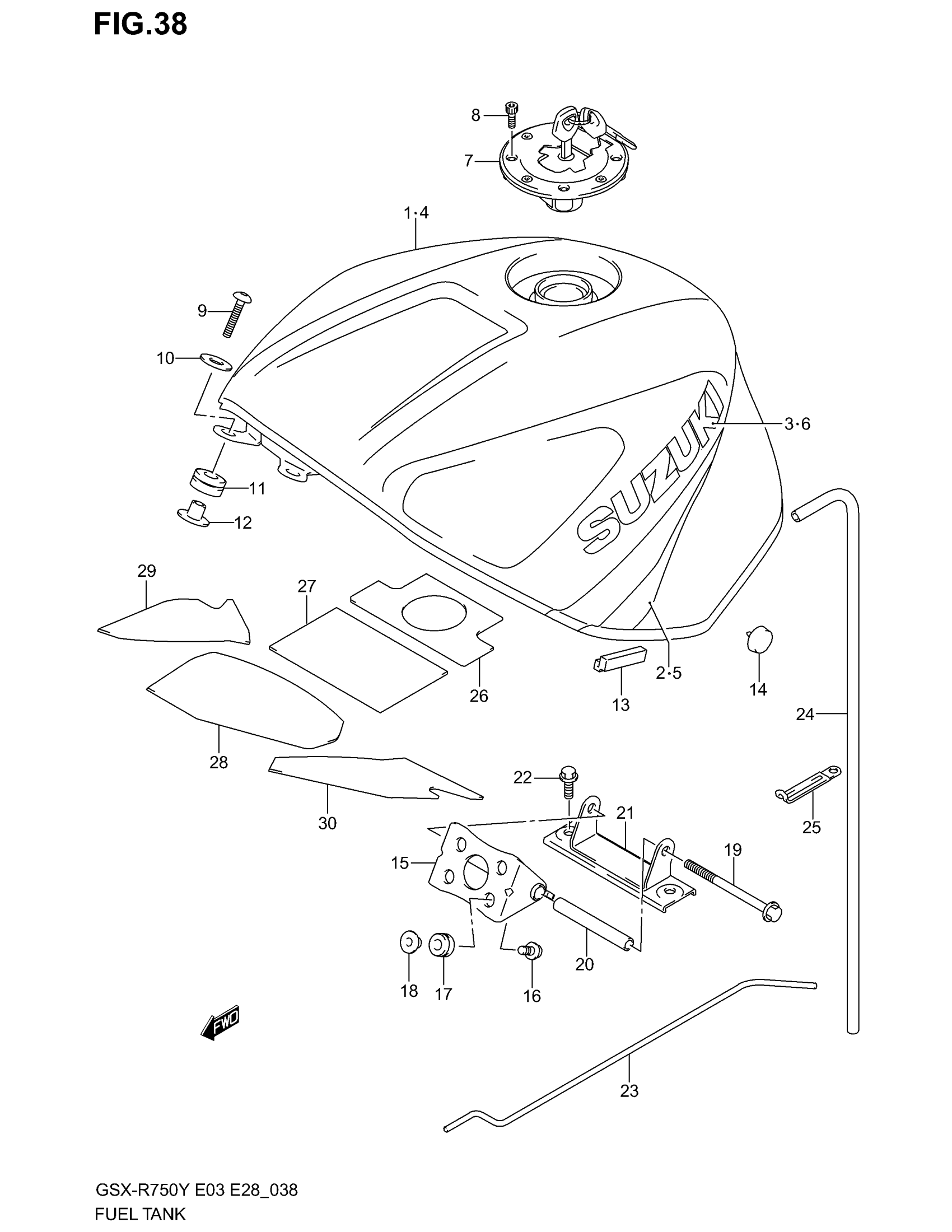

Suzuki GSX-R750 (2003) FUEL TANK (MODEL Y) Diagram

TANK ASSY,FUEL | E3,E28 This part replaces 44100-35FA1-L99.

44100-35FA2-L99

Unavailable

TANK ASSY,FUEL | E33; Includes Item(s) 2 - 3 This part replaces 44100-35FB1-L99.

44100-35FB2-L99

Unavailable

TAPE SET, FUEL TANK

68110-35F00-M18

Unavailable

EMBLEM (WHITE)

68111-43400-0JW

Unavailable

NO DESCRIPTION AVAILABLE | E3,E28 This part replaces 44100-35FC1-CY8.

44100-35FC2-CY8

Unavailable

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 5 - 6 This part replaces 44100-35FD1-CY8.

44100-35FD2-CY8

Unavailable

TAPE SET, FUEL TANK

68110-35F10-CY9

Unavailable

EMBLEM (BLACK)

68111-43400-33J

Unavailable

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$152.27

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

BOLT

09106-05017

$2.83

BOLT, FRONT

09139-06029

$5.36

WASHER

09160-06054

$1.62

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

SPACER, FRONT

44512-19F00

$7.44

CUSHION,FUEL TA This part replaces 44541-35F00.

44541-35F01

$7.19

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.58

BRACKET, REAR NO.1

44530-35F00

Unavailable

BOLT

09116-06152

$2.36

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

SPACER

09169-06062

$2.50

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

SPACER

44561-35F00

$13.88

BRACKET, REAR NO.2 This part replaces 44550-35F00.

44550-35F10

Unavailable

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

STAY, FUEL TANK

44574-35F00

$15.16

HOSE,FUEL TANK This part replaces 44423-35F00.

44423-35F01

Unavailable

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

SHIELD, TANK HEAT REAR

44191-35F00

Unavailable

SHIELD, TANK HEAT CENTER

44192-35F00

Unavailable

SHIELD, TANK HEAT FRONT CENTER

44193-35F00

Unavailable

SHIELD, TANK HEAT FRONT RH

44194-35F00

Unavailable

SHIELD, TANK HEAT FRONT LH

44195-35F00

Unavailable
