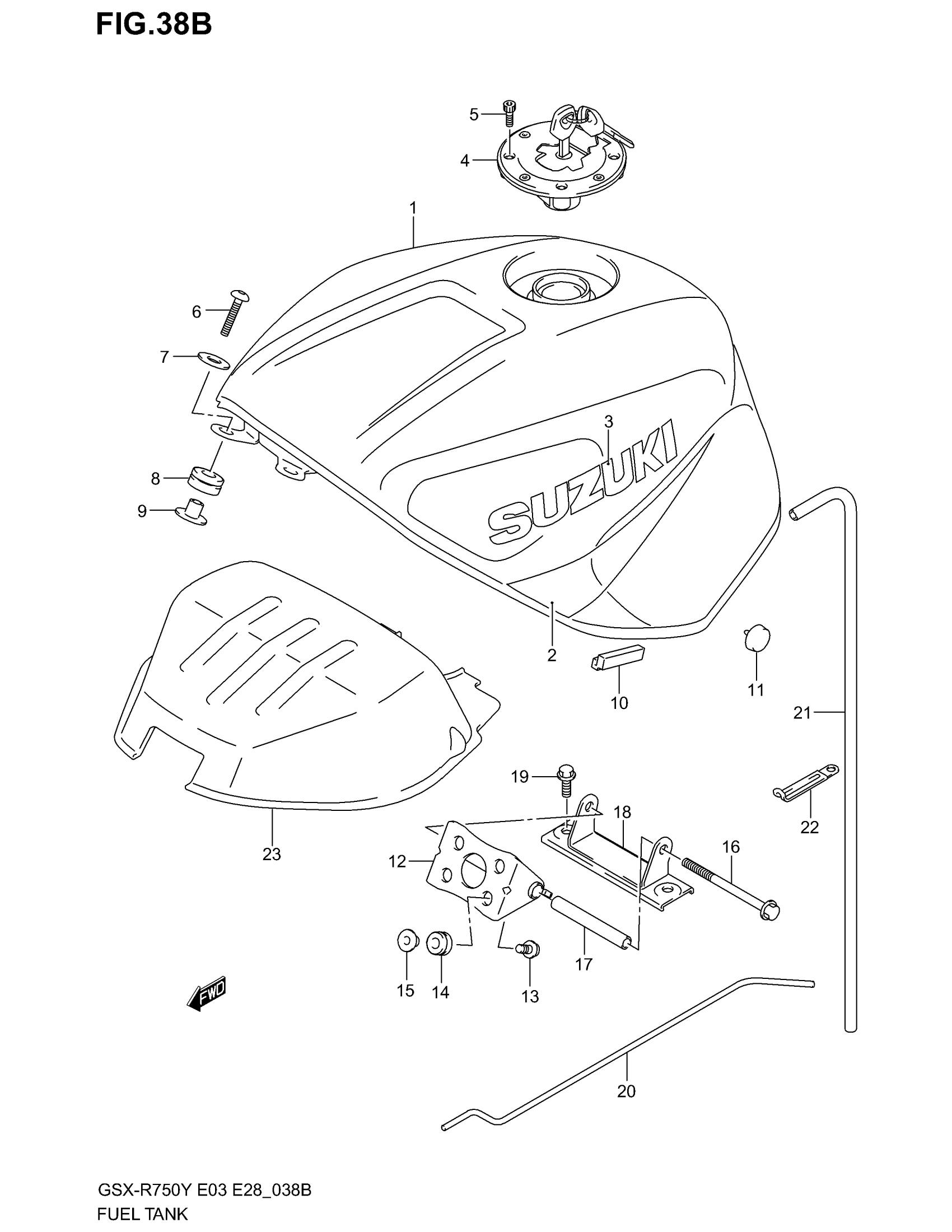

Suzuki GSX-R750 (2003) FUEL TANK (MODEL K2) Diagram

TANK ASSY, FUEL | E3,E28 FOR L99

44100-35F60-L99

Unavailable

TANK ASSY, FUEL | E3,E28 FOR BP9

44100-35F60-BP9

Unavailable

TANK ASSY, FUEL | E3,E28 FOR FN9

44100-35F60-M4L

Unavailable

TANK ASSY, FUEL | E33 FOR L99

44100-35F70-L99

Unavailable

TANK ASSY, FUEL | E33 FOR BP9

44100-35F70-BP9

Unavailable

TANK ASSY, FUEL | E33 FOR FN9; Includes Item(s) 2 - 3

44100-35F70-M4L

Unavailable

TAPE SET, FUEL TANK (BLUE) | FOR L99

68110-35F20-1LE

Unavailable

TAPE SET, FUEL TANK (YELLOW) | FOR BP9

68110-35F20-Y9H

Unavailable

TAPE SET, FUEL TANK (SILVER) | FOR M4L

68110-35F20-YD8

Unavailable

EMBLEM (WHITE) | FOR L99

68111-12C30-0JW

$28.50

EMBLEM (BLACK) | FOR BP9

68111-12C30-Y7L

Unavailable

EMBLEM (SILVER) | FOR M4L

68111-12C30-YD8

$28.50

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$142.03

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$281.20

BOLT

09106-05017

$2.80

BOLT, FRONT

09139-06029

$4.84

WASHER

09160-06054

$1.62

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.20

SPACER, FRONT

44512-19F00

$6.80

CUSHION,FUEL TA This part replaces 44541-35F00.

44541-35F01

$6.77

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.19

BRACKET, REAR NO.1

44530-35F00

Unavailable

BOLT

09116-06152

$2.14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

SPACER

09169-06062

$2.50

BOLT This part replaces 01550-06953.

01550-0695B

$3.58

SPACER

44561-35F00

$13.06

BRACKET, REAR NO.2

44550-35F10

Unavailable

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31

STAY, FUEL TANK

44574-35F00

$13.89

HOSE,FUEL TANK This part replaces 44423-35F00.

44423-35F01

Unavailable

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

NO DESCRIPTION AVAILABLE This part replaces 44191-40F10.

44191-40F11

Unavailable
