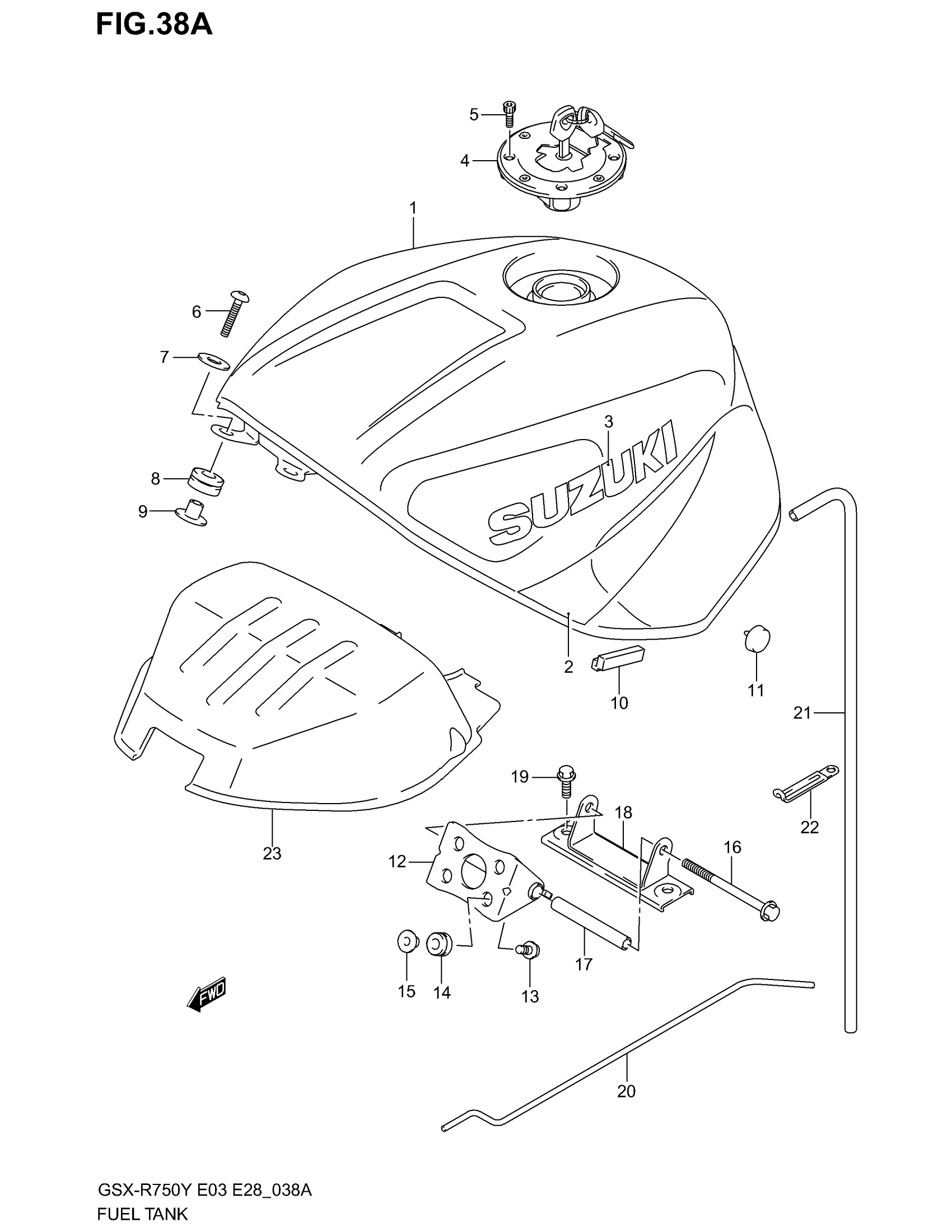

Suzuki GSX-R750 (2003) FUEL TANK (MODEL K1) Diagram

NO DESCRIPTION AVAILABLE | E3,E28 This part replaces 44100-35F10-L99.

44100-35F40-L99

Unavailable

TANK ASSY, FUEL | E28

44100-35F10-BP9

Unavailable

NO DESCRIPTION AVAILABLE | E3 This part replaces 44100-35F10-FP2.

44100-35F40-FP2

Unavailable

TANK ASSY,FUEL | E33 This part replaces 44100-35F30-L99.

44100-35F50-L99

Unavailable

TANK ASSY,FUEL | E33; Includes Item(s) 2 - 3 This part replaces 44100-35F30-FP2.

44100-35F50-FP2

Unavailable

TAPE SET,FUEL T | FOR L99 This part replaces 68110-39F00-1LE.

68110-39F10-1LE

Unavailable

NO DESCRIPTION AVAILABLE | FOR BP9 This part replaces 68110-39F00-Y7L.

68110-39F10-Y7L

Unavailable

TAPE SET,FUEL T | FOR FP2 This part replaces 68110-39F00-Y7M.

68110-39F10-Y7M

Unavailable

EMBLEM (WHITE) | FOR L99 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

EMBLEM (SILVER) | FOR BP9,FP2 This part replaces 68111-12C00-YD8.

68111-12C30-YD8

$25.25

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$152.27

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

BOLT

09106-05017

$2.83

BOLT, FRONT

09139-06029

$5.36

WASHER

09160-06054

$1.62

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

SPACER, FRONT

44512-19F00

$7.44

CUSHION,FUEL TA This part replaces 44541-35F00.

44541-35F01

$7.19

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.58

BRACKET, REAR NO.1

44530-35F00

Unavailable

BOLT

09116-06152

$2.36

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

SPACER

09169-06062

$2.50

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

SPACER

44561-35F00

$13.88

BRACKET, REAR NO.2

44550-35F10

Unavailable

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

STAY, FUEL TANK

44574-35F00

$15.16

HOSE,FUEL TANK This part replaces 44423-35F00.

44423-35F01

Unavailable

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

SHIELD, TANK HEAT

44191-40F00

Unavailable
