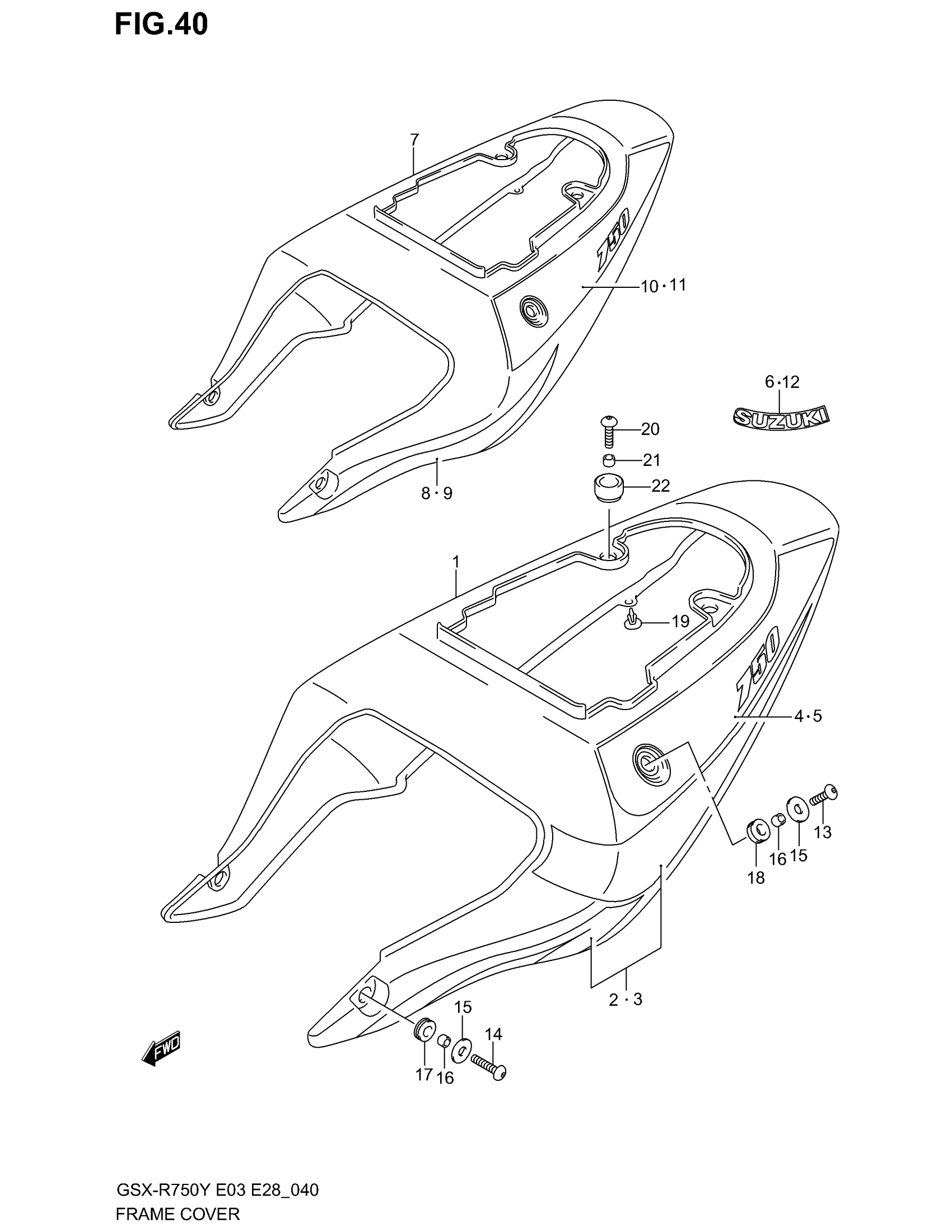

Suzuki GSX-R750 (2003) FRAME COVER (MODEL Y) Diagram

#

Description
Price

1

COVER ASSY, FRAME (BLACK) | FOR L99; Includes Item(s) 2 - 6

47100-35F00-019

Unavailable

2

TAPE SET, RH

68130-35F00-CA5

Unavailable

3

TAPE SET, LH

68140-35F00-CA5

Unavailable

4

TAPE, RH

68135-35F00-DJ8

Unavailable

5

TAPE, LH

68145-35F00-DJ8

Unavailable

6

EMBLEM, "SUZUKI" (WHITE)

68131-35F00-0JW

Unavailable

7

COVER ASSY, FRAME (BLACK) | FOR CY8; Includes Item(s) 8 - 12

47100-35F10-33J

Unavailable

8

TAPE, FRONT RH

68135-35F10-CY9

Unavailable

9

TAPE, FRONT LH

68145-35F10-CY9

Unavailable

10

TAPE, RH

68135-35F20-DJ2

Unavailable

11

TAPE, LH

68145-35F20-DJ2

Unavailable

12

EMBLEM, "SUZUKI" (SILVER)

68131-35F00-YD8

Unavailable

13

SCREW, SIDE

09139-06029

$5.36

14

SCREW, FRONT

09139-06042

$5.55

15

WASHER

09160-06047

$1.91

16

SPACER

09180-06283

$1.91

17

CUSHION, FRONT

47161-35F00

$4.78

18

CUSHION, SIDE

47161-35F10

$6.76

19

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

20

SCREW, UPPER

09139-06029

$5.36

21

SPACER

09180-06286

$2.50

22

CUSHION, UPPER

09320-10045

$3.76
