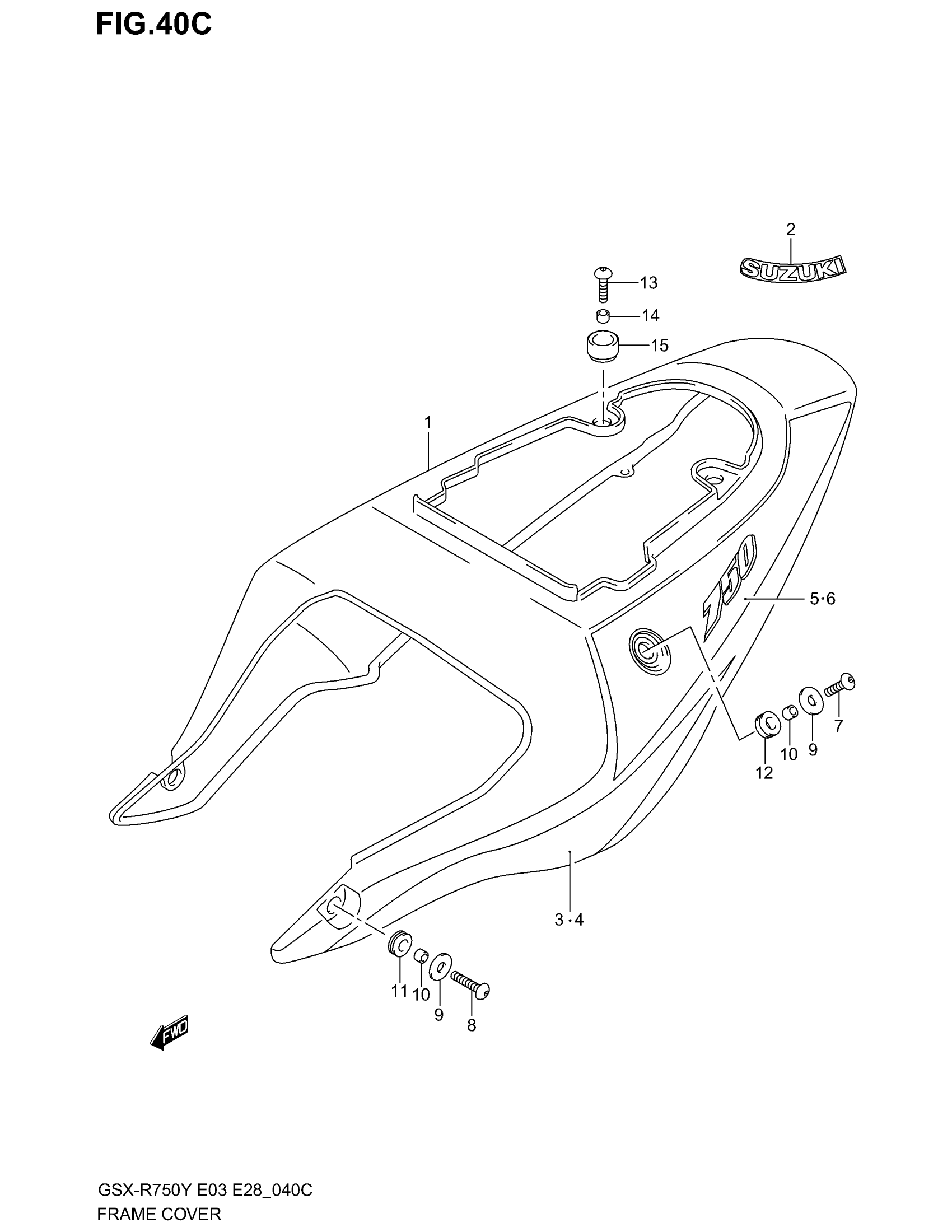

Suzuki GSX-R750 (2003) FRAME COVER (MODEL K3) Diagram

#

Description
Price

1

COVER ASSY, FRAME (WHITE) | FOR LR5

47100-35F40-YBD

Unavailable

1

COVER ASSY, FRAME (BLACK) | FOR CT5

47100-35F40-019

Unavailable

1

COVER,FRAME | FOR KU2; Includes Item(s) 2 - 6 This part replaces 47100-35F40-1TX.

47110-35F00

Unavailable

2

EMBLEM (BLACK) | FOR YBD

68131-39F00-019

Unavailable

2

EMBLEM,FRAME CO | FOR 019,1TX This part replaces 68131-39F00-YD8.

68131-39F01-YD8

Unavailable

3

TAPE, FRONT RH (BLUE) | FOR YBD

68135-35F60-YBB

Unavailable

3

TAPE, FRONT RH (GRAY) | FOR 019,1TX

68135-35F60-YU8

Unavailable

4

TAPE, FRONT LH (BLUE) | FOR YBD

68145-35F60-YBB

Unavailable

4

TAPE, FRONT LH (GRAY) | FOR 019,1TX

68145-35F60-YU8

Unavailable

5

TAPE, REAR RH | FOR YBD

68135-35F70-LV8

Unavailable

5

TAPE, REAR RH | FOR 019

68135-35F70-CT5

Unavailable

5

TAPE, REAR RH | FOR 1TX

68135-35F70-LN5

Unavailable

6

TAPE, REAR LH | FOR YBD

68145-35F70-LV8

Unavailable

6

TAPE, REAR LH | FOR 019

68145-35F70-CT5

Unavailable

6

TAPE, REAR LH | FOR 1TX

68145-35F70-LN5

Unavailable

7

SCREW, SIDE

09139-06029

$5.36

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER

09160-06047

$1.91

10

SPACER

09180-06283

$1.91

11

CUSHION, FRONT

47161-35F00

$4.78

12

CUSHION, SIDE

47161-35F10

$6.76

13

SCREW, UPPER

09139-06029

$5.36

14

SPACER

09180-06286

$2.50

15

CUSHION, UPPER

09320-10045

$3.76
