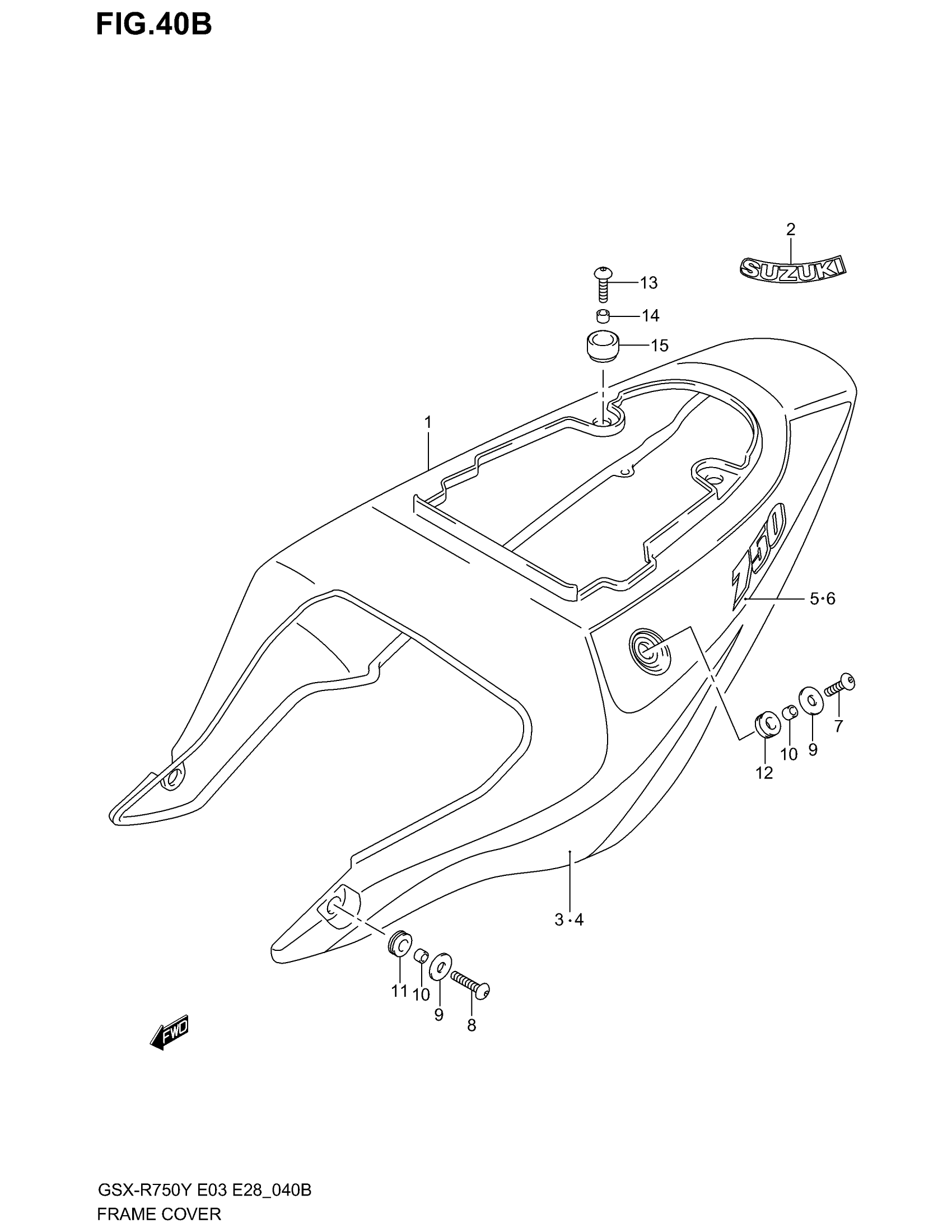

Suzuki GSX-R750 (2003) FRAME COVER (MODEL K2) Diagram

#

Description
Price

1

COVER ASSY,FRAM | FOR L99 This part replaces 47100-35F20-0JW.

47100-35F21-0JW

$1,411.80

1

COVER ASSY, FRAME (BLACK) | FOR BP9

47100-35F20-Y7L

Unavailable

1

COVER ASSY, FRAME (RED) | FOR FN9; Includes Item(s) 2 - 6

47100-35F20-Y7M

Unavailable

2

EMBLEM (BLACK) | FOR 0JW

68131-39F00-019

Unavailable

2

EMBLEM,FRAME CO | FOR Y7L,Y7M This part replaces 68131-39F00-YD8.

68131-39F01-YD8

Unavailable

3

TAPE, FRONT RH (BLUE) | FOR 0JW

68135-35F50-1LE

Unavailable

3

TAPE, FRONT RH (YELLOW) | FOR Y7L

68135-35F50-Y9H

Unavailable

3

TAPE, FRONT RH (SILVER) | FOR Y7M

68135-35F50-YD8

Unavailable

4

TAPE, FRONT LH (BLUE) | FOR 0JW

68145-35F50-1LE

Unavailable

4

TAPE, FRONT LH (YELLOW) | FOR Y7L

68145-35F50-Y9H

Unavailable

4

TAPE, FRONT LH (SILVER) | FOR Y7M

68145-35F50-YD8

Unavailable

5

TAPE, REAR RH | FOR 0JW

68135-35F40-FS8

Unavailable

5

TAPE, REAR RH | FOR Y7L

68135-35F40-HB8

Unavailable

5

TAPE, REAR RH | FOR Y7M

68135-35F40-BZ9

Unavailable

6

TAPE, REAR LH | FOR 0JW

68145-35F40-FS8

$50.83

6

TAPE, REAR LH | FOR Y7L

68145-35F40-HB8

Unavailable

6

TAPE, REAR LH | FOR Y7M

68145-35F40-BZ9

Unavailable

7

SCREW, SIDE

09139-06029

$5.36

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER

09160-06047

$1.91

10

SPACER

09180-06283

$1.91

11

CUSHION, FRONT

47161-35F00

$4.78

12

CUSHION, SIDE

47161-35F10

$6.76

13

SCREW, UPPER

09139-06029

$5.36

14

SPACER

09180-06286

$2.50

15

CUSHION, UPPER

09320-10045

$3.76
