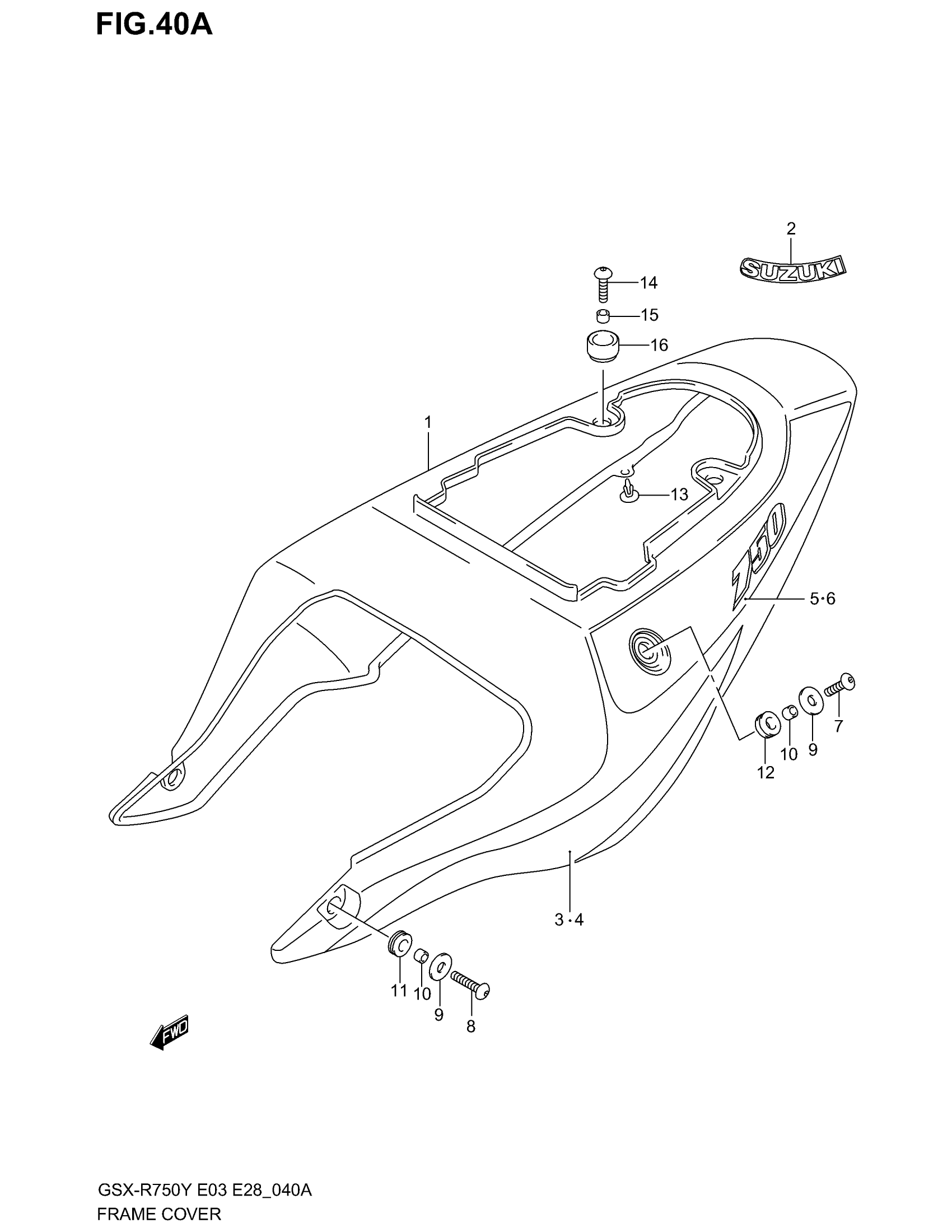

Suzuki GSX-R750 (2003) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER ASSY, FRAME (WHITE) | FOR L99

47100-35F30-0JW

Unavailable

1

COVER ASSY, FRAME (YELLOW) | FOR BP9

47100-35F30-Y9H

Unavailable

1

COVER ASSY, FRAME (SILVER) | FOR FN9; Includes Item(s) 2 - 6

47100-35F30-YD8

Unavailable

2

EMBLEM (BLACK) | FOR 0JW

68131-39F00-019

Unavailable

2

EMBLEM (BLACK) | FOR Y9H

68131-39F00-Y7L

Unavailable

2

EMBLEM (RED) | FOR YD8

68131-39F00-Y7M

Unavailable

3

TAPE, FRONT RH (BLUE) | FOR 0JW

68135-35F30-1LE

Unavailable

3

TAPE, FRONT RH (BLACK) | FOR Y9H

68135-35F30-Y7L

Unavailable

3

TAPE, FRONT RH (RED) | FOR YD8

68135-35F30-Y7M

Unavailable

4

TAPE, FRONT LH (BLUE) | FOR 0JW

68145-35F30-1LE

Unavailable

4

TAPE, FRONT LH (BLACK) | FOR Y9H

68145-35F30-Y7L

Unavailable

4

TAPE, FRONT LH (RED) | FOR YD8

68145-35F30-Y7M

Unavailable

5

TAPE, REAR RH | FOR 0JW

68135-35F40-FS8

Unavailable

5

TAPE, REAR RH | FOR Y9H

68135-35F40-FP2

Unavailable

5

TAPE, REAR RH | FOR YD8

68135-35F40-M4L

Unavailable

6

TAPE, REAR LH | FOR 0JW

68145-35F40-FS8

$50.83

6

TAPE, REAR LH | FOR Y9H

68145-35F40-FP2

Unavailable

6

TAPE, REAR LH | FOR YD8

68145-35F40-M4L

Unavailable

7

SCREW, SIDE

09139-06029

$5.36

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER

09160-06047

$1.91

10

SPACER

09180-06283

$1.91

11

CUSHION, FRONT

47161-35F00

$4.78

12

CUSHION, SIDE

47161-35F10

$6.76

13

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

14

SCREW, UPPER

09139-06029

$5.36

15

SPACER

09180-06286

$2.50

16

CUSHION, UPPER

09320-10045

$3.76
