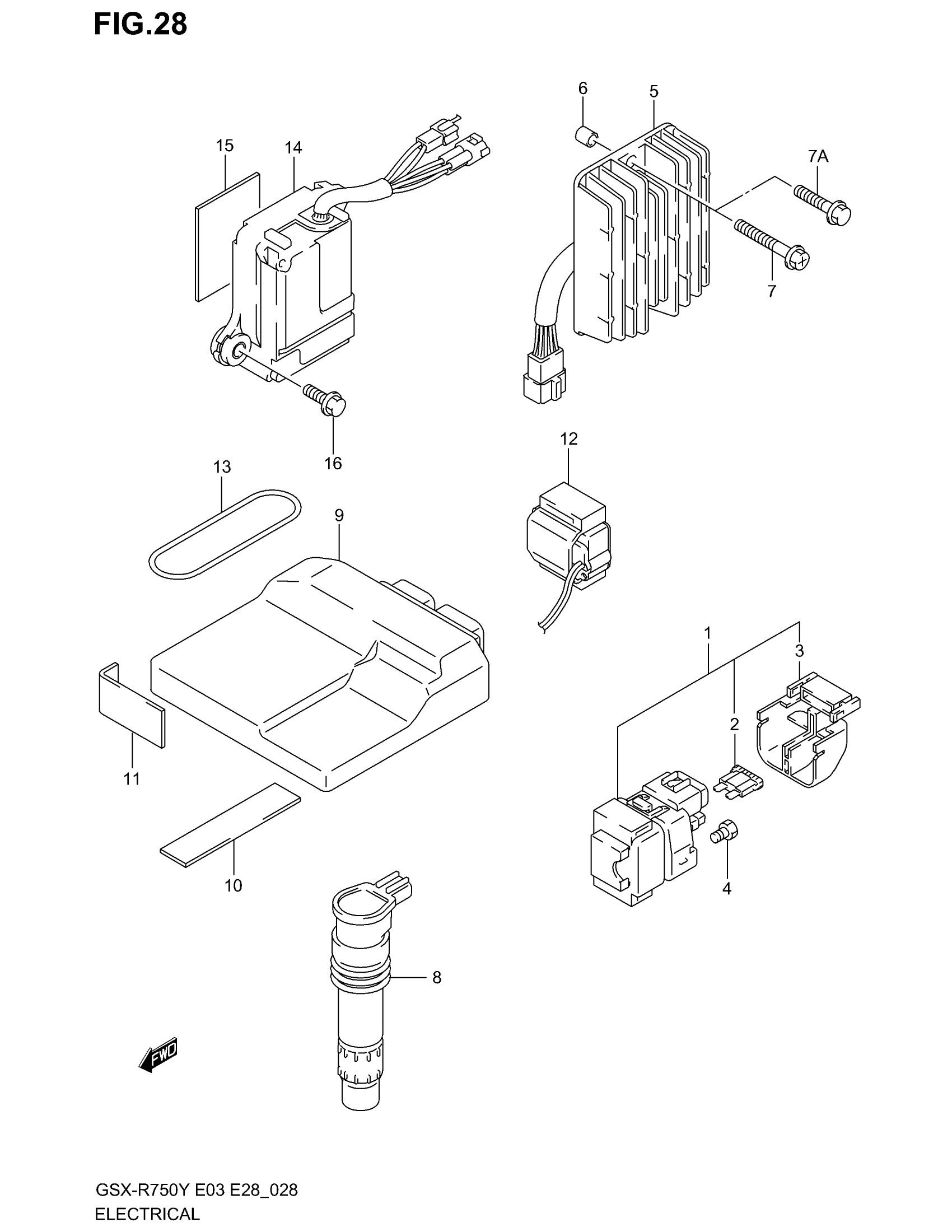

Suzuki GSX-R750 (2003) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-35F00

$97.31

2

FUSE (30A)

09481-30101

$2.26

3

COVER, STARTER

31861-26E00

$4.16

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY | MODEL Y/K1 This part replaces 32800-33E10.

32800-33E21

$263.17

5

RECTIFIER ASSY | MODEL K2/K3 This part replaces 32800-33E20.

32800-33E21

$263.17

6

SPACER (6.5X10X7) | MODEL Y/K1

09180-06283

$1.91

7

SCREW | MODEL Y/K1

02162-06353

Unavailable

7A

BOLT | MODEL K2/K3 This part replaces 01550-06203.

01550-0620A

$1.97

8

COIL ASSY, IGNITION | MODEL Y/K1

33410-35F00

Unavailable

8

COIL ASSY,IGNITION | MODEL K2/K3 This part replaces 33410-35F10.

33410-35F11

$142.65

9

CONTROL UNIT, FI | MODEL Y/K1

32920-35F30

Unavailable

9

CONTROL UNIT, FI | MODEL K2/K3

32920-35FD0

Unavailable

10

CUSHION, FI (80X80X2) | CUT AS REQUIRED PROFILE (20X90)

33652-07D00

$5.64

11

CUSHION, FI (170X95X3.0) | CUT AS REQUIRED PROFILE (30X25)

33651-37000

$4.48

12

SENSOR ASSY,FUE This part replaces 33960-02F00.

33960-02F01

$90.36

13

BAND, FI CONTROL UNIT

09280-70004

$3.85

14

ACTUATOR ASSY | MODEL Y/K1 This part replaces 33970-19D10.

33970-19D11

Unavailable

15

PROTECTOR, ACTUATOR | MODEL Y/K1 50X70X1.0

33972-35F00

Unavailable

16

BOLT (6X25) | MODEL Y/K1

09116-06025

$2.44
