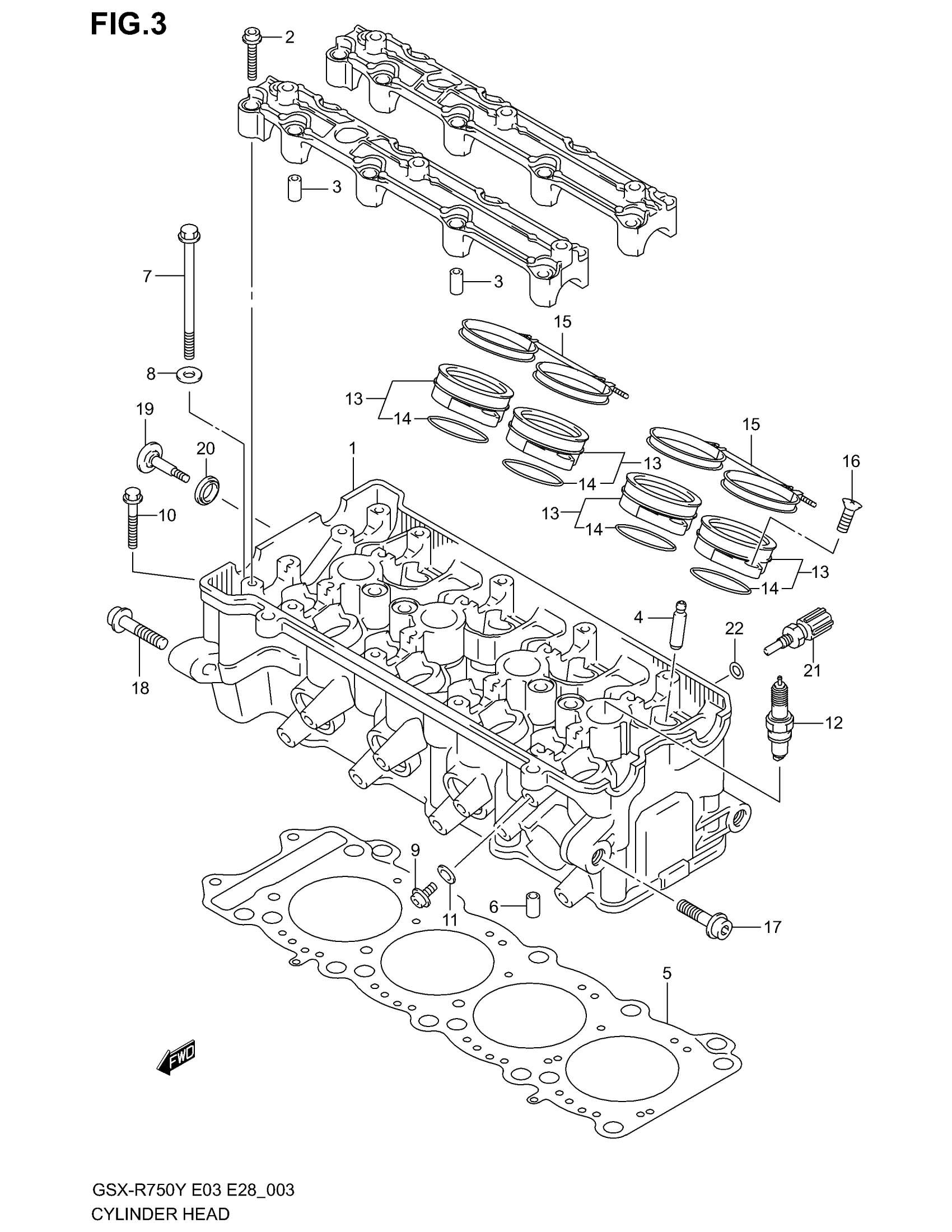

Suzuki GSX-R750 (2003) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-35F00

Unavailable

2

BOLT This part replaces 07120-06403.

07120-0640B

$3.37

3

PIN

09206-08007

$2.60

4

GUIDE, VALVE | OPT

11115-11D70

$40.73

5

GASKET, CYLINDER HEAD

11141-35F00

$89.92

6

PIN

04211-11169

$1.78

7

BOLT | MODEL Y/K1 This part replaces 09103-10312.

09103-10330

$7.81

7

BOLT | MODEL K2/K3

09103-10330

$7.81

8

WASHER

09160-10082

$1.61

9

BOLT, OIL GALLERY

09103-06222

$2.26

10

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

$3.70

11

GASKET

09168-06023

$2.35

12

PLUG SPARK (CR9E)

09482-00458

$6.47

12

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

12

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

12

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

12

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

12

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

13

PIPE ASSY,INTAK | Includes Item(s) 14 This part replaces 13101-35F00.

13101-35F01

$41.39

14

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

15

CLAMP | MODEL Y/K1 This part replaces 13170-35F00.

13170-35F01

$29.83

15

CLAMP | MODEL K2/K3

13170-35F01

$29.83

16

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

17

BOLT, ENG MOUNTING HEAD (10X45)

09106-10069

$4.24

18

BOLT, ENG MOUNTING HEAD (10X55)

09106-10070

$4.24

19

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.89

20

WASHER

11191-13E00

$4.54

21

SENSOR, WATER TEMPERATURE | MODEL Y/K1/K2 (ECTS)

13650-51G10

$106.62

21

SENSOR, WATER TEMPERATURE | MODEL K2 (ECTS)

13650-10G00

$87.24

22

GASKET

09168-12017

$1.95
