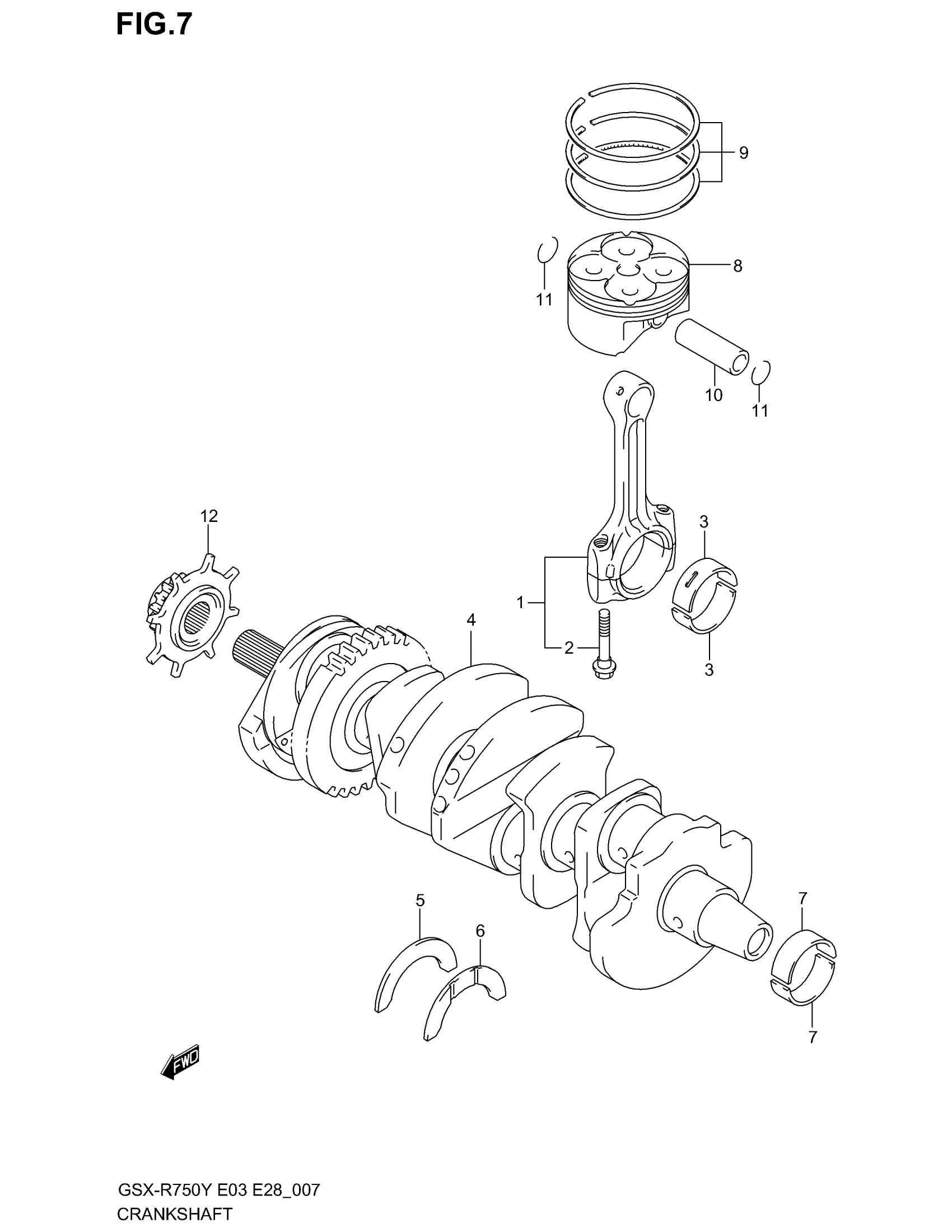

Suzuki GSX-R750 (2003) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-35F00

$229.13

2

BOLT

12163-35F00

$10.23

3

BEARING, CRANK PIN (GREEN) | *SEE NOTE

12164-35F00-0A0

$12.33

3

BEARING, CRANK PIN (BLACK) | *SEE NOTE

12164-35F00-0B0

$12.33

3

BEARING, CRANK PIN (BROWN) | *SEE NOTE

12164-35F00-0C0

$12.10

3

BEARING, CRANK PIN (YELLOW) | *SEE NOTE

12164-35F00-0D0

$13.97

4

CRANKSHAFT SET | MODEL Y/K1/K2 This part replaces 12000-35820.

12000-35830

Unavailable

4

CRANKSHAFT SET | MODEL K3; Includes Item(s) 5 - 6

12000-35830

Unavailable

5

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

6

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

6

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

6

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

6

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

6

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

6

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

7

BEARING, CRANKSHAFT (GREEN) | *SEE NOTE

12229-35F00-0A0

$20.85

7

BEARING, CRANKSHAFT (BLACK) | *SEE NOTE

12229-35F00-0B0

$20.10

7

BEARING, CRANKSHAFT (BROWN) | *SEE NOTE

12229-35F00-0C0

$17.09

7

BEARING, CRANKSHAFT (YELLOW) | *SEE NOTE

12229-35F00-0D0

$20.85

8

PISTON

12111-35F00-0F0

Unavailable

9

RING SET, PISTON

12140-35F00

$69.10

10

PIN, PISTON

12151-35F00

$18.18

11

CIRCLIP

09381-15001

$1.49

12

SPROCKET, CAM CHAIN

12731-35F00

Unavailable
