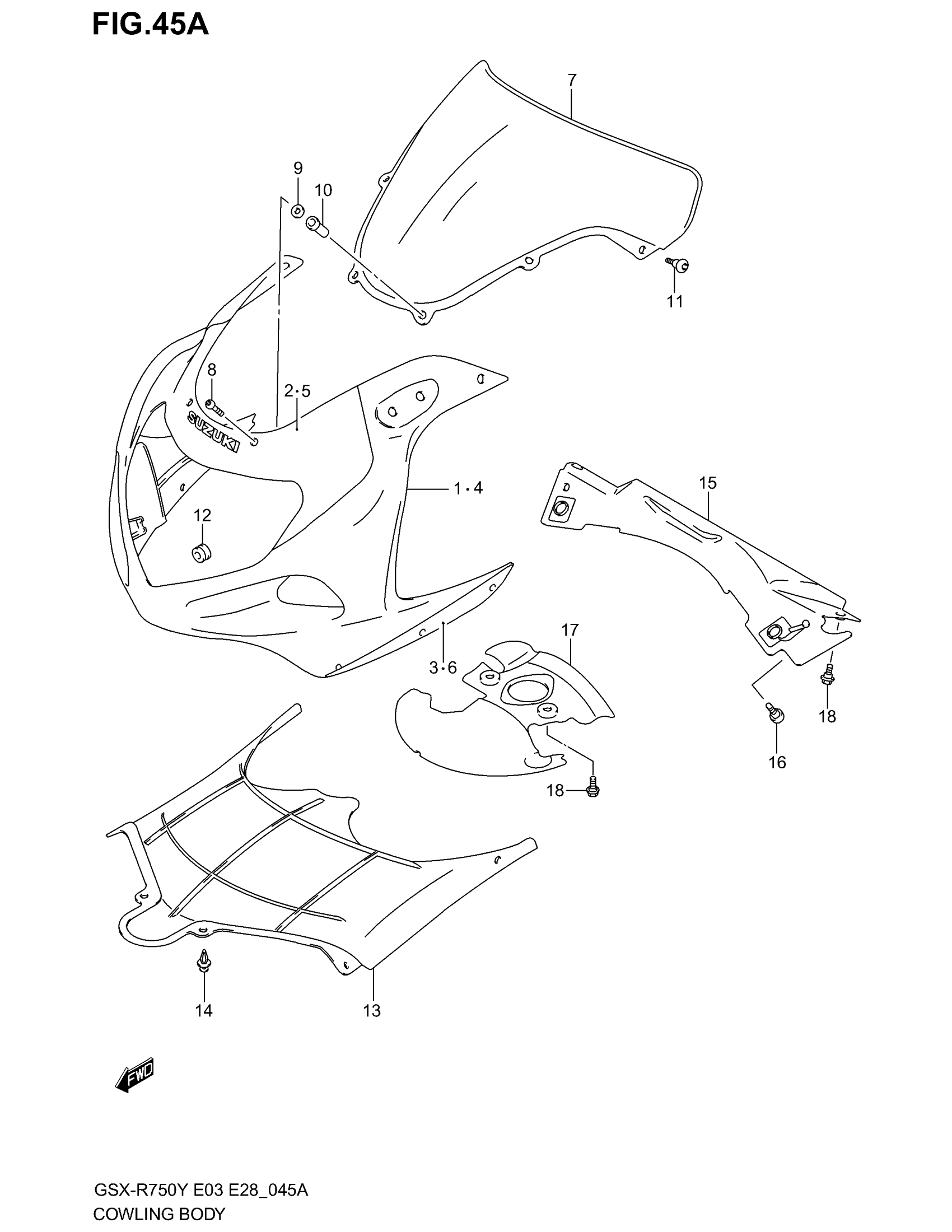

Suzuki GSX-R750 (2003) COWLING BODY (MODEL K1) Diagram

#

Description
Price

1

COWLING,BODY | FOR L99 This part replaces 94410-35F20-1LF.

94410-35F21-1LF

Unavailable

1

COWLING, BODY (BLACK) | FOR BP9; Includes Item(s) 2 - 3

94410-35F20-Y7L

Unavailable

2

TAPE,COWL BODY | FOR 1LF This part replaces 68275-35F20-3SP.

68275-35F21-3SP

$81.17

2

TAPE, FRONT | FOR Y7L

68275-35F20-BP9

Unavailable

3

TAPE SET, SIDE (WHITE) | FOR 1LF

68280-39F00-0JW

Unavailable

3

TAPE SET, SIDE (YELLOW) | FOR Y7L

68280-39F00-Y9H

Unavailable

4

COWLING, BODY (BLACK) | FOR FN9; Includes Item(s) 5 - 6

94410-35F20-YFX

Unavailable

5

TAPE, FRONT | FOR YFX

68275-35F20-FN9

Unavailable

6

TAPE SET, SIDE (SILVER) | FOR YFX

68280-39F00-YD8

Unavailable

7

WINDSCREEN

94611-35F00

$292.62

8

SCREW

09139-05025

$2.05

9

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

10

NUT

09159-05019

$7.14

11

SCREW, REAR

09139-05055

$4.26

12

CUSHION

09320-08028

$3.04

13

COVER, BODY COWL

94419-35F00

$47.30

14

CLIP, LID (BLACK)

09409-06314-5PK

$2.78

15

COVER, COWL FRONT LOWER

94457-35F00

Unavailable

16

BOLT, NO.1

09139-05054

$4.24

17

COVER, BRACKET

94458-35F00

Unavailable

18

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60
