2003 Suzuki GSX-R750 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2003 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

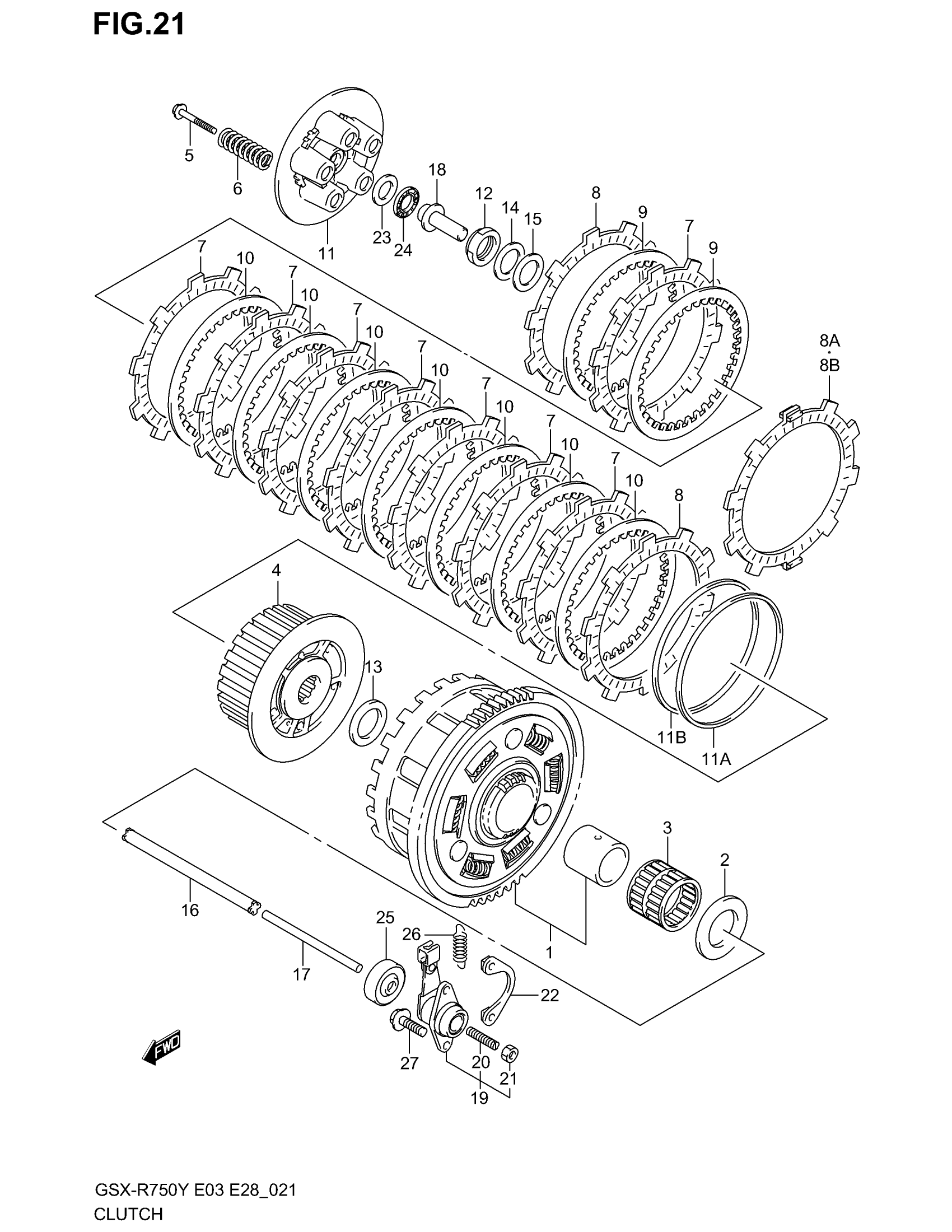

2003 Suzuki GSX-R750 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

WASHER (25X54X2.4)

09160-25073

1

$15.75

In stock

3

BEARING (35X40X29.8)

09263-35036

1

$31.32

In stock

4

HUB, CLUTCH SLEEVE

21410-35F00

1

$123.68

In stock

5

BOLT, CLUTCH SPRING

21412-35F00

5

$3.49

In stock

6

SPRING, CLUTCH

21413-35F00

5

$7.56

In stock

7

8

$23.48

In stock

8

2

$23.38

In stock

8

1

$23.38

In stock

8B

1

$67.70

In stock

9

2

$10.50

In stock

10

7

$11.25

In stock

11

DISC, CLUTCH PRESSURE

21462-35F00

1

$69.27

In stock

11A

SEAT, WAVE WASHER

21471-31E20

1

$14.56

In stock

11B

1

$21.28

In stock

12

1

$12.79

In stock

13

1

$11.40

In stock

14

1

$3.66

In stock

15

1

$3.13

In stock

16

ROD, CLUTCH PUSH RH

23110-27A00

1

$21.62

In stock

17

ROD, CLUTCH PUSH LH

23111-35F00

1

$13.27

In stock

18

1

$24.53

In stock

20

SCREW (6X25)

09134-06010

1

$3.02

In stock

21

.NUT

08310-00067

1

$1.82

In stock

22

NUT, CLUTCH RLSE SCREW | MODEL Y/K1

23240-35F00

1
Out of stock

23

1

$3.77

In stock

24

1

$8.03

In stock

25

1

$7.99

In stock

26

1

$3.29

In stock

27

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock
