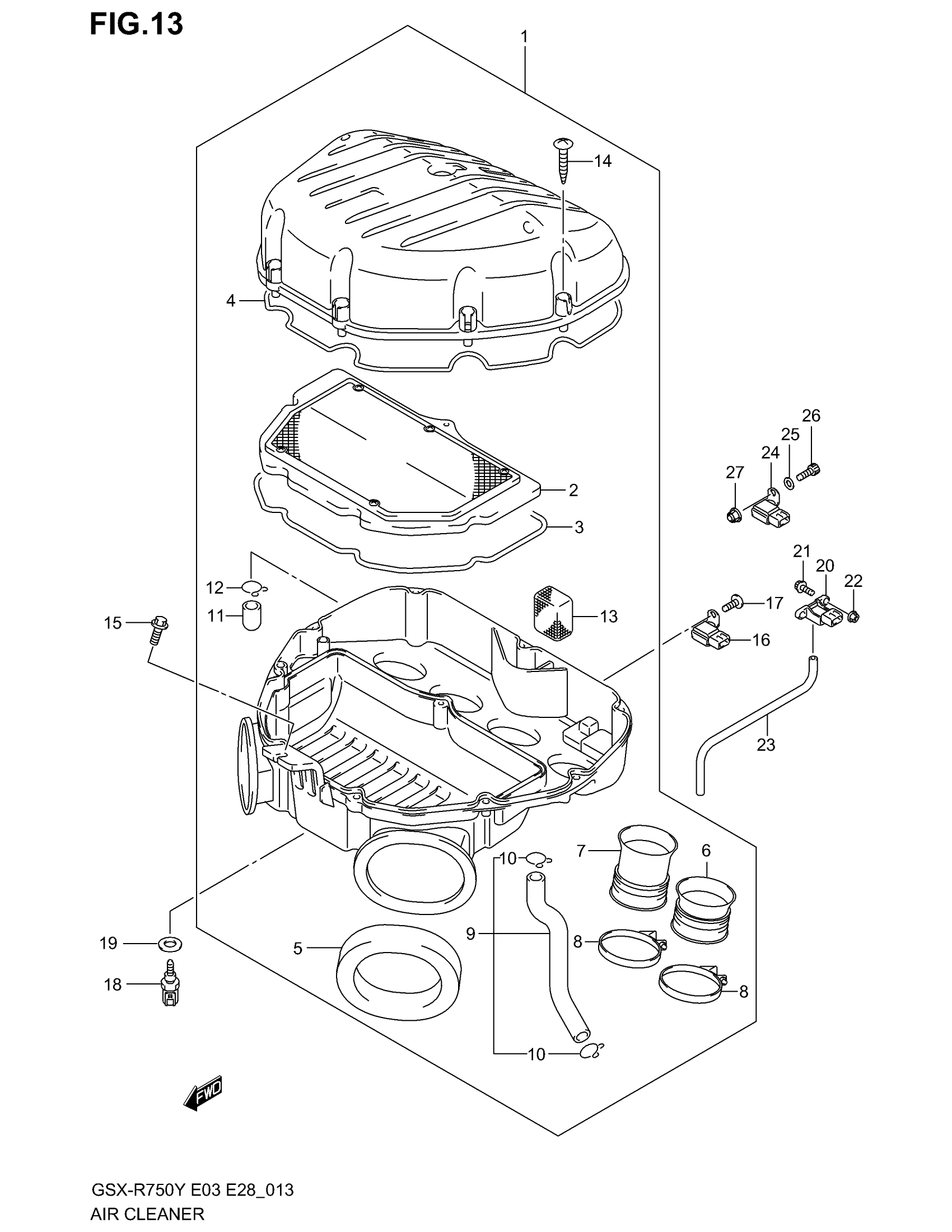

Suzuki GSX-R750 (2003) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-35F00

Unavailable

2

FILTER ASSY

13780-35F00

$38.34

3

GASKET, CASE

13756-35F00

$4.97

4

GASKET, CAP

13746-35F00

$7.82

5

.CUSHION, DUCT | MODEL Y This part replaces 13736-24F00.

13736-01H00

$9.78

5

.CUSHION, DUCT | MODEL K1/K2/K3 This part replaces 13736-24F01.

13736-01H00

$9.78

6

TUBE, OUTLET, LH/RH

13881-35F00

Unavailable

7

TUBE, OUTLET, ML/MR

13882-35F00

Unavailable

8

..CLAMP

09402-60208

$5.11

9

TUBE,BREATHER This part replaces 13850-35F00.

13850-35F01

Unavailable

10

CLIP

09401-14301

$2.35

11

.PLUG

13859-41B10

$7.38

12

CLIP

09401-14301

$2.35

13

FILTER, BREATHER

13788-24F00

$9.73

14

.SCREW

13831-35F00

$2.38

15

BOLT

09116-06130

$2.28

16

SENSOR, BOOST | (IAPS)

15620-35F00

Unavailable

17

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

18

SENSOR, AIR TEMPERATURE | (IATS)

13650-61B00

$109.08

19

GASKET

09168-12017

$1.95

20

SENSOR, AIR PRESSURE | MODEL Y (APS)

18590-81A00

$382.13

20

SENSOR, AIR PRESSURE | MODEL K1 (APS)

18590-80C50

Unavailable

21

BOLT, EXHAUST COVER | MODEL Y/K1 This part replaces 07120-06163.

07120-0616B

$2.45

22

NUT | MODEL Y/K1 This part replaces 08316-10063.

08316-1006B

$2.50

23

HOSE, AIR PRESSURE SENSOR | MODEL Y/K1

18597-35F00

Unavailable

24

SENSOR, AIR PRESSURE | MODEL K2/K3

15620-35F00

Unavailable

25

WASHER | MODEL K2/K3

09160-06077

$1.91

26

BOLT | MODEL K2/K3 This part replaces 07130-06163.

07130-0616B

$2.39

27

NUT | MODEL K2/K3 This part replaces 08319-31063.

08319-3106A

$2.03
