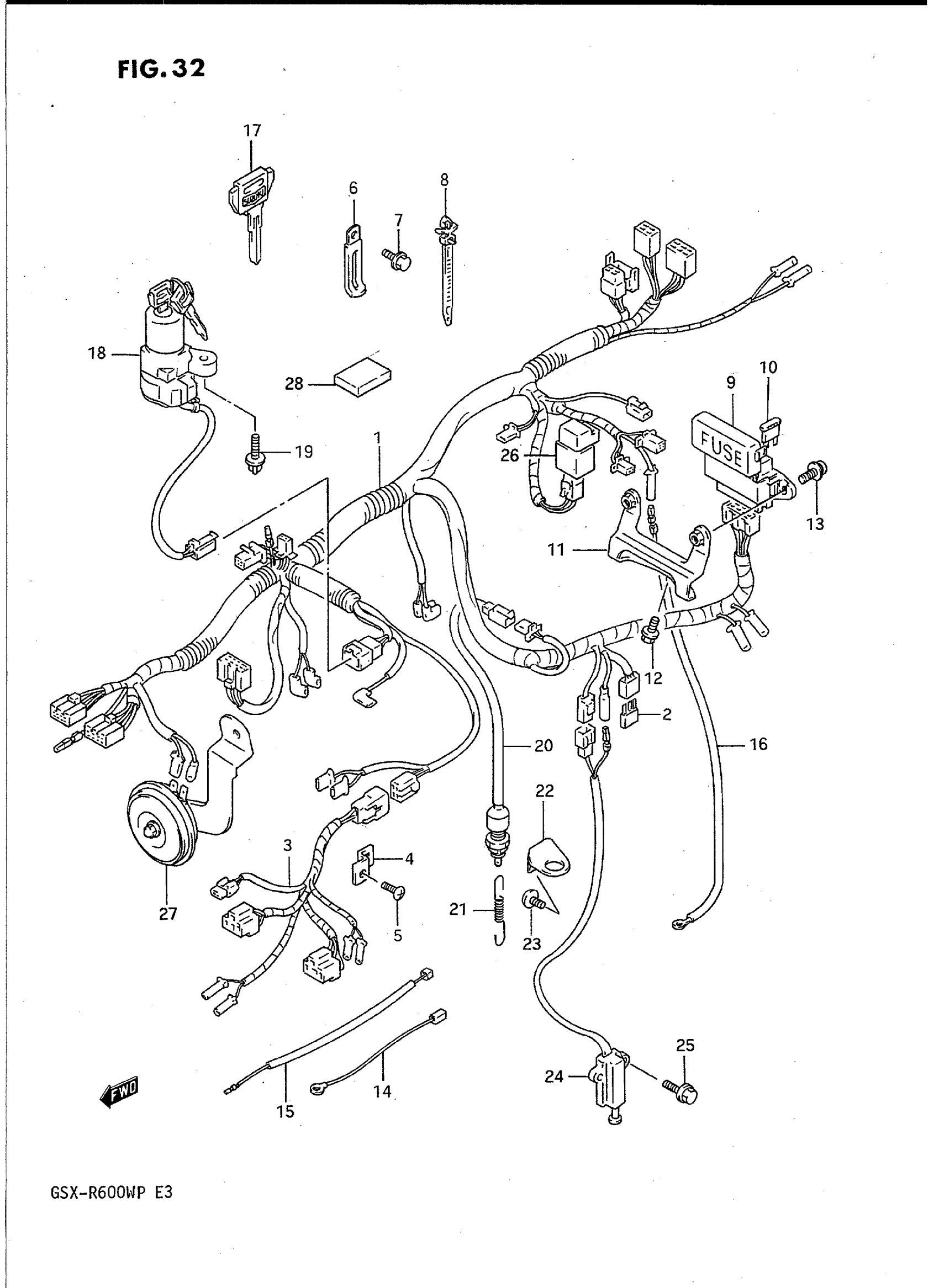

Suzuki GSX-R600WP (1993) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 36610-17E10.

36610-17E13

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

WIRE,HEADLAMP L This part replaces 36620-17E10.

36856-18D01

Unavailable

4

HOLDER, CUPLER NO.1

36687-17E00

Unavailable

4

HOLDER, CUPLER NO.1

36687-17E10

Unavailable

5

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

6

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

6

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

6

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

6

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.74

6

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

6

CLAMP

09404-06425

Unavailable

6

CLAMP This part replaces 09404-08403.

09404-08420

$3.16

6

CLAMP (L:82) This part replaces 09404-10403.

09404-10205

Unavailable

7

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

8

CLAMP

09407-11402

$1.80

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP

09407-25401

$4.66

9

FUSE BOX ASSY | Includes Item(s) 10 - 10

36740-17D00

Unavailable

10

FUSE

09481-10101

$2.07

10

FUSE

09481-20101

$2.12

11

BRACKET, FUSE BOX

47410-17E00

Unavailable

12

BOLT This part replaces 01517-06128.

01550-06127

$2.30

13

SCREW This part replaces 02112-76165.

02112-7616A

$2.12

14

WIRE, HEADLAMP LEAD

36851-02900

Unavailable

15

WIRE, WARTER GAUGE LEAD

36851-17E00

Unavailable

16

WIRE,OIL PRESSU This part replaces 36853-17E00.

36851-46E01

Unavailable

17

KEY, BLANK | OPT This part replaces 37146-03A80.

37146-26D10

$49.70

18

LOCK ASSY, STEERING This part replaces 37100-33D00.

37100-26D03

$194.77

19

BOLT

09139-06026

$2.50

20

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

21

SPRING

09443-06012

$3.16

22

BRACKET, SWITCH

43250-33C00

Unavailable

23

BOLT

09139-06027

$2.16

24

SWITCH ASSY,SID This part replaces 37840-48B21.

37840-12X52

$69.30

25

BOLT This part replaces 01517-06204.

01550-0620A

$1.97

26

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

27

HORN ASSY, LOW This part replaces 38502-17E00.

38502-17E12

Unavailable

28

PROTECTOR

36920-10B00

Unavailable
