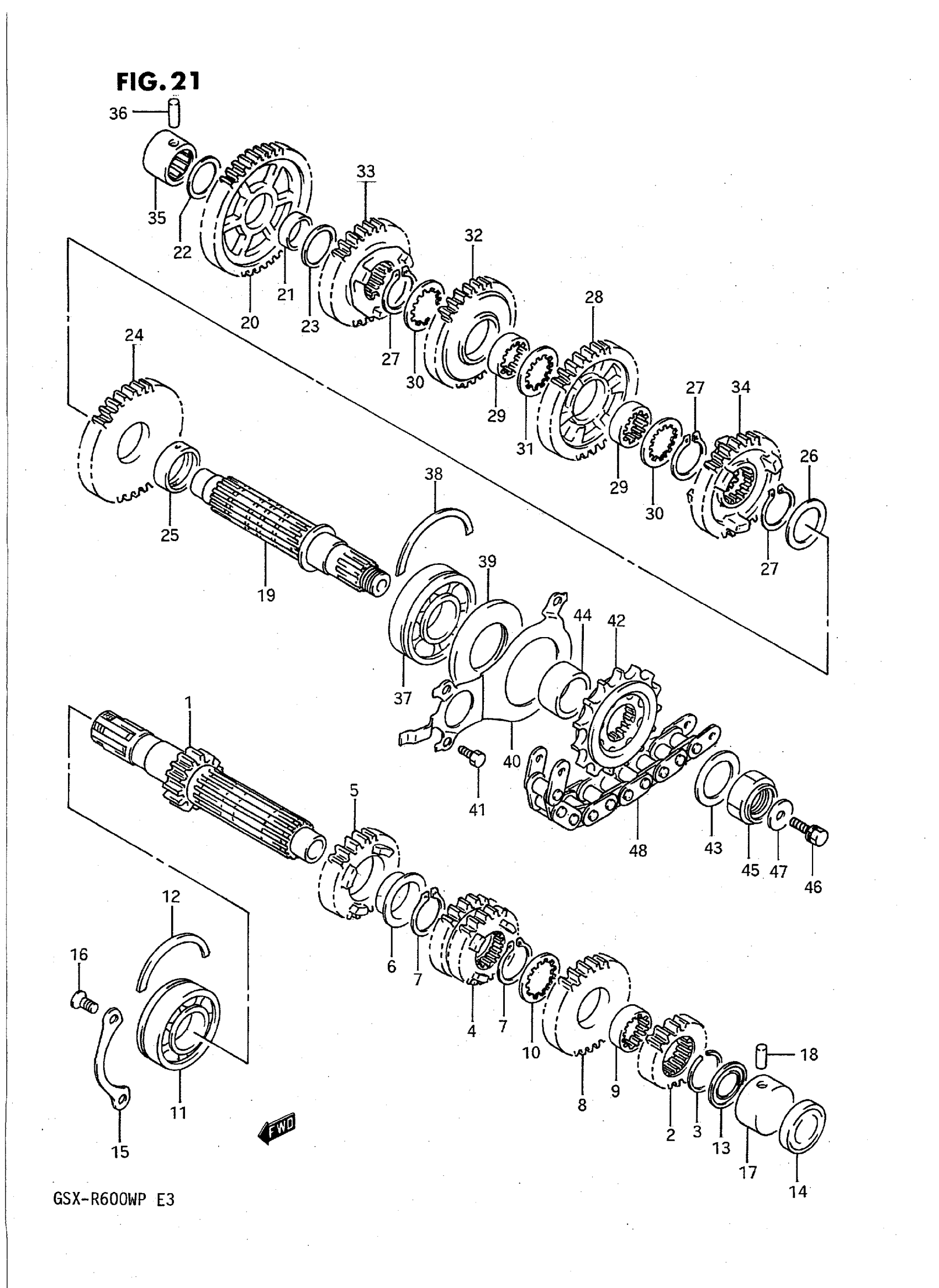

Suzuki GSX-R600WP (1993) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:15) This part replaces 24121-17E01.

24120-17E20

Unavailable

2

GEAR, 2ND DRIVE (NT:17)

24221-17E00

Unavailable

3

CIRCLIP

09380-27004

$3.70

4

GEAR, 3/4TH DRIVE (NT:20/21)

24231-17E00

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 24251-17E01.

24251-17E11

Unavailable

6

BUSH

09301-28001

$19.93

7

CIRCLIP

09380-27001

$2.38

8

MAR. 6TH DRIVE (NT:25) This part replaces 24261-17E01.

24261-17E10

Unavailable

9

BUSH, 3RD DRIVEN This part replaces 24262-17E00.

24262-17E01

$38.62

10

WASHER

09167-27001

$3.63

11

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

12

C RING This part replaces 09390-62006.

09390-62012

$7.31

13

OIL SEAL

09285-20006

$6.51

14

CAP, COUNTER SHAFT

23116-27A30

Unavailable

15

HOLDER, BEARING

24741-27A00

$10.07

16

SCREW

02122-06167

$1.49

17

BEARING, LH

09263-20069

$52.12

18

PIN

04221-07129

$1.86

19

SHAFT, DRIVE This part replaces 24131-17E01.

24131-17E10

Unavailable

20

GEAR, 1ST DRIVEN (NT:43)

24311-17E01

Unavailable

21

BUSH

09300-22008

$14.82

22

WASHER, RH

08211-20341

$2.80

23

WASHER, LH

08211-22341

$3.85

24

GEAR,2ND DRIVEN This part replaces 24321-17E02-0A0.

24321-17E02

$106.12

25

BUSH This part replaces 09300-28003-0A0.

09300-28003

Unavailable

26

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

$4.77

27

CIRCLIP

09380-27001

$2.38

28

GEAR, 3RD DRIVEN (NT:33)

24331-17E02

Unavailable

29

BUSH

24332-17E02

Unavailable

30

WASHER

09167-27001

$3.63

31

WASHER

09167-27002

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 24341-17E02.

24341-17E04

Unavailable

33

GEAR, 5TH DRIVEN (NT:29)

24351-17E02

Unavailable

34

GEAR, 6TH DRIVEN (NT:28)

24361-17E10

Unavailable

35

BEARING, RH

09263-20040

$55.20

36

PIN (L:20)

04221-07209

$2.30

37

BEARING, LH

09262-28025

$150.62

38

C RING

09390-70001

$9.77

39

OIL SEAL (36X70X6)

09283-36008

$21.28

40

PLATE

24751-17E00

Unavailable

41

BOLT This part replaces 01107-06107.

01500-06107

$2.06

42

SPROCKET, ENGINE (NT:14) This part replaces 27511-27A11.

27510-21E00

Unavailable

43

WASHER (25X40X1.5) This part replaces 08211-25402.

09181-25268

$3.16

44

SPACER (25X36X17.7)

09180-25098

Unavailable

45

NUT

09159-20004

$15.67

46

BOLT This part replaces 01147-06168.

01570-06167

$3.03

47

WASHER

08212-06222

$1.78

48

CHAIN ASSY (RK50GSVZ3,108L) This part replaces 27600-17C20-108.

27600-24F20-108

Unavailable
