Partiron

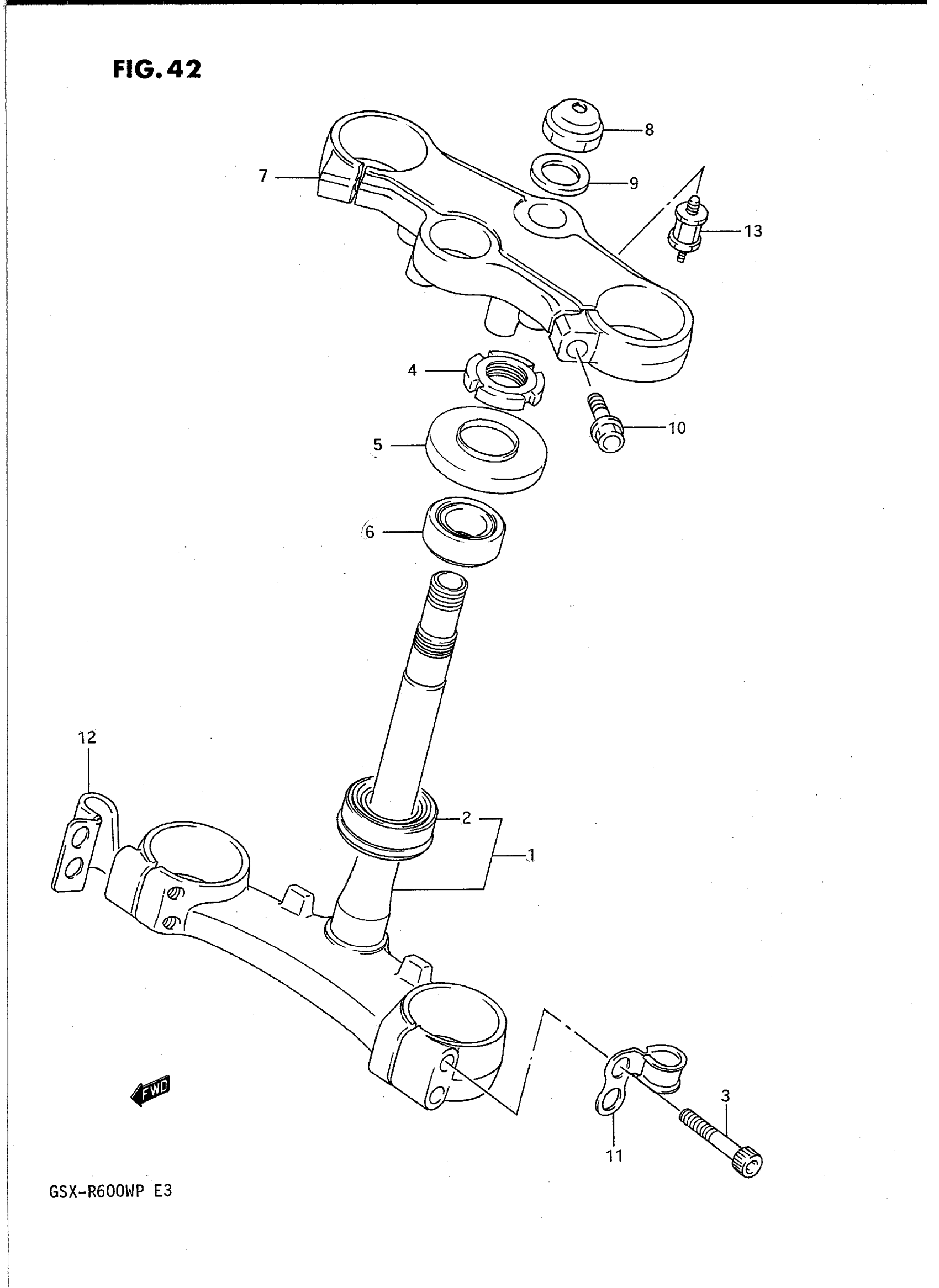

Suzuki GSX-R600WP (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-17E00

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT,10X45 This part replaces 09106-10022.

09106-10022-XC0

Unavailable

4

NUT, STEERING STEM

51631-28000

$17.37

5

DUST SEAL This part replaces 09285-34006.

09285-34013

$13.78

6

BEARING

09265-25008

Unavailable

7

BRACKET, UPPER

51311-17E00

Unavailable

8

NUT This part replaces 51353-17C00.

51353-28A10

$31.72

9

WASHER, STEM This part replaces 51354-17C00.

51356-24B01

$5.38

10

BOLT (10X40) This part replaces 01517-10408.

01550-10407

$4.68

11

CLAMP, METER CABLE

34938-17E10

Unavailable

12

CLAMP, CLUTCH CABLE

58285-17C00

Unavailable

13

CUSHION, METER

17788-10D00

Unavailable
