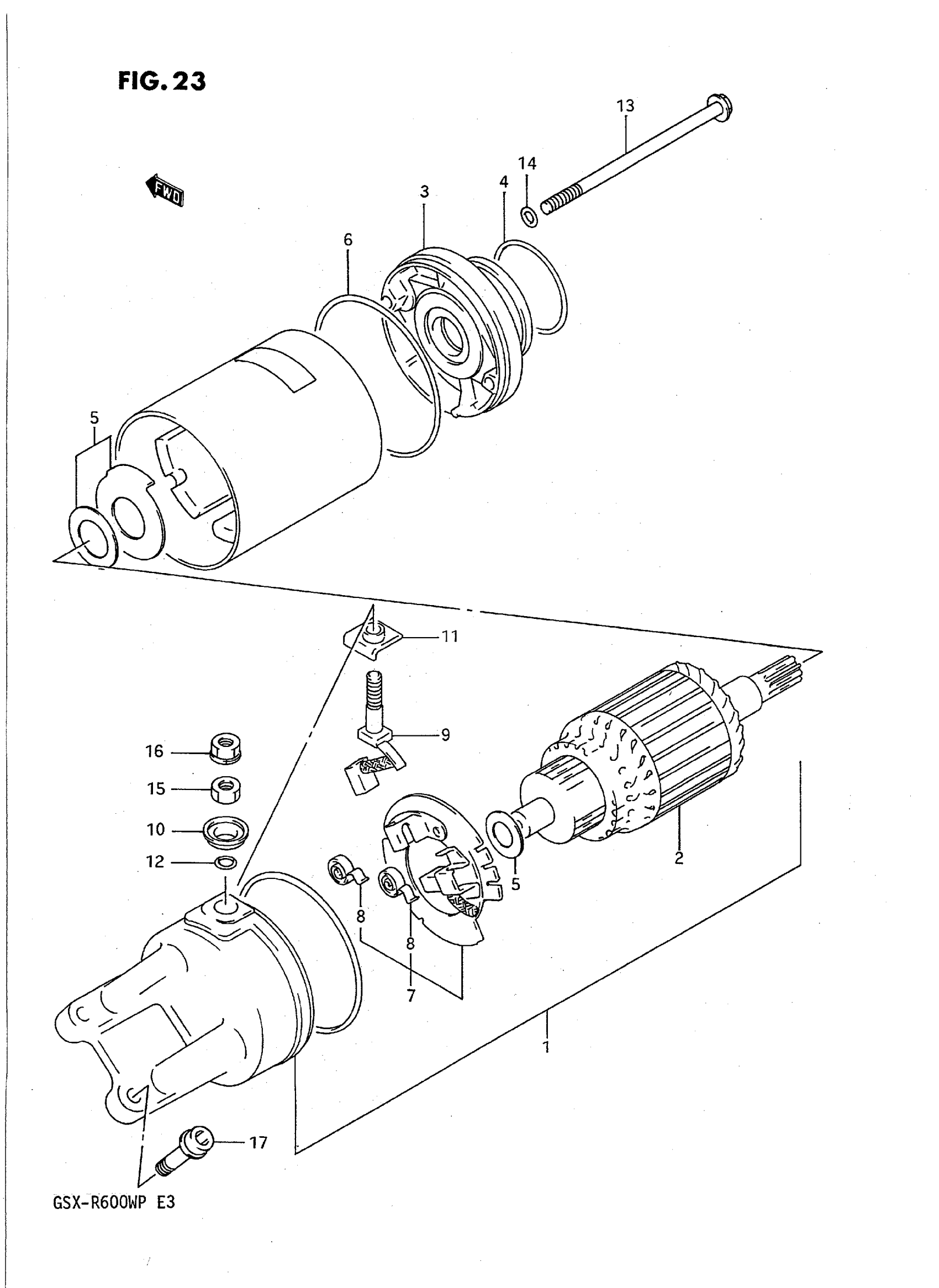

Suzuki GSX-R600WP (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR, STARTING | Includes Item(s) 2 - 14 This part replaces 31100-17E00.

31100-46E00

Unavailable

2

ARMATURE

31310-17E00

Unavailable

3

HOUSING

31150-17E00

Unavailable

4

O RING

31156-48B00

$12.02

5

SHIM SET

31170-43400

Unavailable

6

O RING

31264-44110

$11.87

7

BRUSH HOLDER ASSY

31132-17E00

Unavailable

8

SPRING

31135-65010

$4.52

9

BRUSH

31130-38300

$18.43

10

BUSHING (A)

31172-38300

$6.55

11

BUSHING (B)

31171-38300

$8.93

12

O RING

31143-38300

$5.10

13

BOLT

31281-88C00

Unavailable

14

O RING

31156-38300

$4.52

15

.NUT This part replaces 08310-22067.

08310-00067

$2.13

16

NUT This part replaces 08361-35066.

08361-3506A

$1.80

17

BOLT This part replaces 07120-06258.

07120-06257

$3.05
