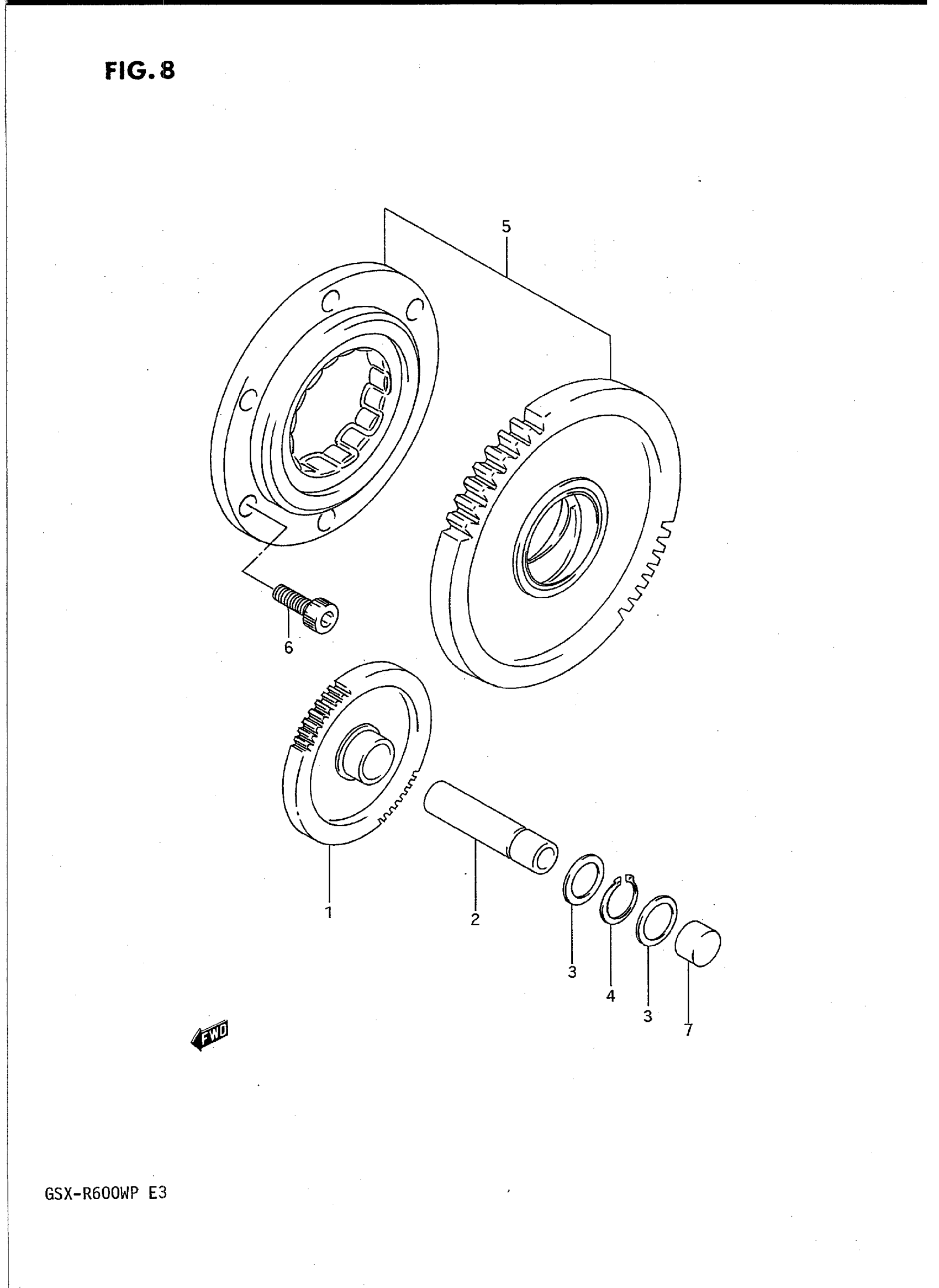

Suzuki GSX-R600WP (1993) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE (NT:12/56) This part replaces 12611-17E00.

12611-21E00

Unavailable

2

SHAFT, STARTER IDLE GEAR

12616-17E00

Unavailable

3

WASHER (12X18X0.5) This part replaces 08221-12185.

09181-12130

$2.06

4

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

5

CLUTCH SET, STARTER This part replaces 12600-17820.

12600-21811

Unavailable

6

BOLT This part replaces 07110-06166.

07130-0616B

$2.39

7

PLUG, STARTER IDLE SHAFT

09241-12006

Unavailable
