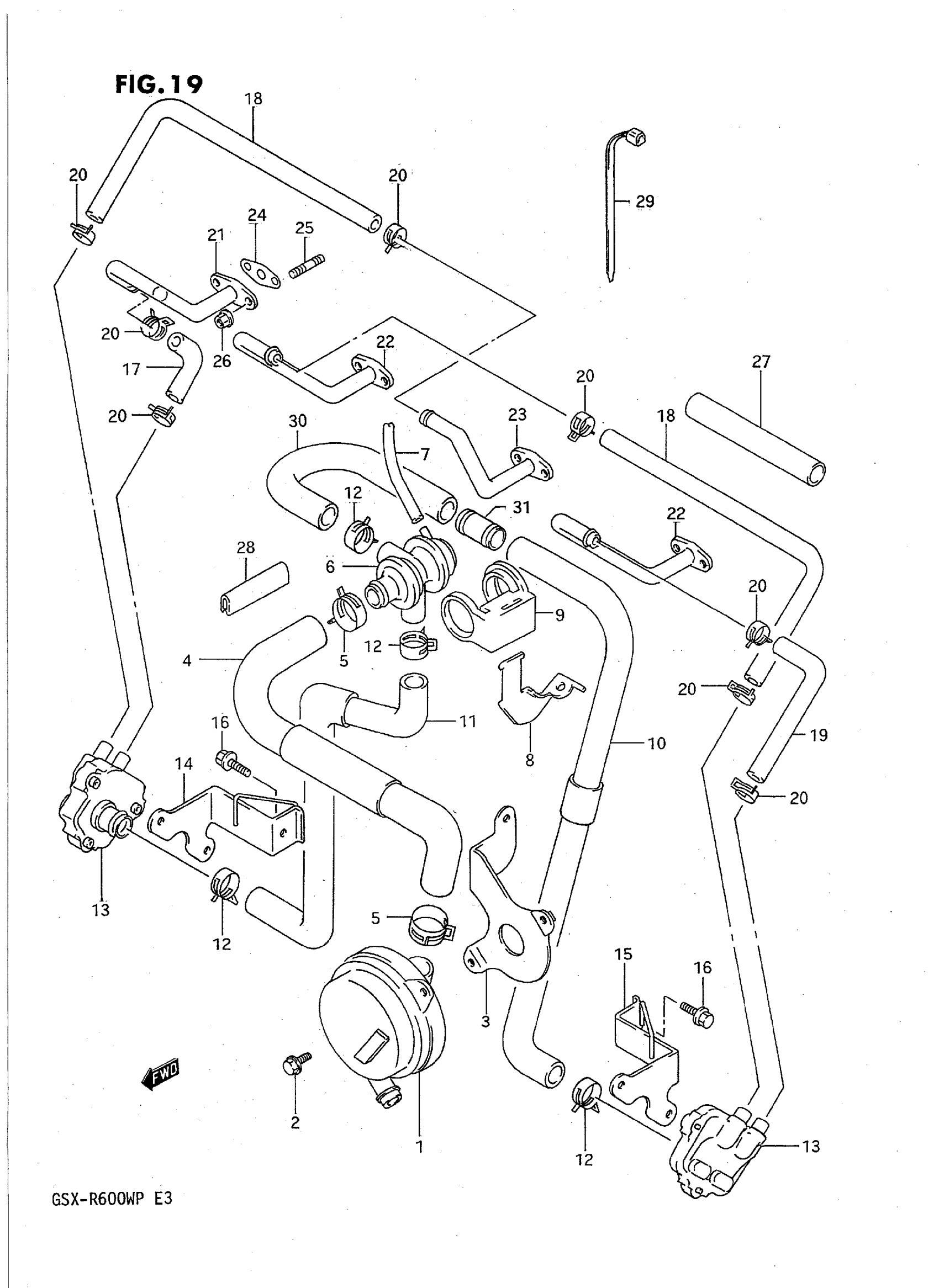

Suzuki GSX-R600WP (1993) SECOND AIR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL N This part replaces 18700-06B03.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL P This part replaces 18700-06B04.

18700-17C03

Unavailable

2

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

3

BRACKET, 2ND AIR CLEANER

18750-17E00

Unavailable

4

HOSE, 2ND AIR CLEANER

18550-17E00

Unavailable

5

CLIP

09401-26402

Unavailable

6

VALVE ASSY, AIR SWITCHING

18510-06B00

Unavailable

7

HOSE, 2ND AIR VALVE VACUUM This part replaces 09359-45852-300.

09359-45852-600

Unavailable

8

BRACKET, 2ND AIR VALVE

18741-17E00

Unavailable

9

CUSHION, 2ND AIR VALVE

18487-01D00

Unavailable

10

HOSE, 2ND AIR VALVE NO.1 | MODEL N This part replaces 18480-17E00.

18480-17E01

Unavailable

10

HOSE, 2ND AIR VALVE NO.1 | MODEL P

18480-17E01

Unavailable

11

HOSE, 2ND AIR VALVE NO.2 | MODEL N

18490-17E00

Unavailable

11

HOSE, 2ND AIR VALVE NO.2 | MODEL P

18490-17E01

Unavailable

12

CLIP

09401-21401

Unavailable

13

VALVE ASSY, 2ND AIR REED

18450-48B00

Unavailable

14

BRACKET, REED VALVE RH

18720-17E01

Unavailable

15

BRACKET. REED VALVE RH This part replaces 18730-17E01.

18730-17E02

Unavailable

16

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

17

HOSE, 2ND AIR NO.4 | MODEL N This part replaces 18448-17E00.

18448-17E01

Unavailable

17

HOSE, 2ND AIR NO.4 | MODEL P

18448-17E01

Unavailable

18

HOSE, 2ND AIR NO.2,3

18446-17E00

Unavailable

19

HOSE, 2ND AIR NO.1

18445-17E00

Unavailable

20

CLAMP This part replaces 09401-13408.

09401-13417

$2.26

21

PIPE, 2ND AIR NO.4 | MODEL N

18440-17E00

Unavailable

21

PIPE, 2ND AIR NO.4 | MODEL P

18440-17E01

Unavailable

22

PIPE, 2ND AIR NO.1 & 3 | MODEL N

18410-17E00

Unavailable

22

PIPE, 2ND AIR NO.1 & 3 | MODEL P

18410-17E01

Unavailable

23

PIPE, 2ND AIR NO.2

18420-17E00

Unavailable

24

GASKET 2ND AIR PIPE This part replaces 18441-45C00.

18441-45C01

$7.05

25

BOLT,STUD This part replaces 01421-06125.

01421-0612A

Unavailable

26

NUT This part replaces 08316-16064.

08316-1006B

$2.50

27

TUBE, FUEL HOSE This part replaces 44311-38B02.

44311-17E01

$17.72

28

MOLDING, HOSE | L:110->70

44552-24B00

$14.08

29

CLAMP

09407-18402

$2.19

30

HOSE, 2ND AIR VALVE NO.3 | MODEL P

18485-17E00

Unavailable

31

UNION, 2ND AIR VALVE HOSE | MODEL P

18432-17E00

Unavailable
