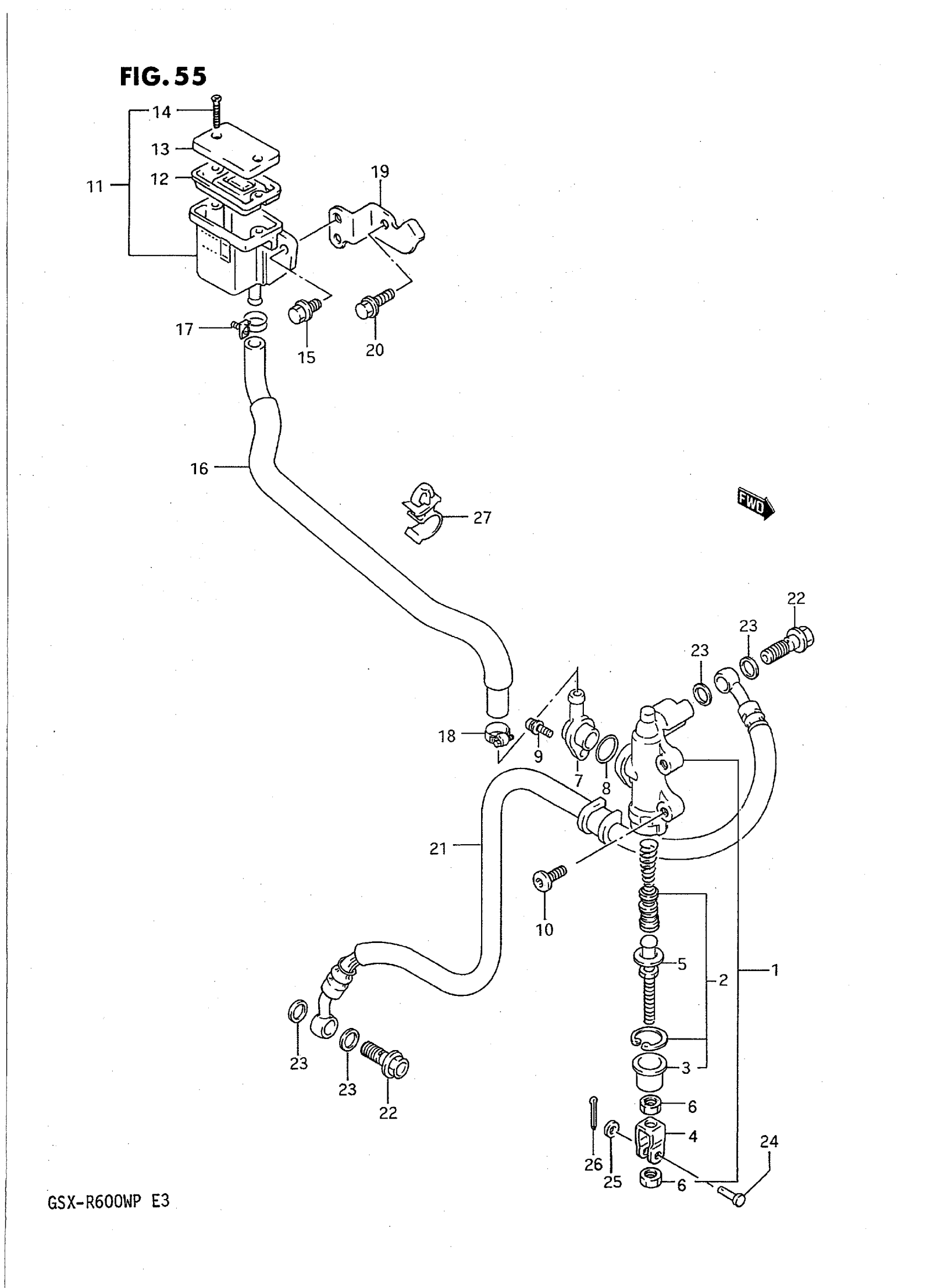

Suzuki GSX-R600WP (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-17E00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-17E00

Unavailable

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

10

BOLT (8X22)

09139-08009

Unavailable

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-24A01

Unavailable

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT This part replaces 01517-06128.

01550-06127

$2.30

16

HOSE, RESERVOIR TANK

69731-17E00

Unavailable

17

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

18

CLAMP, LOWER This part replaces 09402-15502.

09402-17511

Unavailable

19

PLATE, RESERVOIR TANK

69750-17E00

Unavailable

20

BOLT This part replaces 01517-06207.

01550-06207

$2.30

21

HOSE, REAR BRAKE | MODEL N

69480-17E00

Unavailable

21

HOSE, REAR BRAKE | MODEL P

69480-17E10

Unavailable

22

BOLT

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

25

WASHER This part replaces 08322-21067.

08322-01067

$2.13

26

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

27

GUIDE, RESERVOIR TANK HOSE

09403-16307

$2.53
