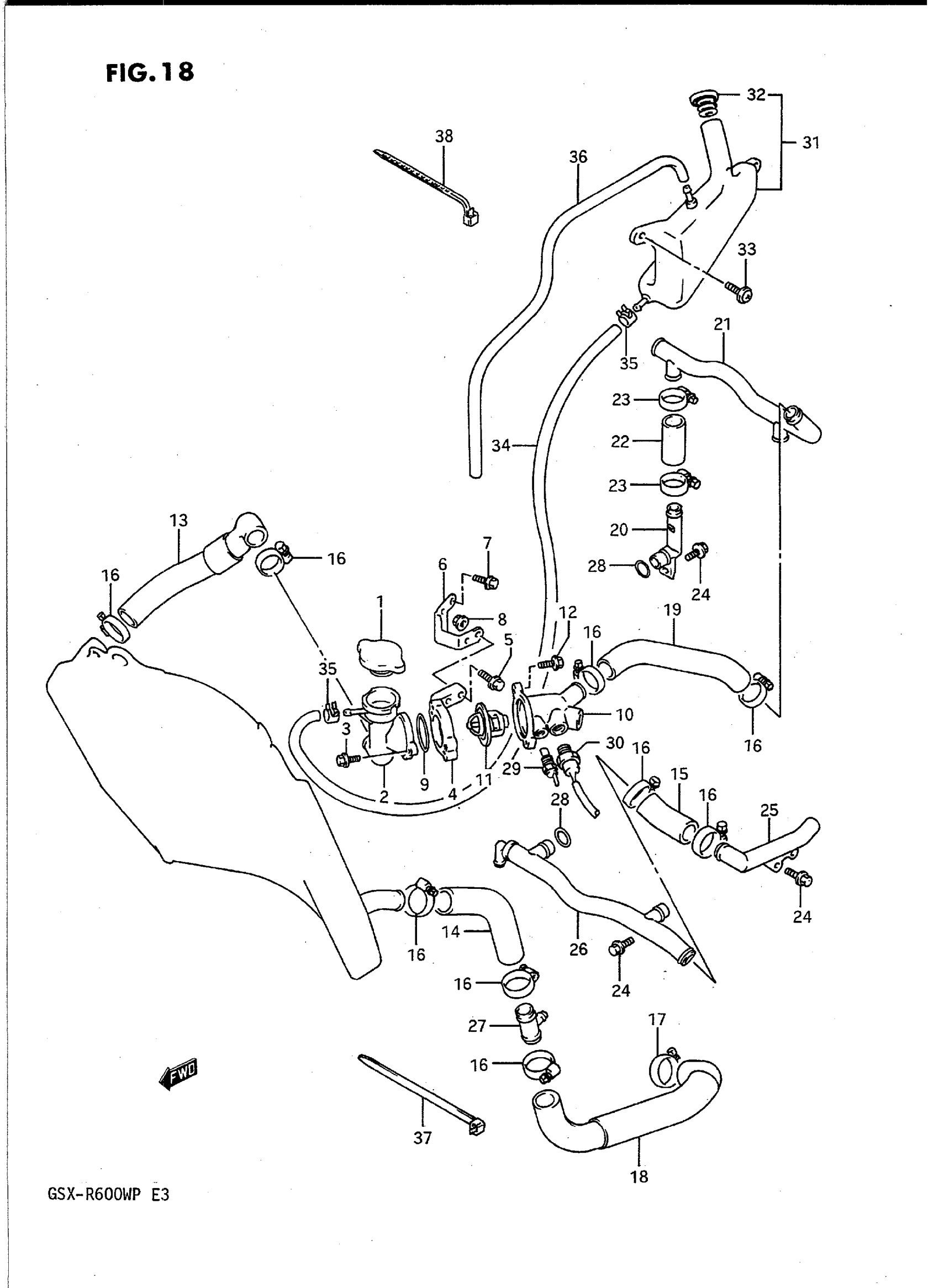

Suzuki GSX-R600WP (1993) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

2

CONDUCTION, RADIATOR

17791-32C00

Unavailable

3

BOLT This part replaces 01517-06167.

01550-06167

$2.30

4

BRACKET, CONDUCTION

17792-32C01

Unavailable

5

BOLT This part replaces 01517-06207.

01550-06207

$2.30

6

BRACKET, CONDUCTION BRACKET

17793-17E00

Unavailable

7

BOLT This part replaces 01517-06167.

01550-06167

$2.30

8

NUT This part replaces 09159-06017.

08319-31067

$2.03

9

O RING (D:2.4,ID:43.2)

09280-44005

$3.72

10

CONNECTOR, THERMOSTAT INLET

17662-17E00

Unavailable

11

THERMOSTAT,WATE This part replaces 17670-32C01.

17670-32C02

$36.31

12

BOLT This part replaces 01517-06207.

01550-06207

$2.30

13

HOSE, RADIATOR INLET This part replaces 17857-17E00.

17857-17E01

Unavailable

14

HOSE, RADIATOR OUTLET

17852-17E00

Unavailable

15

HOSE, CYLINDER INLET JOINT This part replaces 17855-17E00.

17858-17E50

Unavailable

16

CLAMP This part replaces 09402-30502.

09402-32511

$10.86

17

CLAMP This part replaces 09402-33502.

09402-38511

$11.67

18

HOSE, WATER PUMP INLET

17853-17E00

Unavailable

19

HOSE, HEAD OUTLET

17856-17E00

Unavailable

20

PIPE, HEAD OUTLET

17880-17E00

Unavailable

21

PIPE, HEAD OUTLET NO.2 This part replaces 17840-17E00.

17840-17E10

Unavailable

22

HOSE, CYLINDER JOINT This part replaces 17859-17E00.

17851-01A00

$22.10

23

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

24

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

25

PIPE, CYLINDER SIDE

17860-17E00

Unavailable

26

PIPE, CYLINDER INLET

17870-17E00

Unavailable

27

PIPE, WATER HOSE JOINT This part replaces 17890-17E00.

17890-17E01

Unavailable

28

O RING (D:3.2,ID:17.8)

09280-18009

$5.83

29

SENDING UNIT, WATER TEMP | MODEL N This part replaces 34850-82001.

34850-50A00

$82.87

29

SENDING UNIT, WATER TEMP | MODEL P This part replaces 34850-82002.

34850-50A00

$82.87

30

SWITCH, RADIATOR FAN This part replaces 17680-45D00.

17680-48E00

$119.72

31

TANK ASSY, RESERVOIR

17910-17E10

Unavailable

31

TANK ASSY, RESERVOIR | CALIFORNIA ONLY; Includes Item(s) 32

17910-17E01

Unavailable

32

CAP, RESERVOIR TANK

17932-12C00

$4.48

33

SCREW (6X16)

09136-06022

$2.21

34

HOSE, RESERVOIR TANK INLET This part replaces 17981-17E00.

17981-21810

$42.85

35

CLIP This part replaces 09401-08407.

09401-08411

$1.78

36

HOSE, RESERVOIR TANK INLET This part replaces 17982-17E00.

17981-21810

$42.85

37

CLAMP

09407-22404

Unavailable

38

CLAMP

09407-18402

$2.19
