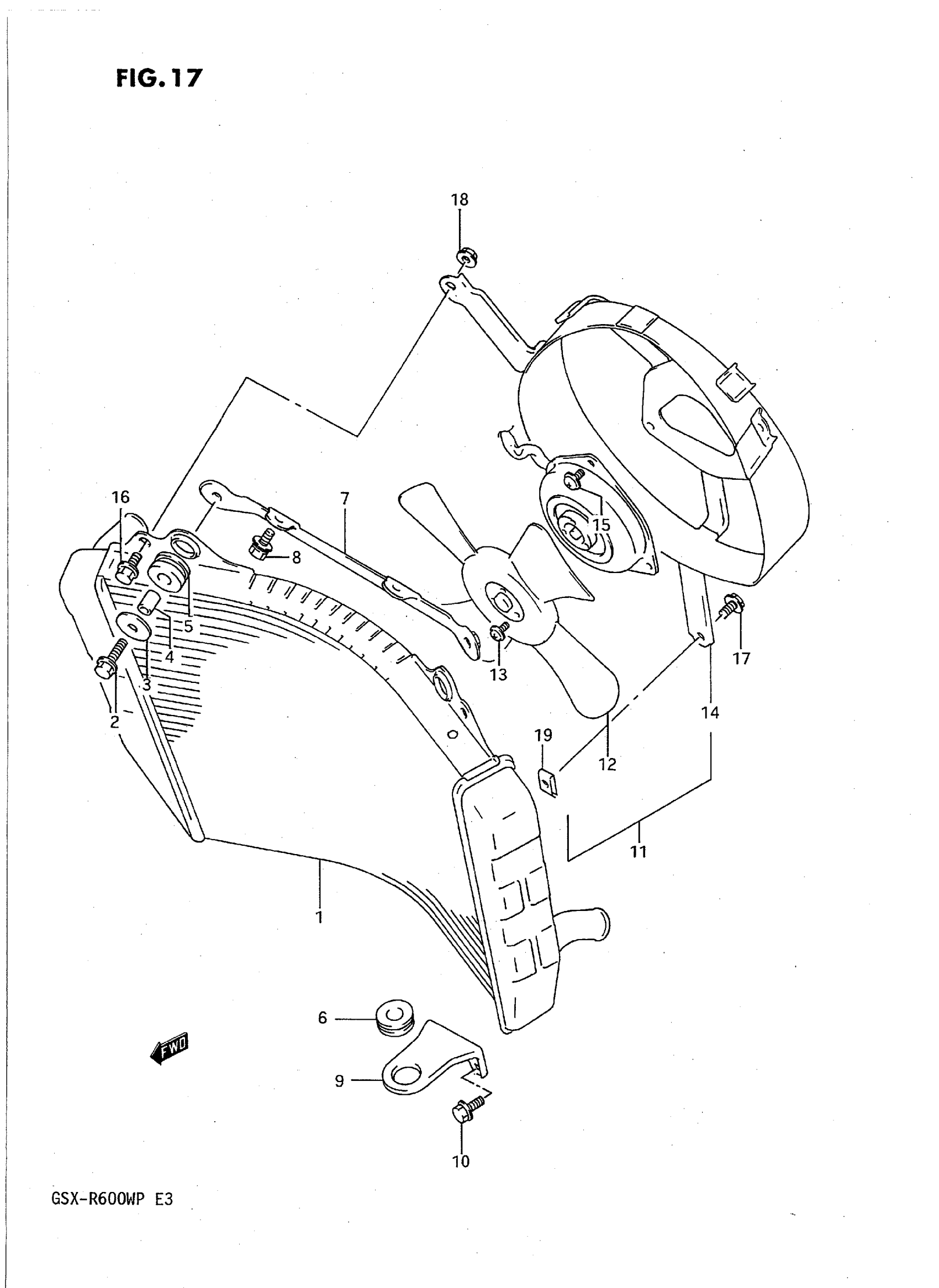

Suzuki GSX-R600WP (1993) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-17E00

Unavailable

2

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

3

WASHER (6.5X24X1.2) This part replaces 09160-06113.

09160-06114

$2.03

4

SPACER (6.5X10.5X12)

09180-07004

$2.30

5

CUSHION, RADIATOR UPPER

17787-19A00

$3.56

6

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

7

BRACKET, RADIATOR UPPER

17740-17E00

Unavailable

8

BOLT This part replaces 01177-06125.

01580-0612A

$2.32

9

BRACKET, RADIATOR LOWER

17751-17E00

Unavailable

10

BOLT This part replaces 01174-06165.

01580-0616A

$2.42

11

FAN ASSY, RADIATOR | Includes Item(s) 12 - 15 This part replaces 17800-17E00.

17800-17E02

Unavailable

12

FAN ASSY

17820-17E00

Unavailable

13

SCREW This part replaces 17801-05A00.

02112-0406B

$1.55

14

SHROUD ASSY, FAN

17770-17E00

Unavailable

15

SCREW

17801-45C00

Unavailable

16

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

17

BOLT This part replaces 01517-06108.

01550-06107

$2.80

18

NUT This part replaces 08316-16064.

08316-1006B

$2.50

19

NUT, FAN ASSY This part replaces 17762-39A00.

09148-06015

$3.04
