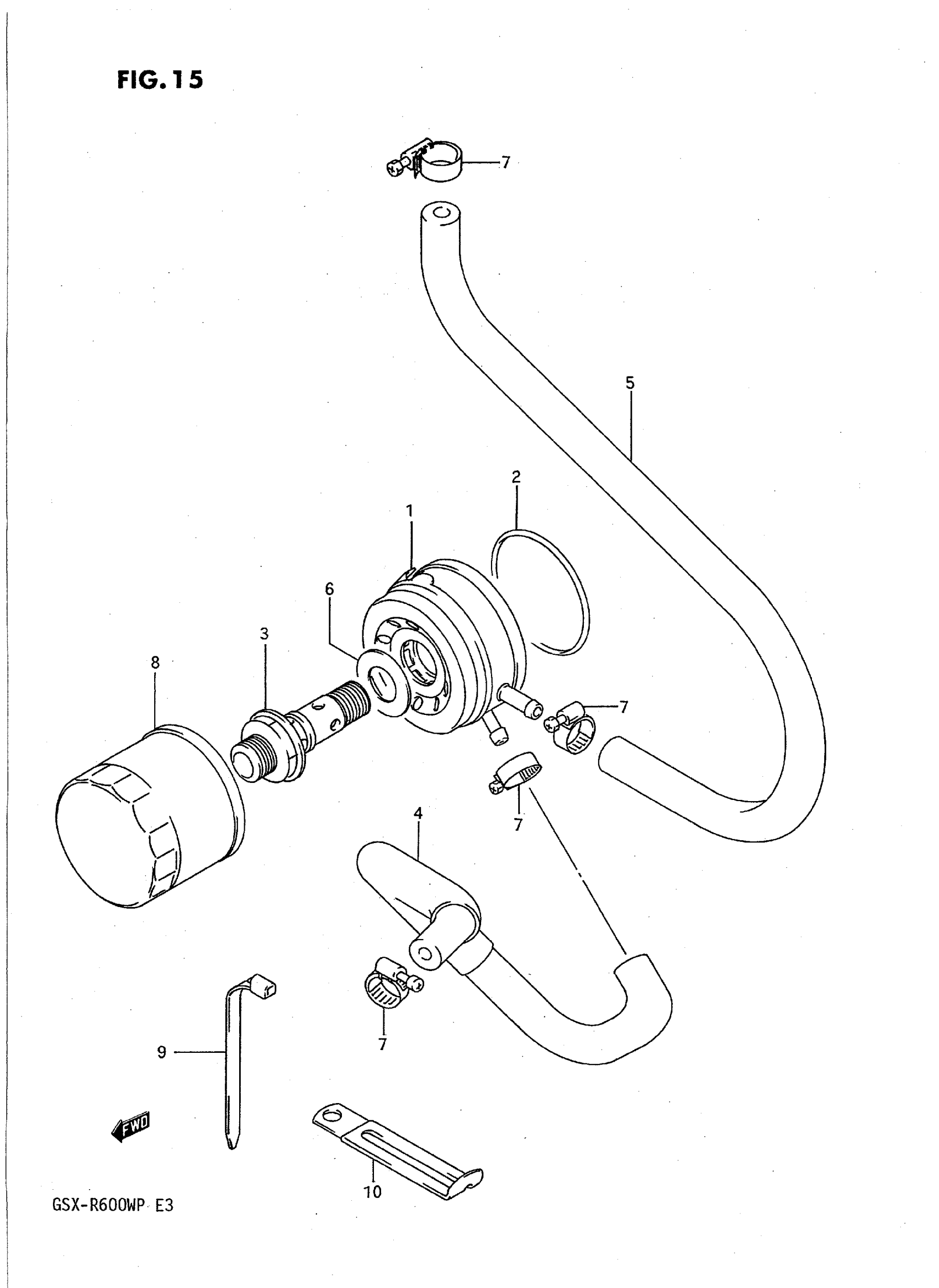

Suzuki GSX-R600WP (1993) OIL COOLER - OIL FILTER Diagram

#

Description

Price

1

COOLER ASSY, OIL

16600-17E00

Unavailable

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

3

BOLT, OIL COOLER UNION

16591-33C00

Unavailable

4

HOSE, OIL COOLER,WATER IN

16461-17E00

Unavailable

5

HOSE, OIL COOLER,WATER OUT This part replaces 16471-17E00.

16471-17E02

Unavailable

6

WASHER

09181-22009

Unavailable

7

CLAMP, LOWER This part replaces 09402-15502.

09402-17511

Unavailable

8

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

$13.10

9

CLAMP

09407-18402

$2.19

10

CLAMP | MODEL N,T:1.0 This part replaces 09404-06412.

09404-06039

$1.74

10

CLAMP | MODEL P,T:0.7 This part replaces 09404-06402.

09404-06039

$1.74
