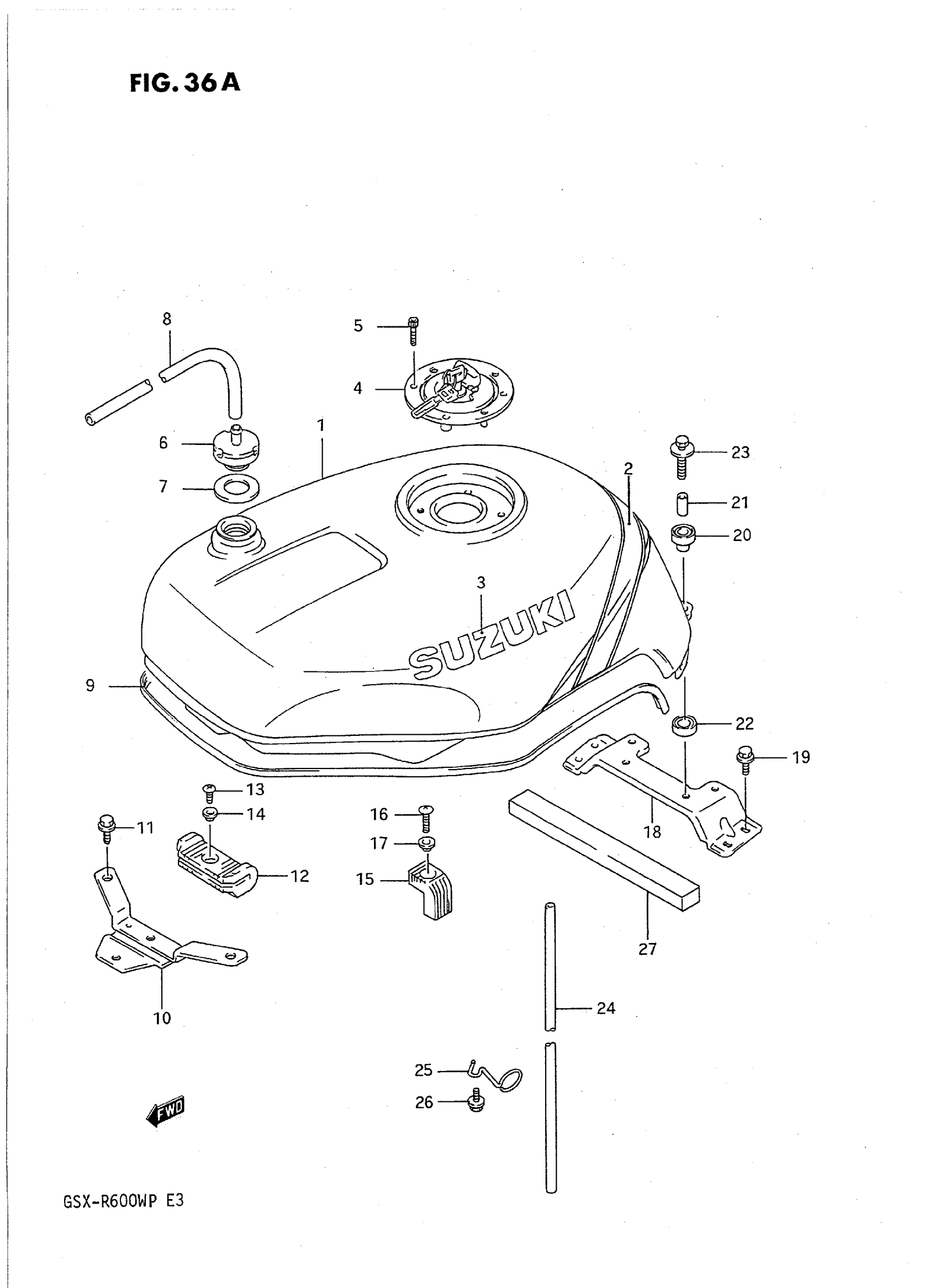

Suzuki GSX-R600WP (1993) FUEL TANK (MODEL P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-17EA0-1JX.

44100-17EA1-1JX

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-17EA0-N63.

44100-17EA1-N63

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-17EC0-1JX.

44100-17EC2-1JX

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-17EC0-N63.

44100-17EC2-N63

Unavailable

2

TAPE, FUEL TANK | FOR 1JX

68115-17E11-A8E

Unavailable

2

TAPE, FUEL TANK | FOR N63

68115-17E11-A8F

Unavailable

3

EMBLEM (WHITE) | FOR 1JX This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

3

EMBLEM, FUEL TA | FOR N63 This part replaces 68111-12C00-20H.

68111-12C30-20H

Unavailable

4

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

5

BOLT

09106-05017

$2.83

6

PLUG, BREATHER

44240-06B10

$38.33

6

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

7

GASKET

09168-12012

$1.83

7

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

9

MOLDING This part replaces 68241-17E00.

68241-04X50-00B

$27.30

10

BRACKET, FRONT

44520-17E03

Unavailable

11

BOLT This part replaces 01517-06167.

01550-06167

$2.30

12

CUSHION, FRONT

44511-41C00

Unavailable

13

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

14

WASHER

09169-05012

$2.38

15

CUSHION, SIDE This part replaces 44545-33C00.

44545-33C01

Unavailable

16

SCREW

02142-06207

$1.49

17

WASHER This part replaces 09169-06051.

09169-06055

$2.27

18

NO DESCRIPTION AVAILABLE This part replaces 44530-17E01.

44530-17E02

Unavailable

19

BOLT This part replaces 01517-06167.

01550-06167

$2.30

20

CUSHION, REAR UPPER

09320-10038

$2.61

21

SPACER This part replaces 09180-06072.

09180-06271

$2.35

22

CUSHION, REAR LOWER

09320-14017

$2.35

23

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

24

HOSE(7X10.2X200 This part replaces 09352-70103-00A.

09352-70104-00B

$15.32

25

GUIDE, DRAIN

44481-17E01

Unavailable

26

BOLT This part replaces 01517-06128.

01550-06127

$2.30

27

CUSHION, AIR SEAL

13841-17E00

Unavailable
