Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 5 This part replaces 44300-17E00.

44300-17EVV

$306.18

2

O RING

44305-17C00

$7.73

3

LEVER

44306-17C00

$15.85

4

SCREW This part replaces 02112-04126.

02112-0412A

$1.27

5

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.92

6

BOLT This part replaces 09128-06006.

09128-06057

$1.70

7

GASKET

09168-06026

$2.88

8

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.23

8

HOSE(7X10.2X600 This part replaces 09352-70103-300.

09352-70104-600

$5.23

9

SPRING

09440-13047

$6.15

10

CLIP

09401-10403

$1.73

11

CLIP This part replaces 09401-10201.

09401-10201-XC0

$2.20

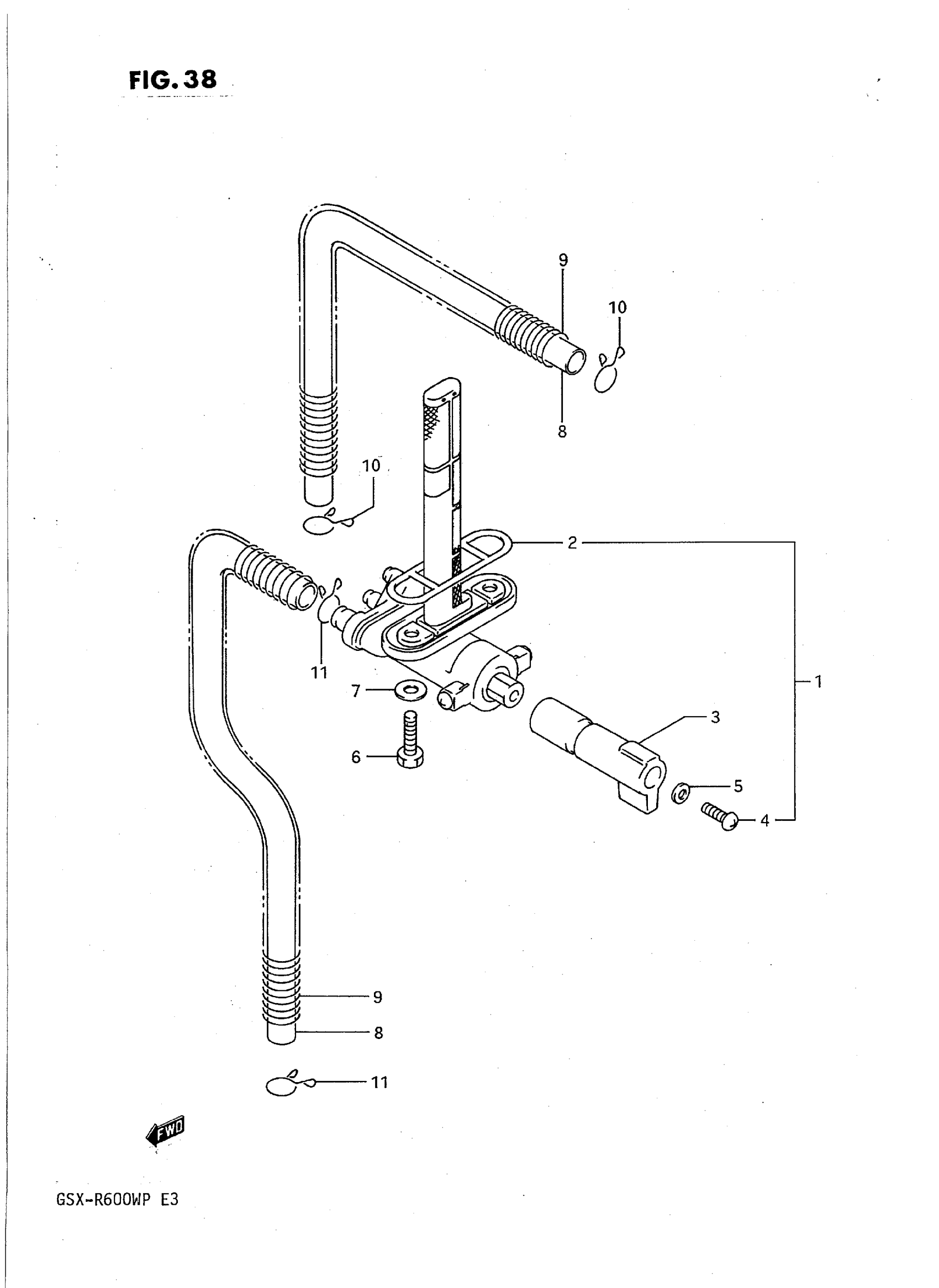

Suzuki GSX-R600WP (1993) FUEL COCK Diagram
