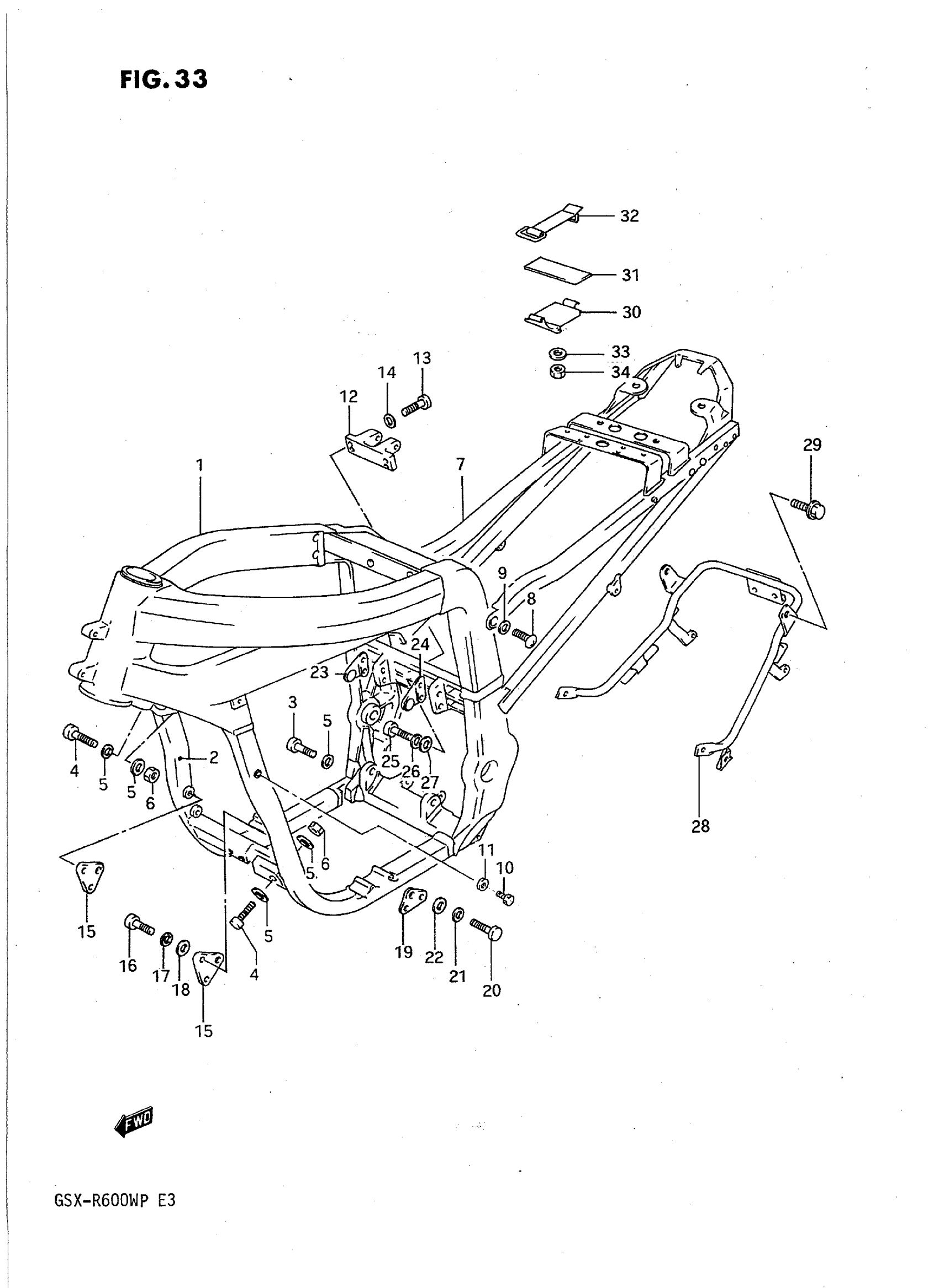

Suzuki GSX-R600WP (1993) FRAME Diagram

#

Description
Price

1

FRAME SET This part replaces 41101-17840.

41101-17870

Unavailable

1

FRAME SET | CALIFORNIA ONLY; Includes Item(s) 2 - 6

41101-17850

Unavailable

2

TUBE, FRAME DOWN RH

41140-17E00

Unavailable

2

TUBE, FRAME DOWN RH | CALIFORNIA ONLY

41140-17E10

Unavailable

3

BOLT, RH This part replaces 01517-10308.

01550-10307

$3.91

4

BOLT This part replaces 01927-10458.

01550-1045B

$4.77

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

NUT

09159-10027

$3.10

7

RAIL. SEAT This part replaces 41200-17E00.

41200-17E01

Unavailable

8

BOLT This part replaces 43529-17D00.

09139-10004

$5.00

9

WASHER

09164-10010

$4.83

10

BOLT | CALIFORNIA ONLY This part replaces 01107-06207.

01500-06207

$2.28

11

GASKET | CALIFORNIA ONLY

09168-06001

$1.49

12

BRACKET, REAR CUSHION UNIT

41762-17E00

Unavailable

13

BOLT, NO.1

09106-08056

Unavailable

14

WASHER

09164-08015

$3.21

15

PLATE, ENGINE MOUNT NO.1

41911-17E00

Unavailable

16

BOLT This part replaces 07110-08257.

07130-08257

$3.43

17

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

18

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

19

PLATE, MOUNT NO.2 LH

41921-17E00

Unavailable

19

PLATE, MOUNT NO.2 RH

41931-17E00

Unavailable

20

BOLT This part replaces 07110-08257.

07130-08257

$3.43

21

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

22

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

23

PLATE, ENGINE MOUNT NO.3 RH

41940-17E00

Unavailable

24

PLATE, ENGINE MOUNT NO.3 LH

41950-17E00

Unavailable

25

BOLT

09106-08005

Unavailable

26

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

27

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

28

GRIP, REAR | MODEL N This part replaces 43980-17E10.

43980-17E14

Unavailable

28

GRIP, REAR | MODEL P This part replaces 43980-17E11.

43980-17E14

Unavailable

29

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

30

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

31

CUSHION

36920-02200

$3.37

32

BAND, TOOL

09462-00008

$4.77

33

WASHER This part replaces 09160-06006.

09160-06084

$1.78

34

.NUT This part replaces 08319-21066.

08319-2106A

$1.91
