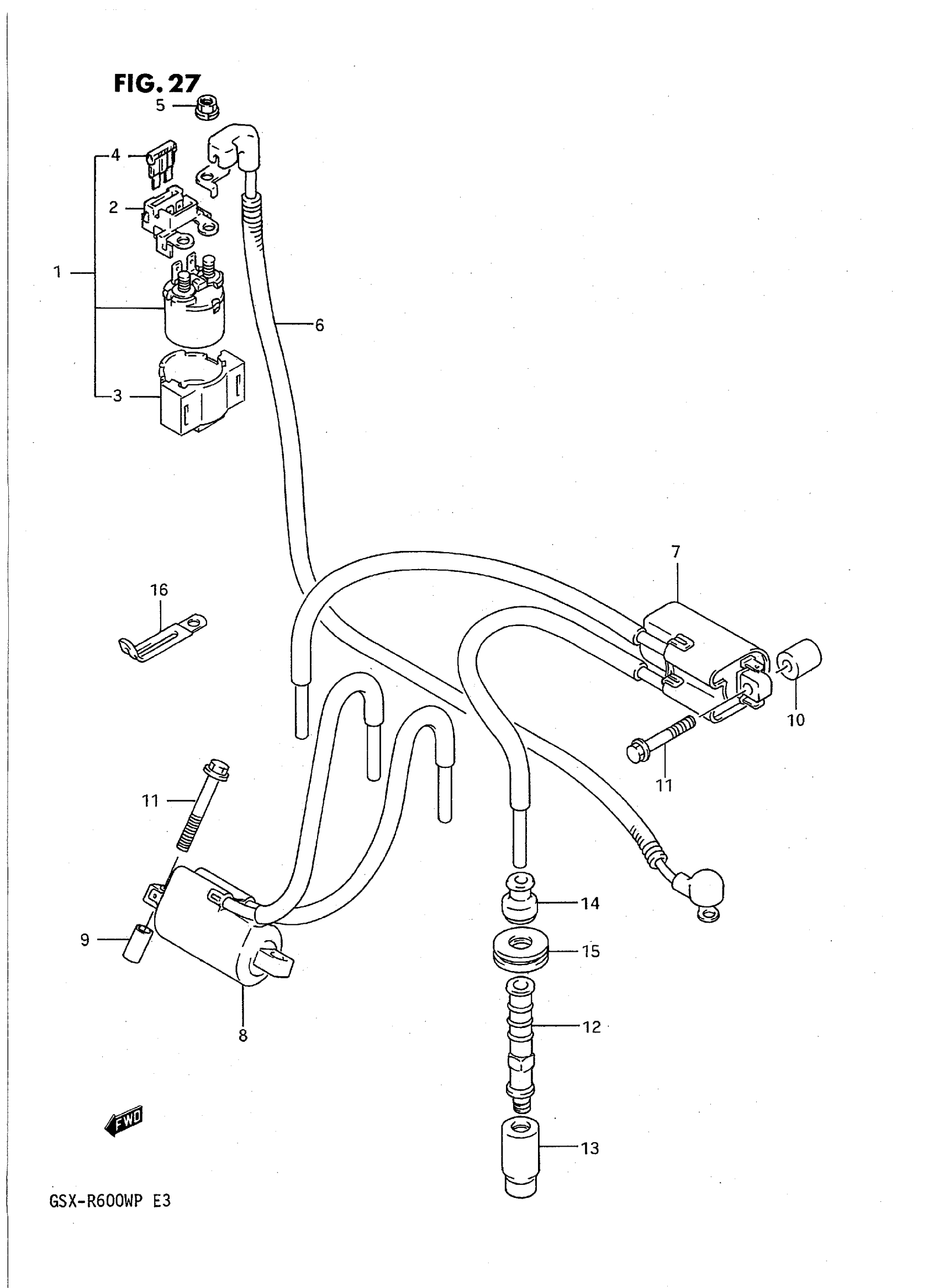

Suzuki GSX-R600WP (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR | Includes Item(s) 2 - 4

31800-07D00

Unavailable

2

TERMINAL

31841-07D00

Unavailable

3

HOLDER

31892-07D00

$15.00

4

FUSE (30A)

09481-30201

Unavailable

5

NUT This part replaces 08361-35066.

08361-3506A

$1.80

6

LEAD WIRE, STARTING MOTOR This part replaces 33810-17E00.

33810-46E01

Unavailable

7

COIL, IGNITION NO.1

33410-17E00

Unavailable

8

COIL, IGNITION NO.2

33420-17E00

Unavailable

9

SPACER This part replaces 09180-06072.

09180-06271

$2.35

10

SPACER, IGNITION COIL 2-3

33419-17E00

Unavailable

11

BOLT This part replaces 01517-06408.

01550-06407

$2.69

12

CAP, SPARK PLUG

33510-17E00

Unavailable

13

SEAL, PLUG

33541-20C00

$13.43

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

15

COVER This part replaces 33543-17E00.

33543-17E01

Unavailable

16

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
