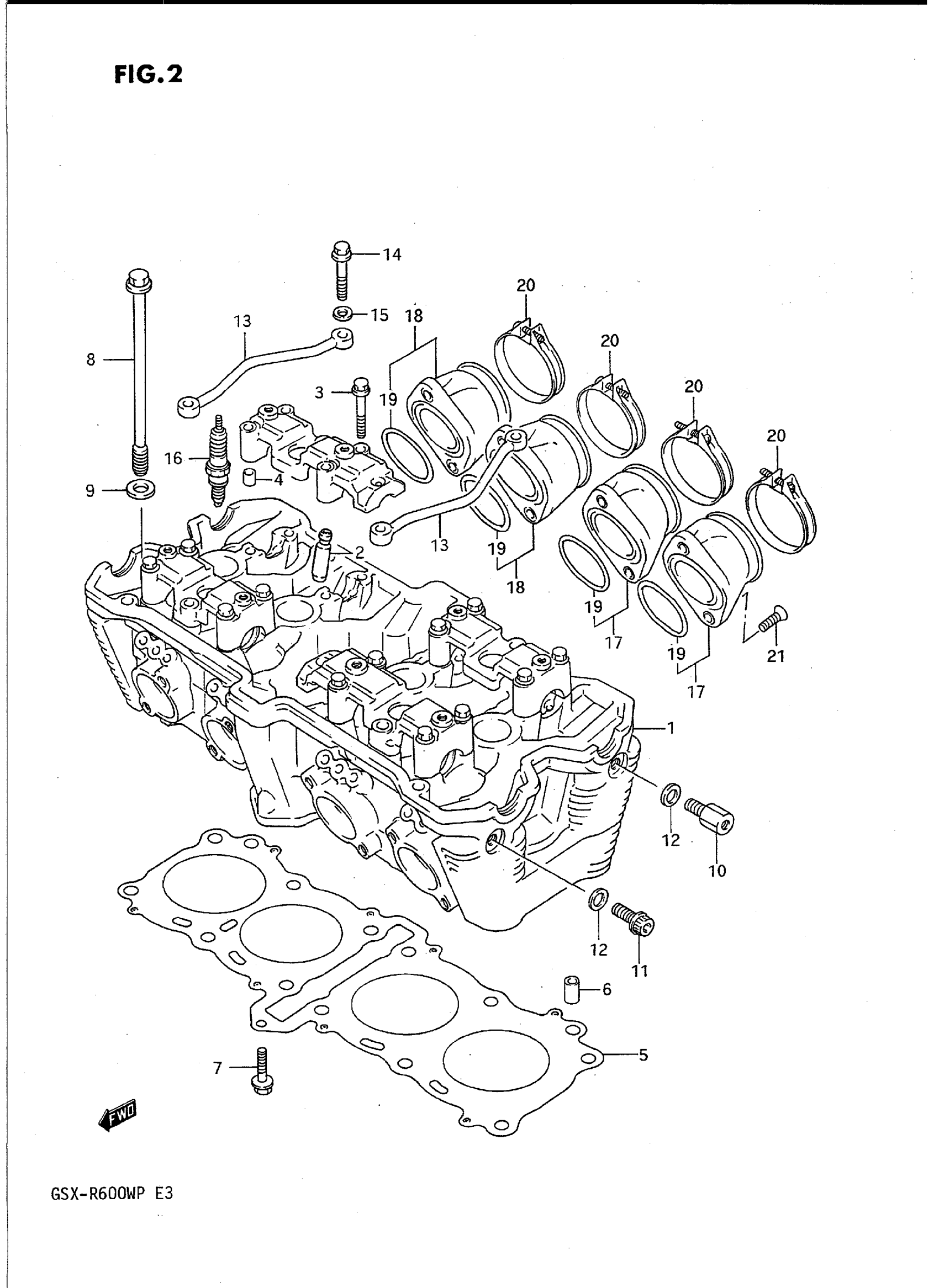

Suzuki GSX-R600WP (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-18E00

Unavailable

1

HEAD ASSY, CYLINDER | CALIFORNIA ONLY; Includes Item(s) 2 - 4

11100-18E10

Unavailable

2

GUIDE, VALVE

11115-17E70

Unavailable

3

BOLT (6X45) This part replaces 09103-06013.

09103-06165

$3.03

4

PIN

09206-08001

$1.78

5

GASKET, CYLINDER HEAD This part replaces 11141-18E00.

11141-18E01

Unavailable

6

PIN

04211-11189

$1.78

7

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

8

BOLT (10X160)

09103-10272

$15.32

9

WASHER

09160-10082

$1.61

10

BOLT This part replaces 09119-08079.

09119-08079-XC0

Unavailable

11

BOLT This part replaces 07120-08165.

07120-0816A

$3.05

12

GASKET

09168-08015

$2.79

13

PIPE, OIL

11131-17E00

Unavailable

14

BOLT (6X39)

09103-06026

$1.98

15

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

16

SPARK PLUG (NGK,CR9EK)

09482-00410

$11.59

16

SPARK PLUG (DENSO,U27ESR-N) This part replaces 09482-00411.

09482-00459

$6.09

16

SPARK PLUG (NGK,CR8EK) | OPT

09482-00412

$10.62

16

SPARK PLUG (ND,U24ETR) | OPT

09482-00413

$13.17

16

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

$12.50

16

SPARK PLUG (ND,U31ETR) | OPT

09482-00463

$15.42

17

PIPE ASSY,INTAK This part replaces 13101-17E10.

13101-17E11

Unavailable

18

NO DESCRIPTION AVAILABLE | Includes Item(s) 19 This part replaces 13102-17E10.

13102-17E11

Unavailable

19

O RING

09280-44007

$11.98

20

CLAMP

09402-52208

$5.36

21

SCREW (6X16)

09126-06014

$2.06
