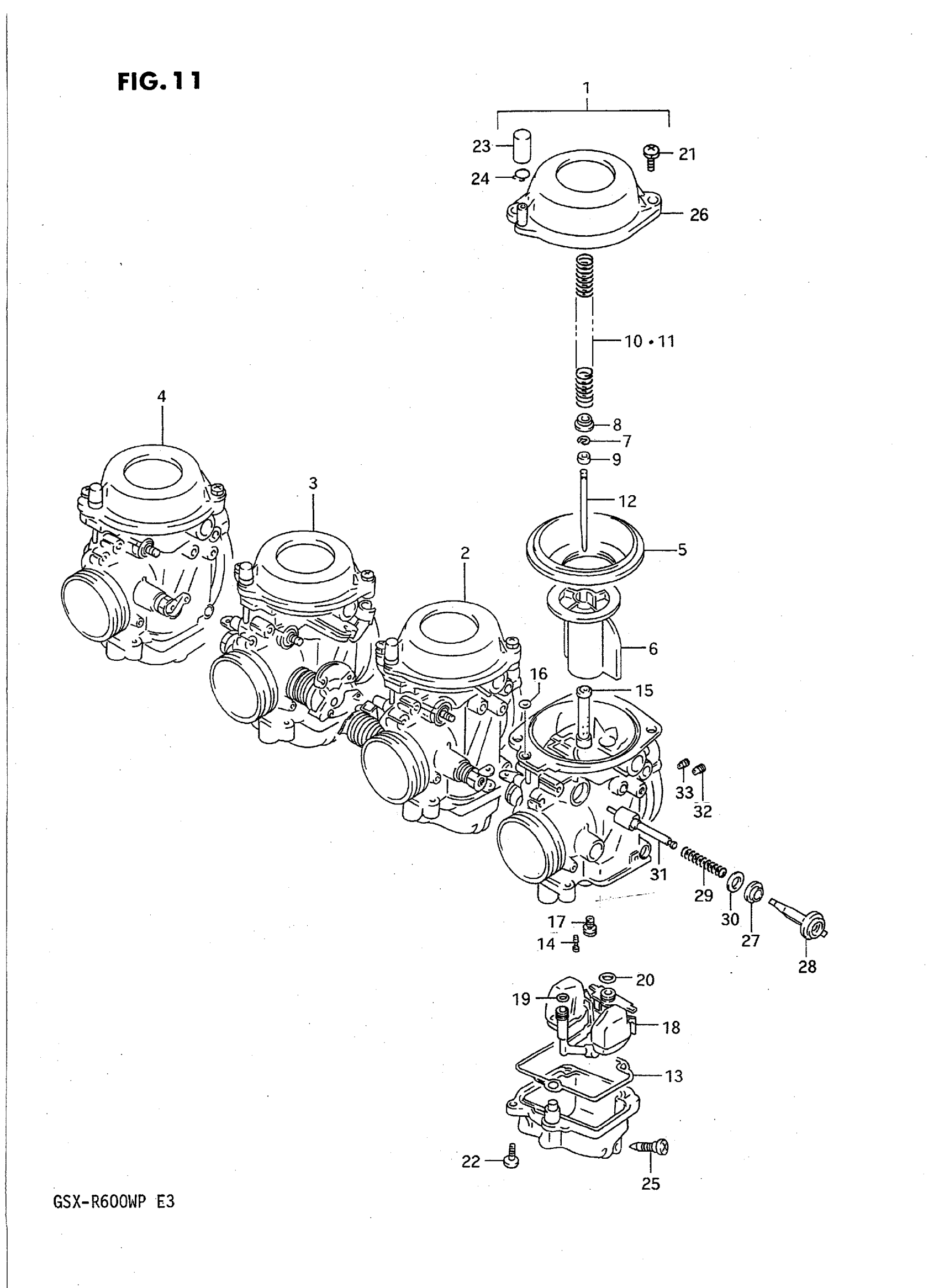

Suzuki GSX-R600WP (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-18E00

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY

13201-18E10

Unavailable

2

CARBURETOR ASSY, ML

13202-18E00

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY

13202-18E10

Unavailable

3

CARBURETOR ASSY, MR

13203-18E00

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY

13203-18E10

Unavailable

4

CARBURETOR ASSY, RH

13204-18E00

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY; Includes Item(s) 5 - 33

13204-18E10

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$29.60

6

VALVE, PISTON

13501-18E00

Unavailable

7

E RING

13394-31210

$4.64

8

RING

13382-42A00

$4.48

9

RING This part replaces 13387-18E00.

13387-44030

$5.83

9

RING | CALIFORNIA ONLY This part replaces 13387-18E10.

13387-44030

$5.83

10

SPRING | LH,RH

13503-18E00

Unavailable

11

SPRING | ML,MR This part replaces 13417-44C80.

13417-21E00

Unavailable

12

NEEDLE, JET (5FZ91-1)

13383-17C20

$21.52

12

NEEDLE, JET (5FZ62-1) | CALIFORNIA ONLY

13383-20C10

$19.63

13

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

14

JET, PILOT (32.5)

09492-32006

$11.32

15

JET, NEEDLE (X-9)

09494-00765

Unavailable

16

O RING

13509-17C00

$4.34

17

JET, MAIN (105)

09491-21016

$12.13

18

FLOAT/NEEDLE VALVE ASSY

13250-18E00

Unavailable

19

.O RING

13374-46710

$4.48

20

O RING This part replaces 13374-44080.

13374-35C00

$5.99

21

SCREW This part replaces 13602-34390.

02112-7516A

$2.41

22

SCREW This part replaces 13602-05129.

02112-05127

$1.97

23

CAP

13508-17C00

$4.74

24

CLIP This part replaces 13671-33600.

13671-05A40

$3.71

25

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

26

COVER, DIAPHRAGM

13502-17C00

Unavailable

27

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

28

HOLDER

13418-17C10

$13.90

29

SPRING

13417-26D00

$6.08

30

WASHER

13432-47090

$2.28

31

PLUNGER ASSY

13411-05320

$26.80

32

JET, MAIN AIR (0.6) | OTHER THAN CALIFORNIA

09493-60004

$16.87

33

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

$16.32
