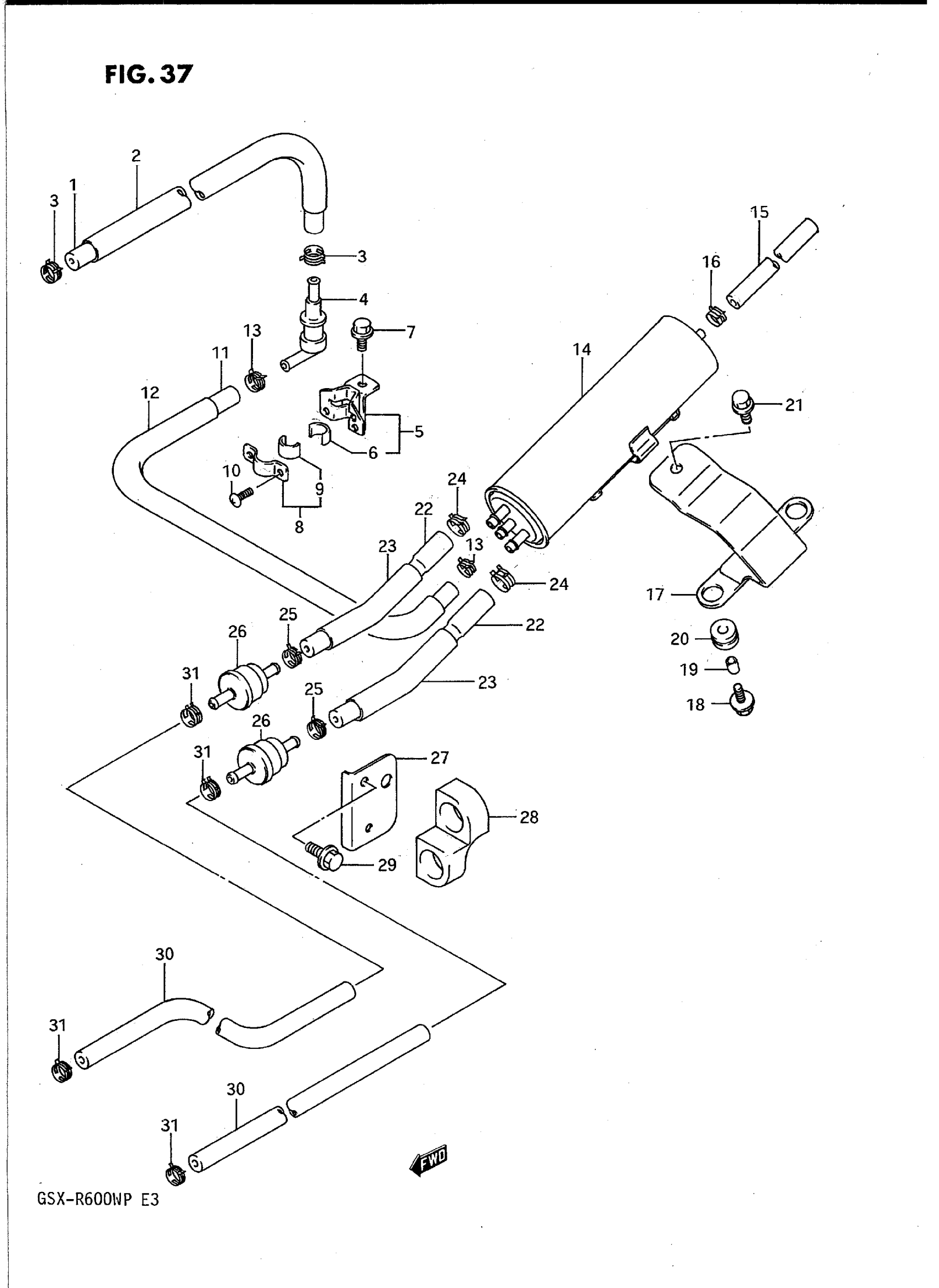

Suzuki GSX-R600WP (1993) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:300->230 This part replaces 09358-54116-300.

09355-54115-600

$14.59

2

PROTECTORM,FUEL This part replaces 44461-01D01.

44461-24D00

$10.48

3

CLIP This part replaces 09401-11410.

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET, BREATHER VALVE | Includes Item(s) 6

44890-17E00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

11

HOSE, TANK & BREATHER VALVE | L:600->330 This part replaces 09358-54116-600.

09355-54115-600

$14.59

12

PROTECTOR

44462-26D01

Unavailable

13

CLIP This part replaces 09401-11410.

09401-11413

$2.26

14

CANISTER ASSY

17210-17E00

Unavailable

15

HOSE, 3 OUT/CANISTER This part replaces 09343-07502.

09343-07501

$19.13

16

CLIP This part replaces 09401-12406.

09401-11415

$2.23

17

BRACKET, CANISTER

44881-17E00

Unavailable

18

BOLT (6X16) This part replaces 09116-06007.

09116-06168

$2.50

19

SPACER This part replaces 09180-06152.

09180-06262

$2.55

20

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

21

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

22

HOSE, CANISTER & PURGE | L:300->105L:300->125 This part replaces 09359-54111-300.

09359-54111-600

$25.80

23

PROTECTOR

44462-17E00

Unavailable

23

PROTECTOR

44461-17E00

Unavailable

24

CLIP This part replaces 09401-12406.

09401-11415

$2.23

25

CLIP This part replaces 09401-11410.

09401-11413

$2.26

26

VALVE, CANISTER PURGE

44250-48B00

Unavailable

27

BRACKET, PURGE VALVE

44883-17E00

Unavailable

28

CUSHION

44882-17C00

Unavailable

29

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

30

HOSE, TANK & BREATHER VALVE | L:600->390L:600->470 This part replaces 09354-54115-600.

09355-54115-600

$14.59

31

CLIP This part replaces 09401-11410.

09401-11413

$2.26
