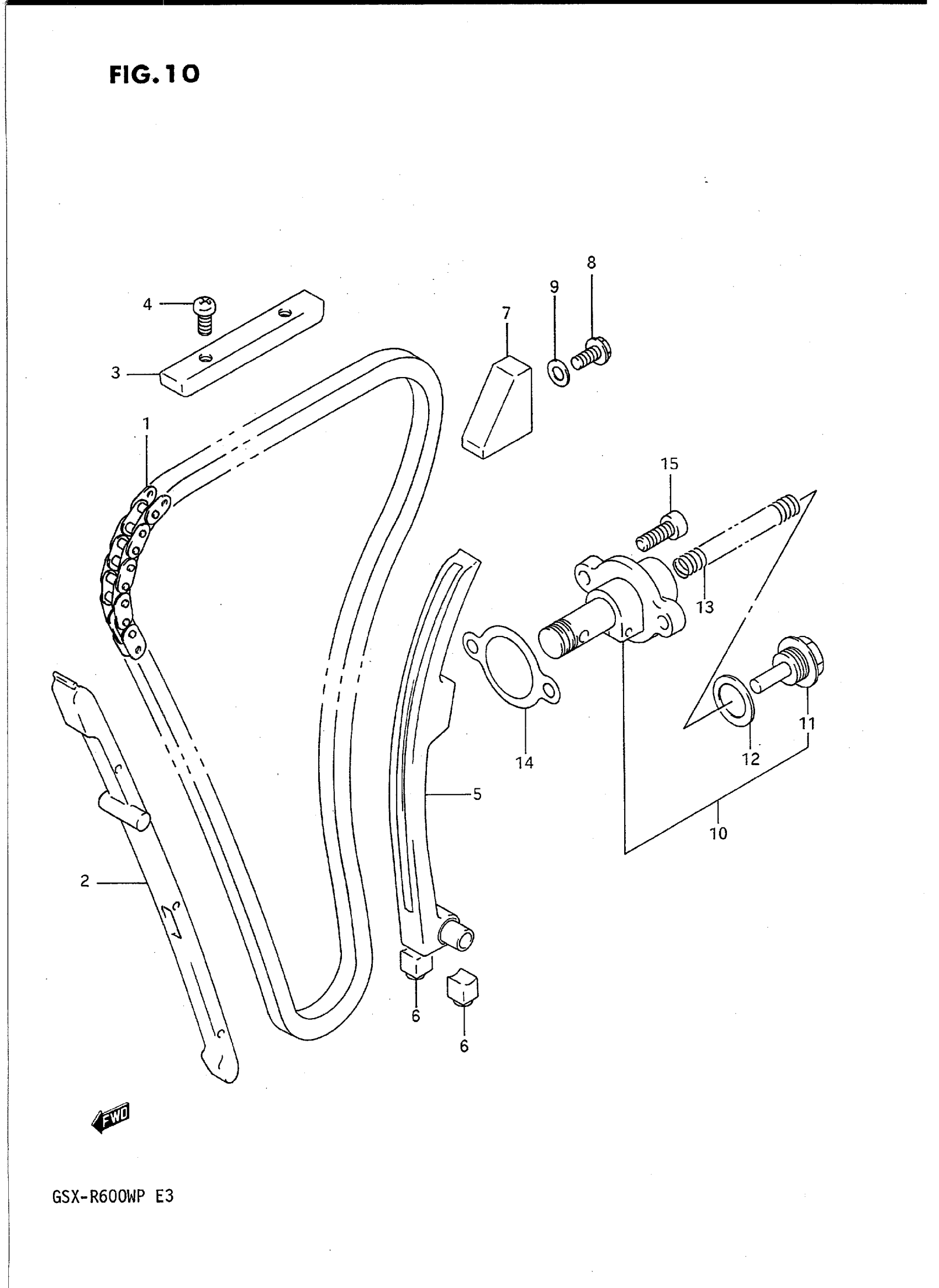

Suzuki GSX-R600WP (1993) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CM SHAFT DRIVE This part replaces 12760-17E00.

12760-17E01

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-17E00

Unavailable

3

GUIDE, CAM CHAIN NO.2

12782-18E00

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.49

5

TENSIONER, CM CHAIN This part replaces 12810-17E00.

12810-17E01

Unavailable

6

CUSHION

12814-34200

$5.58

7

GUIDE, CAM CHAIN NO.3 This part replaces 12791-17E00.

12791-17E01

$79.07

8

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

9

WASHER

09168-06023

$2.35

10

ADJUSTER ASSY, TENSIONER | Includes Item(s) 11 - 13 This part replaces 12830-26D10.

12830-46E00

Unavailable

11

PLUG

12834-27A00

Unavailable

12

GASKET

12832-27A00

$6.91

13

SPRING

12833-26D10

$6.88

14

GASKET, ADJUSTER (NA)

12837-27A10

$3.85

15

BOLT,6X23 This part replaces 09106-06059.

09106-06059-XC0

Unavailable
