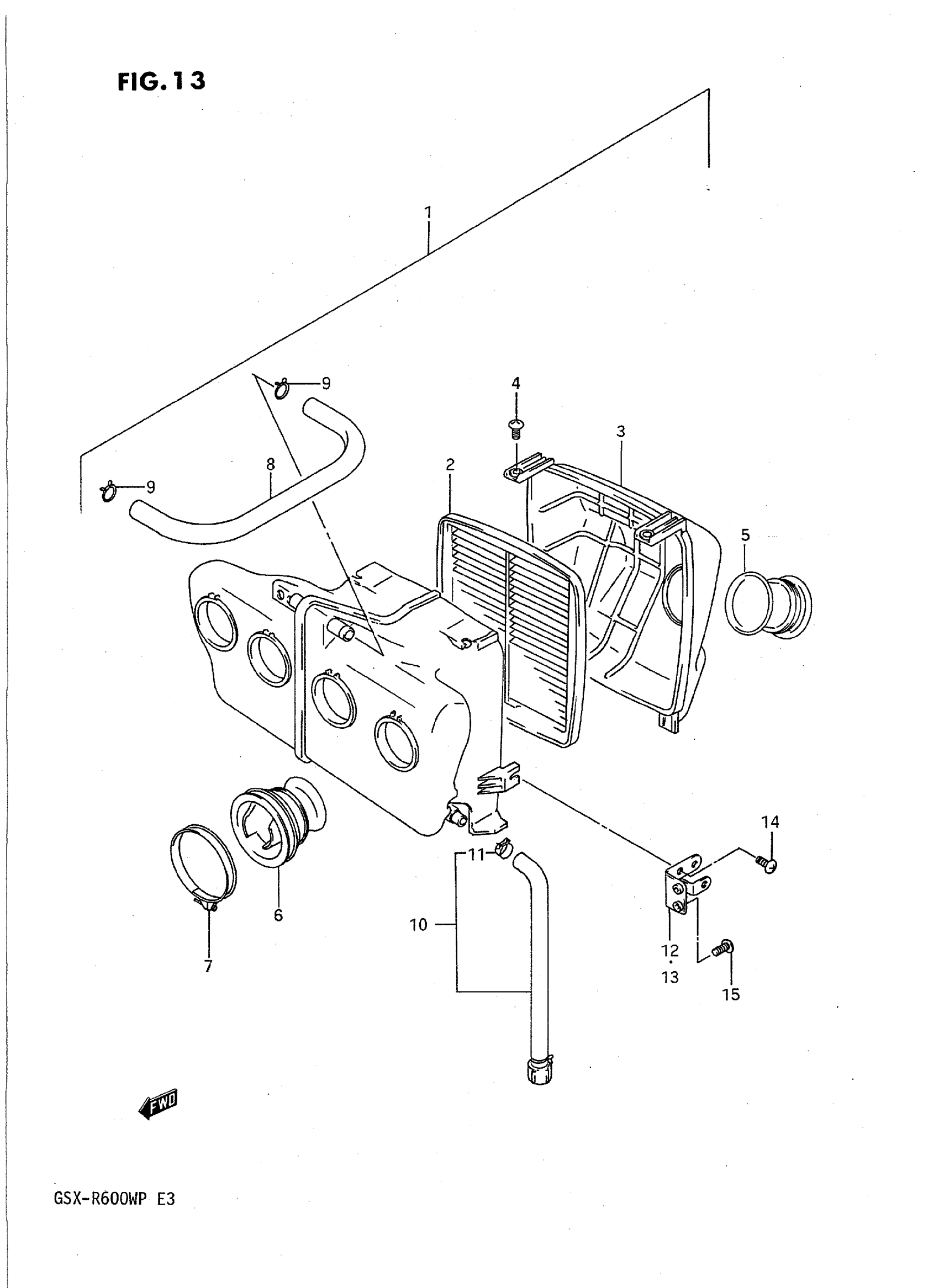

Suzuki GSX-R600WP (1993) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 13700-17E10.

13700-17E12

Unavailable

2

FILTER, AIR

13780-17E00

$50.38

3

CAP, AIR CLEANER This part replaces 13740-17E00.

13740-17E02

$60.02

4

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

5

TUBE,INLET This part replaces 13891-17E00.

13891-17E01

$27.00

6

TUBE, OUTLET

13881-17E10

Unavailable

7

CLAMP

09402-68208

$5.58

8

TUBE, BREATHER This part replaces 13853-17E00.

13853-46E00

Unavailable

9

CLIP This part replaces 13824-48B10.

09401-16401

$3.14

10

TUBE,DRAIN This part replaces 13870-17E00.

13870-21459

$23.68

11

CLAMP This part replaces 13825-43400.

09401-13417

$2.26

12

BRACKET, AIR CLEANER RH

13760-17E00

Unavailable

13

BRACKET, AIR CLEANER LH

13770-17E00

Unavailable

14

SCREW This part replaces 02142-06126.

02142-0612A

$1.49

15

SCREW This part replaces 02142-06166.

02142-0616A

$1.49
