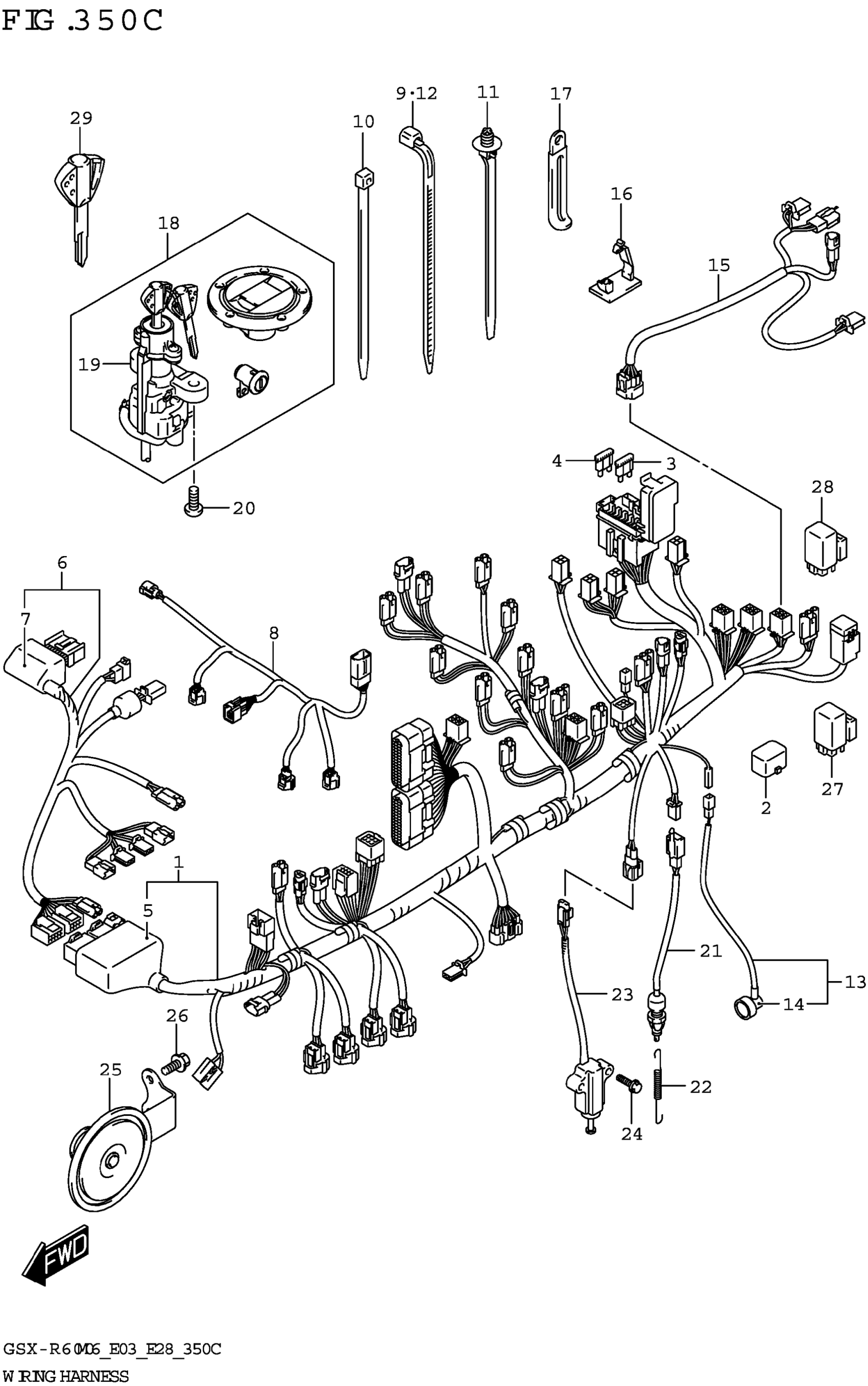

Suzuki GSX-R600M6 (2026) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS,WIRING NO.1

36610-14JD1

$994.03

2

CAP,TS

36654-06J01

$13.85

3

.FUSE (10A)

09481-10501

$2.06

4

.FUSE (15A)

09481-15501

$2.02

5

.COVER

36618-18G00

Unavailable

6

HARNESS,WIRING NO.2

36620-14J11

$236.83

7

.COVER,CONNECTOR

36618-47H00

$22.23

8

HARNESS,WIRING NO.3

36630-14J11

$209.52

9

CLAMP (L:95)

09407-11401

$2.63

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:170)

09407-17403

$4.91

12

CLAMP (L:125)

09407-14403

$2.26

13

WIRE,OIL PRESSURE SWITCH LEAD

36851-14J01

$13.55

14

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

15

WIRE,RR COMB LEAD

36859-14J01

$54.98

16

CLAMP

09403-04310

$5.35

17

CLAMP (L:45)

09404-06429

$1.83

18

LOCK SET

37101-40843

$301.83

19

.LOCK ASSY,STEERING

37100-41G12

$228.06

20

BOLT (8X20)

09139-08016

$3.37

21

SWITCH ASSY,STOP LAMP

37740-14J00

$26.97

22

SPRING

09443-06087

$4.10

23

SWITCH ASSY,SIDE STAND

37840-18J02

$52.92

24

BOLT (6X20)

01550-0620A

$1.97

25

HORN ASSY

38500-14J00

$87.70

26

BOLT

01550-0616B

$2.48

27

RELAY ASSY

38740-24X50

$45.20

28

RELAY ASSY

38740-24X50

$45.20

29

KEY,BLANK (IMMOBI)

37146-41G00

$43.04
