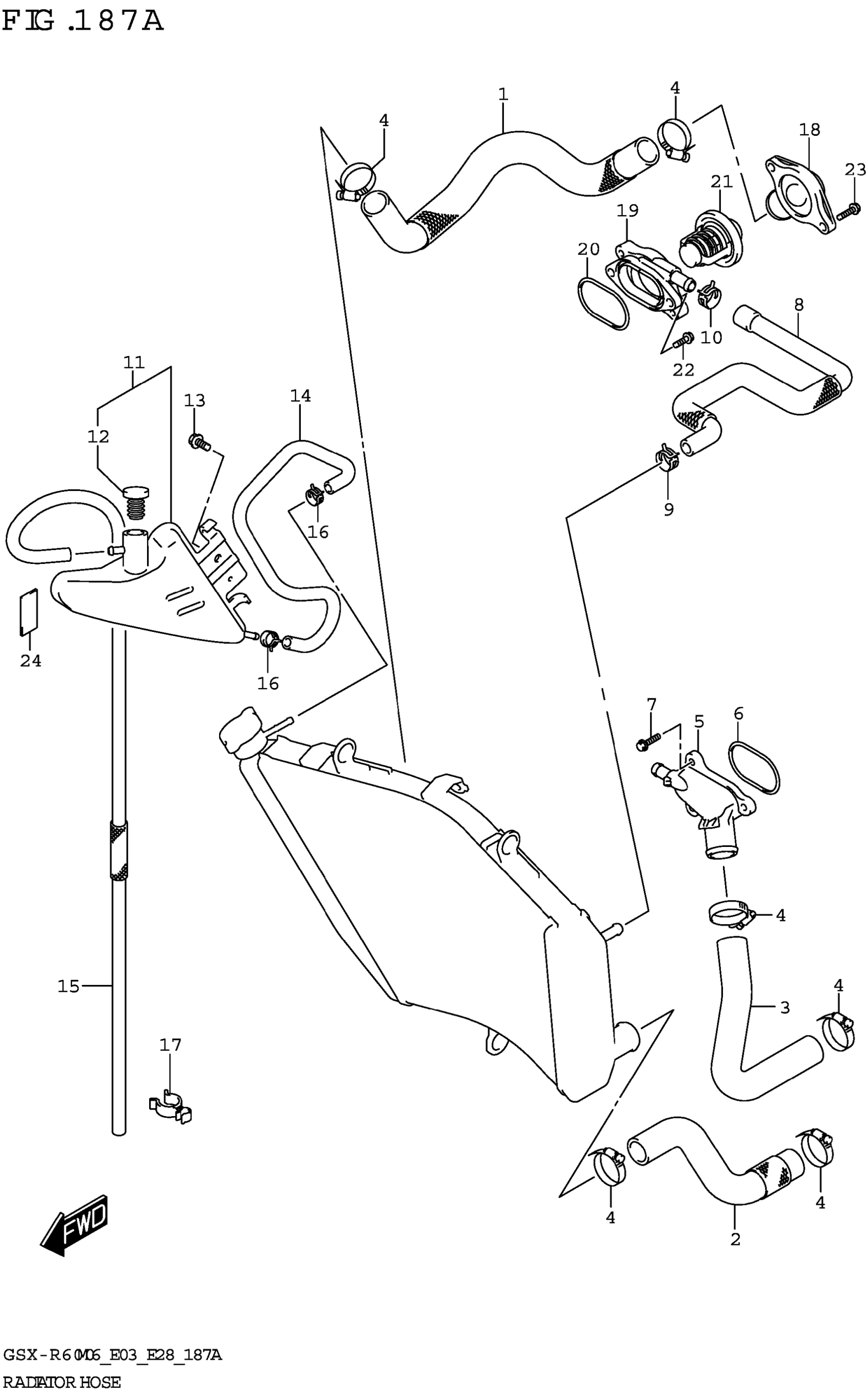

Suzuki GSX-R600M6 (2026) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-14J00

$55.63

2

HOSE,RADIATOR OUTLET

17852-14J00

$46.60

3

HOSE,CYLINDER INLET

17853-14J00

$30.85

4

CLAMP

09402-35501

$7.29

5

CONNECTOR,CYL WATER INLET

17861-01H00

$67.72

6

O-RING,CYL WATER CONNECTOR

17863-01H00

$7.05

7

BOLT

01547-0620A

$2.03

8

HOSE,WATER BYPASS

17854-14J00

$38.55

9

CLIP

09401-12414

$3.26

10

CLIP

09401-14403

$4.77

11

TANK ASSY,RESERVOIR

17910-14J00

$75.08

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

13

BOLT (6X12)

09111-06085

$4.54

14

HOSE,RESERVOIR TANK INLET

17981-18G00

$13.28

15

HOSE,RESERVOIR TANK OVFL

17982-37H00

$17.77

16

CLIP (ID:8.6)

09401-08411

$1.78

17

CLAMP (L:45)

09404-06429

$1.83

18

COVER,THERMOSTAT

17661-37H00

$36.33

19

CONNECTOR,THERMOSTAT

17662-01H00

$93.63

20

O-RING,THERMOSTAT CONNECTOR

17663-01H00

$7.05

21

THERMOSTAT,WTR (82<-C)

17670-76G00

$36.79

22

BOLT

01547-0620A

$2.03

23

BOLT (6X25)

01550-0625A

$1.97

24

CUSHION,FR | CUT AS REQUIIRED

46312-31D11

$5.02
