Description

Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:BNR

44100-14JP0-YKV

$860.68

1-2

TANK ASSY,FUEL (SILVER) | BODY COLOR:CFR

44100-14JP0-QKA

$860.68

2-1

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BNR

68111-14J00-YES

$27.77

2-2

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:CFR

68111-14J00-019

$32.48

3

CAP SET,FUEL TA This part replaces 44200-16871.

44200-16872

$172.96

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

6

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.95

7

FASTENER (33X25X2.6)

44572-13G00

$10.13

8

CUSHION (8X18X14)

09320-08071

$3.05

9

CUSHION,FUEL TANK COVER

44276-21H01

$5.46

10

CUSHION,FUEL TANK RR

44542-41G00

$7.04

11

BRACKET,FUEL TANK

44530-41G01

$45.77

12

RUBBER,FUEL TANK FR

44546-44H00

$15.07

13

CUSHION,FUEL TANK FRONT

44511-16G01

$3.77

14

SPACER,FUEL TANK FR

44512-16G00

$6.80

15

SCREW (6X25)

09139-06192

$2.92

16

WASHER This part replaces 09160-06012.

09160-06054

$1.62

17

BOLT (6X110)

09106-06119

$5.21

18

SPACER,FUEL TANK RR

44561-18G00

$15.52

19

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$23.47

20

STAY,FUEL TANK

44574-35F00

$13.89

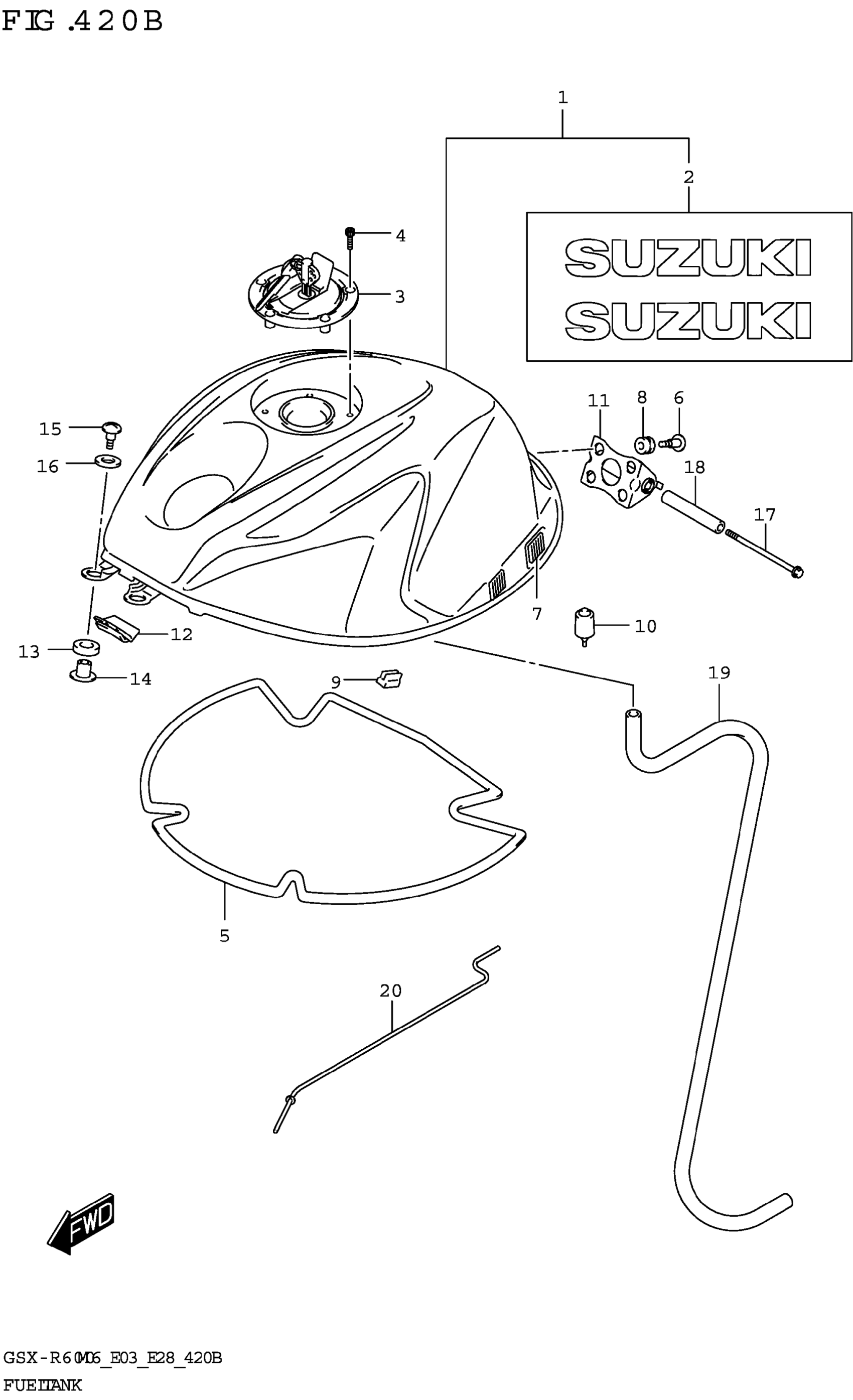

Suzuki GSX-R600M6 (2026) FUEL TANK (GSX-R600:E33) Diagram
