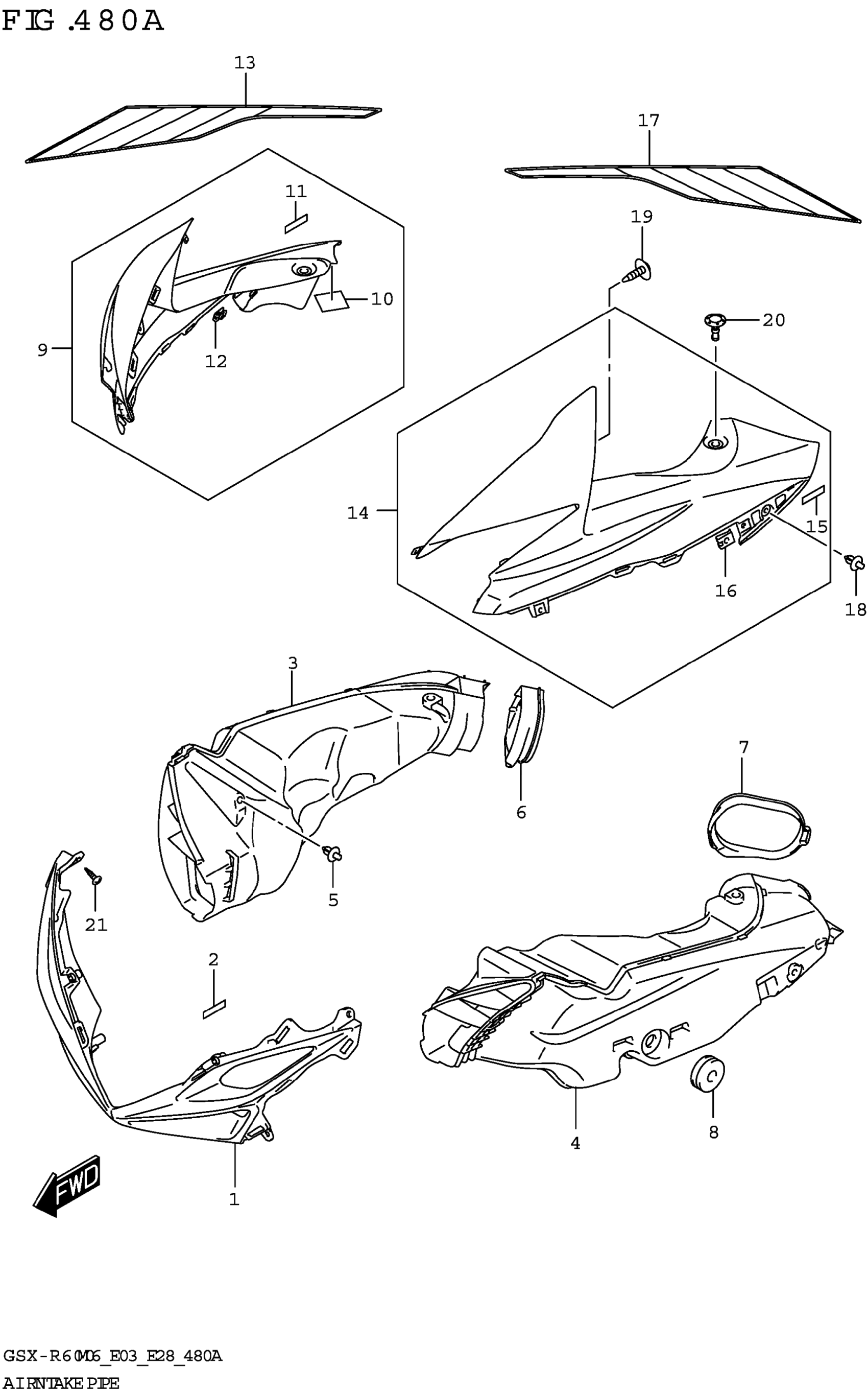

Suzuki GSX-R600M6 (2026) AIR INTAKE PIPE (GSX-R600) Diagram

#

Description
Price

1-1

COVER,INTAKE (RED) | BODY COLOR:BNR

94671-14J10-YYG

$203.38

1-2

COVER,INTAKE (BLUE) | BODY COLOR:CFR

94671-14J10-YKY

$74.73

2

TAPE (6X25X0.13)

94443-06G00

$2.97

3

PIPE,AIR INTAKE RH

94420-14J00

$107.97

4

PIPE,AIR INTAKE LH

94430-14J00

$108.98

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

8

CUSHION (8X26X7)

09320-08028

$2.80

9

COVER,INTAKE,R (BLACK)

94670-14JB0-YVB

$145.02

10

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.80

11

TAPE (6X25X0.13)

94443-06G00

$2.97

12

NUT (M5)

09148-05052

$3.04

13-1

TAPE,INTAKE COVER,R (RED,BLUE | BLACK) BODY COLOR:BNR

68275-14J70-DD5

$39.88

13-2

TAPE,INTAKE COVER,R (BLUE,BLA | K) BODY COLOR:CFR

68275-14J70-DD7

$39.88

14

COVER,INTAKE,L (BLACK)

94680-14JB0-YVB

$145.02

15

TAPE (6X25X0.13)

94443-06G00

$2.97

16

NUT (M5)

09148-05052

$3.04

17-1

TAPE,INTAKE COVER,L (RED,BLUE | BLACK) BODY COLOR:BNR

68285-14J70-DD5

$39.88

17-2

TAPE,INTAKE COVER,L (BLUE,BLA | K) BODY COLOR:CFR

68285-14J70-DD7

$39.88

18

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

19

SCREW (5X12)

09132-05050

$1.89

20

CLIP

94479-35F00

$5.14

21

SCREW

03541-0512A

$1.37
