Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-06G02

$67.32

2

.FUSE (30A)

09481-30101

$2.26

3

.COVER

31861-47E00

$16.15

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

BRACKET,RECTIFIER

32830-14J00

$17.12

7

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

8

CUSHION (8.4X18X6)

09320-08066

$8.24

9

BOLT (6X20)

09116-06182

$2.30

10

BOLT

01550-0616A

$1.97

11

CLAMP (L:80)

09404-06030

Unavailable

12

NUT (6X12)

08316-1006A

$2.19

13

COIL ASSY,IGNITION

33410-37H00

$174.35

14

CONTROL UNIT,FI

32920-14J81

$1,526.88

15

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

16

ACTUATOR ASSY

33970-47H03

$422.63

17

BOLT (6X32.5)

09116-06148

$3.16

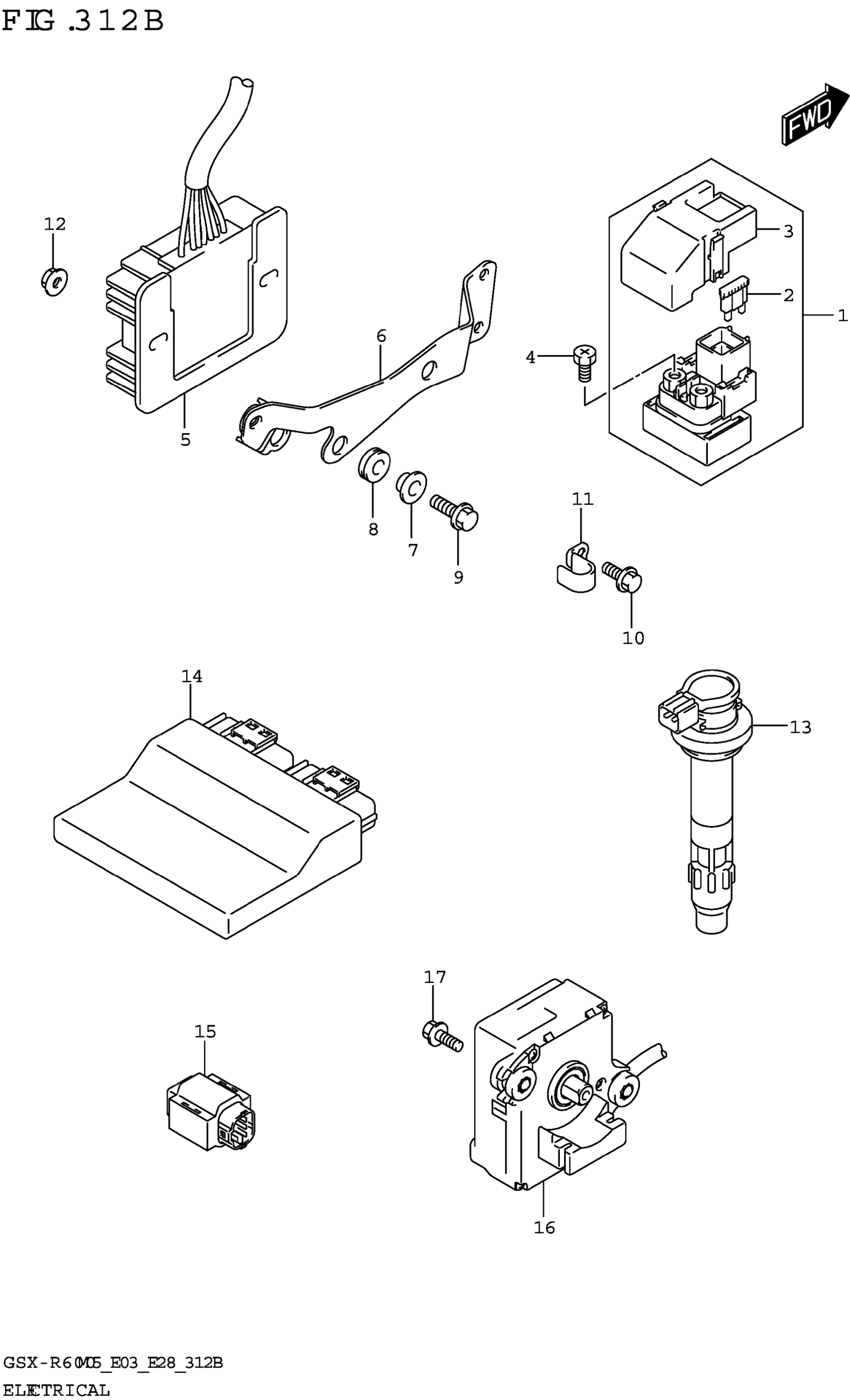

Suzuki GSX-R600M5 (2025) ELECTRICAL (E03,E28) Diagram
