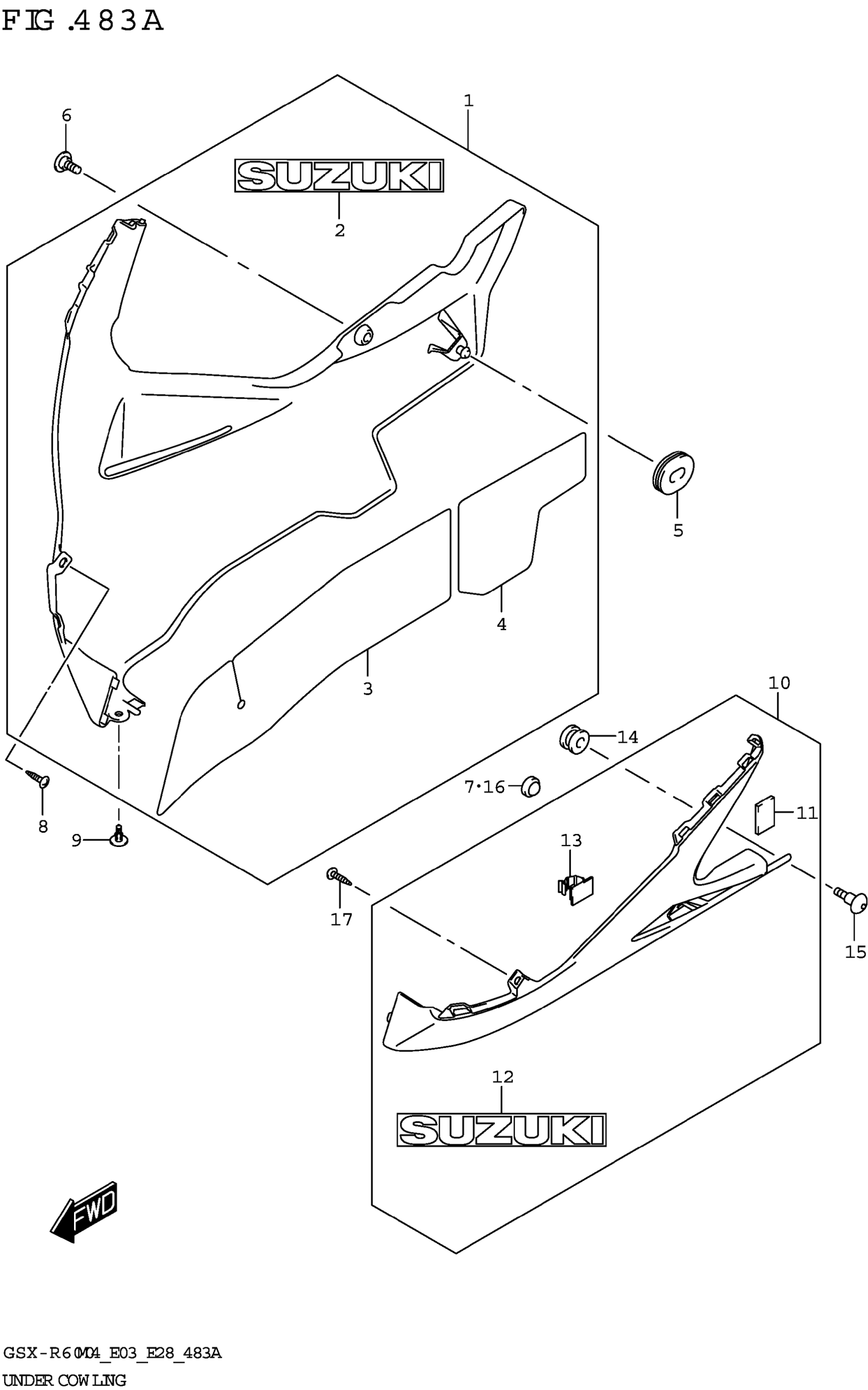

Suzuki GSX-R600M4 (2024) UNDER COWLING (GSX-R600) Diagram

#

Description
Price

1-1

COWLING,UNDER,R (WHITE) | BODY COLOR:B5N

94470-14J00-6KX

$236.34

1-2

COWLING,UNDER,R (BLACK)

94470-14J00-B8X

$283.35

2-1

.EMBLEM,SUZUKI (BLACK)

68181-33C20-019

$24.48

2-2

.EMBLEM,SUZUKI (SILVER)

68181-33C20-YES

$13.72

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10-1

COWLING,UNDER,L (WHITE) | BODY COLOR:B5N

94480-14J01-6KX

$281.03

10-2

COWLING,UNDER,L (BLACK)

94480-14J01-B8X

$241.68

11

.CUSHION,BRACKET NO.1

47161-10FA1

$5.43

12

.EMBLEM,SUZUKI (BLACK)

68181-33C20-019

$24.48

13

.CLAMP

09403-14311

$4.88

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37
