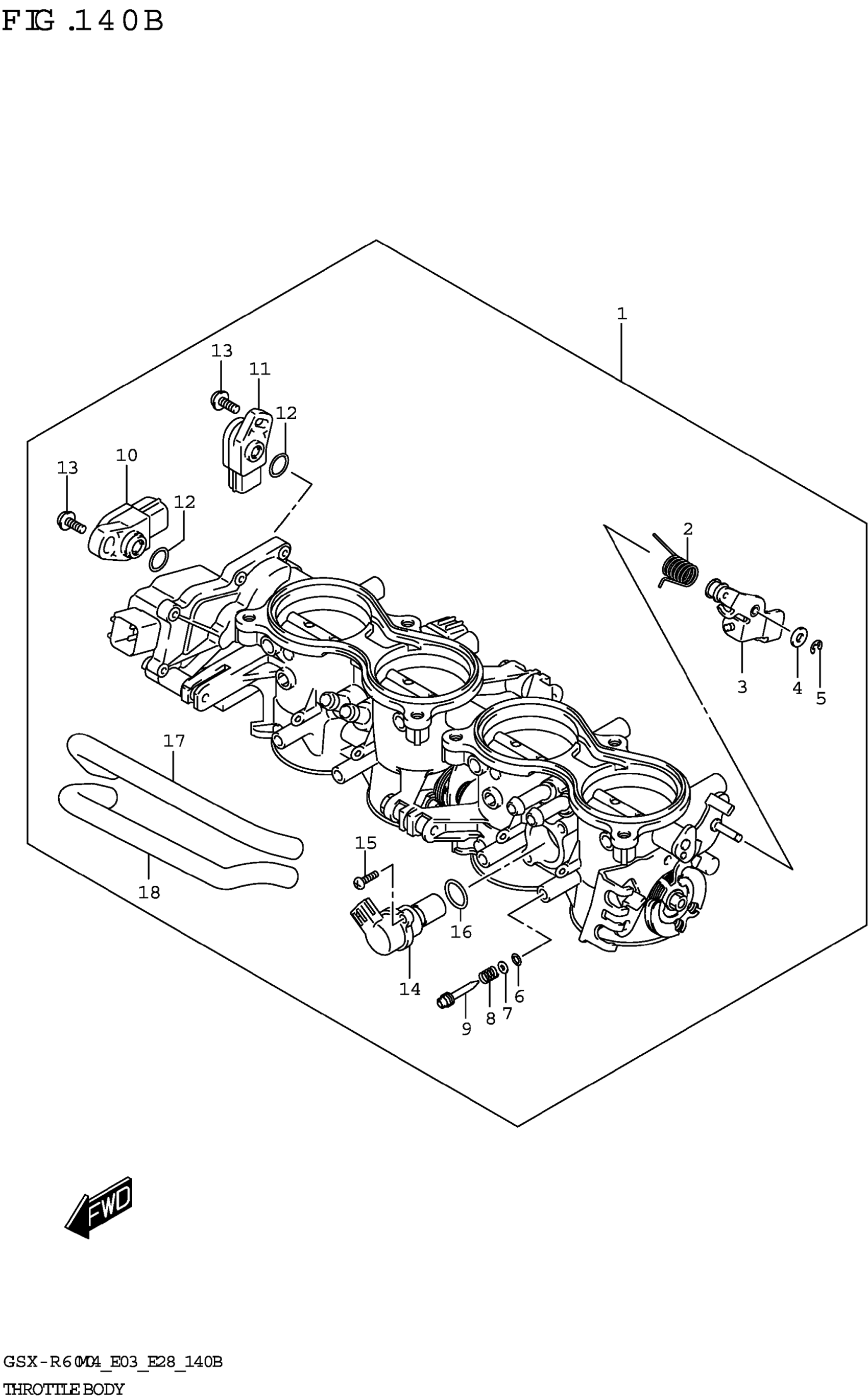

Suzuki GSX-R600M4 (2024) THROTTLE BODY (E33) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13406-14J11

$2,286.17

2

.SPRING,TORSION

13426-29G00

$6.05

3

.LEVER ASSY,LINK

13420-37H00

Unavailable

4

.PACKING

13427-29G00

$3.54

5

.E RING

13424-29G00

$3.48

6

O-RING

13295-29901

$4.34

7

WASHER

13606-47A00

$3.28

8

SPRING,THROTTLE SCREW

13268-48700

$4.34

9

SCREW

13269-33E00

$11.10

10

.SENSOR

13580-14J00

$151.08

11

.SENSOR

13580-14J10

$170.23

12

.O-RING

13575-29G01

$3.15

13

.SCREW

13605-02F00

$3.71

14

.MOTOR ASSY

18117-14J01

$392.00

15

.SCREW

13605-37H00

Unavailable

16

.O-RING

13679-37H00

$7.27

17

.HOSE

13698-14J01

$42.70

18

.HOSE

13698-14J11

$39.53
