2024 Suzuki GSX-R600M4 Throttle Body Diagram

← All diagrams

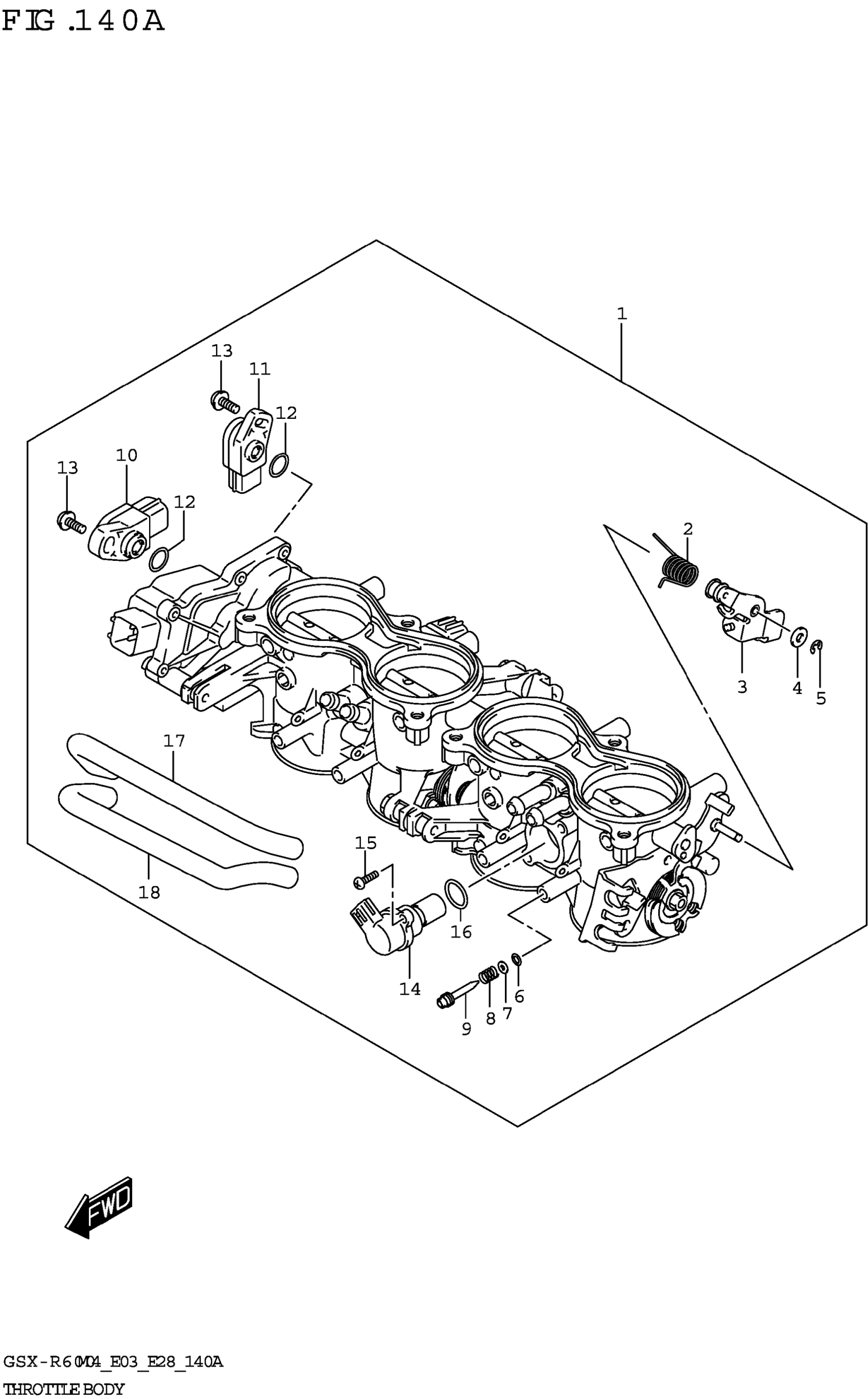

Find the part on the Throttle Body diagram for your 2024 Suzuki GSX-R600M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki GSX-R600M4 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROTTLE

13406-14J01

1
Out of stock

2

.SPRING,TORSION

13426-29G00

1
Out of stock

3

.LEVER ASSY,LINK

13420-37H00

1
Out of stock

4

.PACKING

13427-29G00

1
Out of stock

5

.E RING

13424-29G00

1
Out of stock

6

O-RING

13295-29901

4
Out of stock

7

WASHER

13606-47A00

4
Out of stock

8

SPRING,THROTTLE SCREW

13268-48700

4

$4.33

In stock

9

SCREW

13269-33E00

4
Out of stock

10

.SENSOR

13580-14J00

1
Out of stock

11

.SENSOR

13580-14J10

1
Out of stock

12

.O-RING

13575-29G01

2
Out of stock

13

.SCREW

13605-02F00

2
Out of stock

14

.MOTOR ASSY

18117-14J01

1
Out of stock

15

.SCREW

13605-37H00

2
Out of stock

16

.O-RING

13679-37H00

1
Out of stock

17

.HOSE

13698-14J01

1
Out of stock

18

.HOSE

13698-14J11

1
Out of stock
