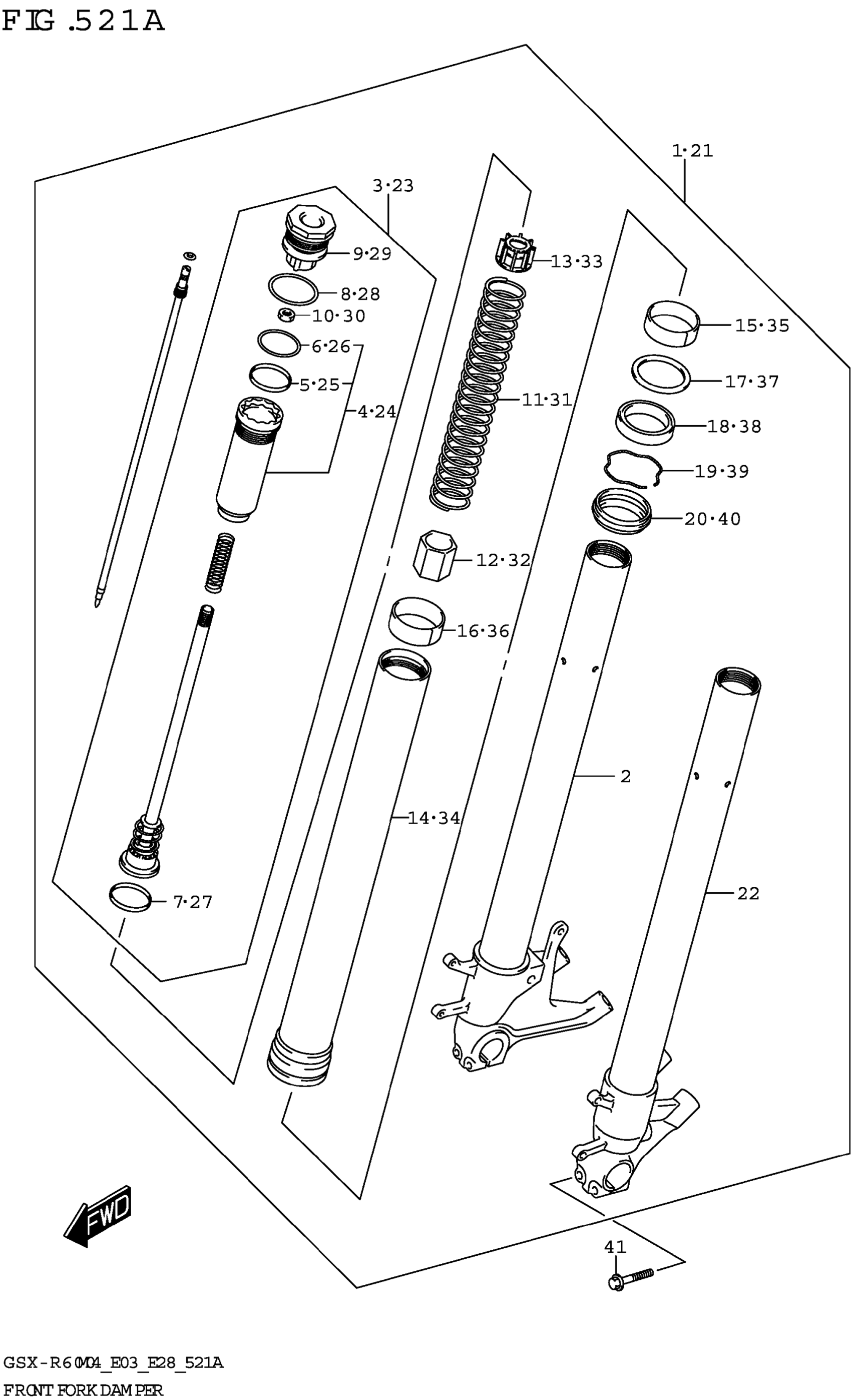

Suzuki GSX-R600M4 (2024) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,RH

51103-14J11

$2,167.13

2

.TUBE,INNER,R

51110-14J00

$878.73

3

.ROD,PISTON

52110-14J00

Unavailable

4

..CASE,ROD GUIDE

51174-14J00

$151.97

5

...PISTON RING

51118-14J10

$65.16

6

...O-RING

51187-14J00

$3.54

7

..RING,PISTON

51118-14J00

$9.18

8

..O-RING,FORK BOLT

51187-01H00

$6.79

9

..BOLT

51189-14J00

$187.13

10

..NUT

51827-29G00

Unavailable

11

.SPRING

51171-14J10

Unavailable

12

.COLLAR,SPRING

51176-14J10

$24.92

13

.COLLAR,SPRING

51175-14J00

$9.58

14

.TUBE,OUTER

51131-14J00

$684.15

15

.BUSH,GUIDE

51152-01H10

$18.25

16

.BUSH,SLIDE

51152-14J00

$14.20

17

.SPACER,SEAL

51168-38B00

$6.49

18

.SEAL,OIL

51153-01H10

$26.91

19

.RING,STOPPER

51556-38B00

$7.22

20

.SEAL,DUST

51173-01H00

$11.64

21

DAMPER FRONT,LH

51104-14J11

$2,167.13

22

.TUBE,INNER,L

51120-14J00

$895.30

23

.ROD,PISTON

52110-14J00

Unavailable

24

..CASE,ROD GUIDE

51174-14J00

$151.97

25

...PISTON RING

51118-14J10

$65.16

26

...O-RING

51187-14J00

$3.54

27

..RING,PISTON

51118-14J00

$9.18

28

..O-RING,FORK BOLT

51187-01H00

$6.79

29

..BOLT

51189-14J00

$187.13

30

..NUT

51827-29G00

Unavailable

31

.SPRING

51171-14J10

Unavailable

32

.COLLAR,SPRING

51176-14J10

$24.92

33

.COLLAR,SPRING

51175-14J00

$9.58

34

.TUBE,OUTER

51131-14J00

$684.15

35

.BUSH,GUIDE

51152-01H10

$18.25

36

.BUSH,SLIDE

51152-14J00

$14.20

37

.SPACER,SEAL

51168-38B00

$6.49

38

.SEAL,OIL

51153-01H10

$26.91

39

.RING,STOPPER

51556-38B00

$7.22

40

.SEAL,DUST

51173-01H00

$11.64

41

BOLT

51321-36F00

$5.95
