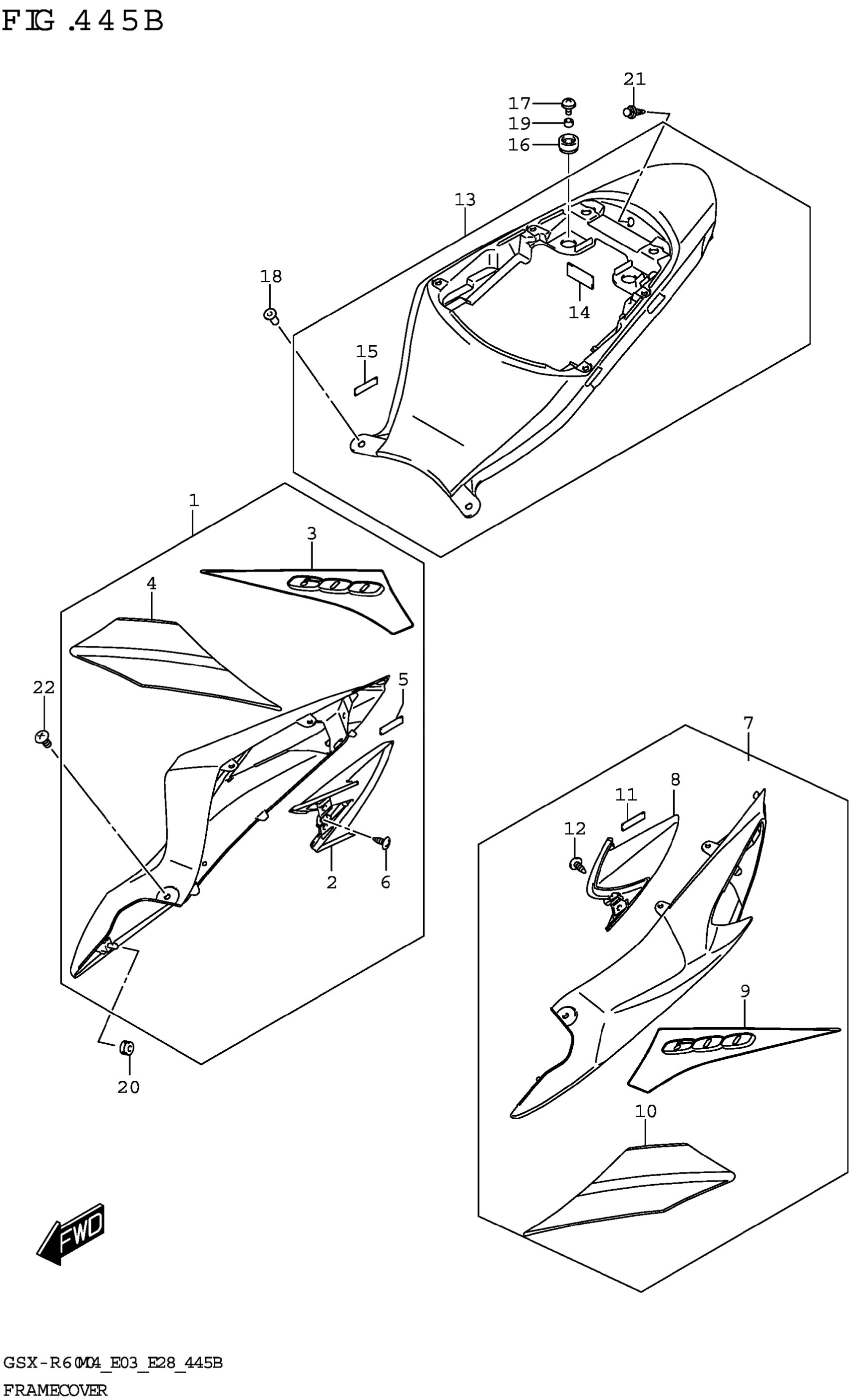

Suzuki GSX-R600M4 (2024) FRAME COVER (GSX-R600Z) Diagram

#

Description
Price

1

COVER ASSY,FRAME,R (WHITE)

47100-14JB0-YUH

$107.17

2

COVER,FRAME RR,R

47611-14J00

$17.12

3

.TAPE,FRAME COVER,R

68135-14J70-CQ6

$24.72

4

.TAPE,FRAME COVER,R

68135-14J90-CQV

$22.55

5

TAPE (6X25X0.13)

94443-06G00

$2.97

6

SCREW

03541-0512A

$1.37

7

COVER ASSY,FRAME,L (WHITE)

47200-14JB0-YUH

$107.17

8

COVER,FRAME RR,L

47621-14J00

$17.20

9

.TAPE,FRAME COVER,L

68145-14J70-CQ6

$24.72

10

.TAPE,FRAME COVER,L

68145-14J90-CQV

$22.55

11

TAPE (6X25X0.13)

94443-06G00

$2.97

12

SCREW

03541-0512A

$1.37

13

COVER ASSY,FRAME CTR

47300-14J10

$88.23

14

CUSHION (10X24X1)

48128-14FA0

$7.30

15

TAPE (6X25X0.13)

94443-06G00

$2.97

16

CUSHION (10X24X13)

47312-37H10

$2.80

17

SCREW (6X16)

09136-06056

$2.17

18

NUT (M5)

09159-05019

$6.44

19

SPACER (6.5X10X7)

09180-06283

$1.89

20

CUSHION (6X18X6)

09320-06504

$4.47

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

22

SCREW

02142-1520B

$2.34
