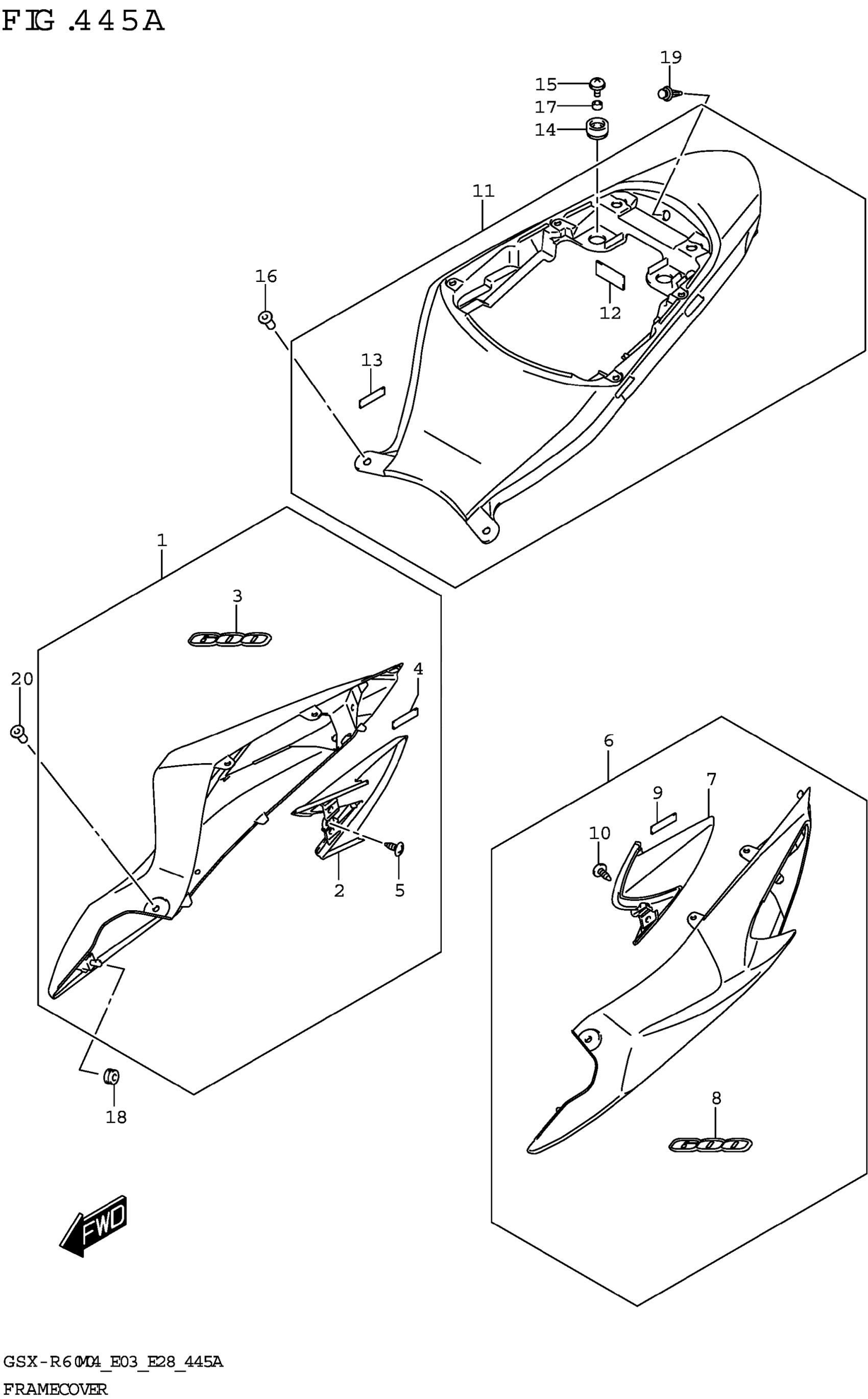

Suzuki GSX-R600M4 (2024) FRAME COVER (GSX-R600) Diagram

#

Description
Price

1-1

COVER ASSY,FRAME,R (WHITE) | BODY COLOR:B5N

47100-14J10-6KX

$114.18

1-2

COVER ASSY,FRAME,R (BLACK)

47100-14J10-46X

$107.17

2

COVER,FRAME RR,R

47611-14J00

$17.12

3-1

.EMBLEM,"600" (ORANGE,BLACK) | BODY COLOR:B5N

68131-14J00-JWH

$9.68

3-2

EMBLEM,"600"

68131-14J00-AK9

$9.18

4

TAPE (6X25X0.13)

94443-06G00

$2.97

5

SCREW

03541-0512A

$1.37

6-1

COVER ASSY,FRAME,L (WHITE) | BODY COLOR:B5N

47200-14J10-6KX

$114.18

6-2

COVER ASSY,FRAME,L (BLACK)

47200-14J10-46X

$107.17

7

COVER,FRAME RR,L

47621-14J00

$17.20

8-1

.EMBLEM,"600" (ORANGE,BLACK) | BODY COLOR:B5N

68131-14J00-JWH

$9.68

8-2

EMBLEM,"600"

68131-14J00-AK9

$9.18

9

TAPE (6X25X0.13)

94443-06G00

$2.97

10

SCREW

03541-0512A

$1.37

11

COVER ASSY,FRAME CTR

47300-14J10

$88.23

12

CUSHION (10X24X1)

48128-14FA0

$7.30

13

TAPE (6X25X0.13)

94443-06G00

$2.97

14

CUSHION (10X24X13)

47312-37H10

$2.80

15

SCREW (6X16)

09136-06056

$2.17

16

NUT (M5)

09159-05019

$6.44

17

SPACER (6.5X10X7)

09180-06283

$1.89

18

CUSHION (6X18X6)

09320-06504

$4.47

19

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

20

SCREW

02142-1520B

$2.34
