Description

Price

1

SEAT ASSY (BLACK)

45100-14J11-DW2

$230.10

2

.CUSHION

45149-37H00

$6.88

3

.CUSHION

09321-10011

$2.91

4

.CUSHION

09321-10034

$9.11

5

SCREW (6X20)

09139-06193

$4.24

6

SEAT ASSY,PILLION (BLACK)

45300-14J11-P3H

$166.96

7

.BAND ASSY,SEAT (BLACK)

45180-14J11-P3H

$25.60

8

.STRIKER

45290-47H01

$39.00

9

.WASHER (6.5X20X1.6)

09160-06088

$1.65

10

NUT (6X12)

08316-1006A

$2.19

11

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

12

SCREW

02122-0630A

$1.74

13

CABLE,SEAT LOCK

45280-14J00

$24.42

14

LOCK SET,SEAT

95700-14810

$107.30

15

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

16

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

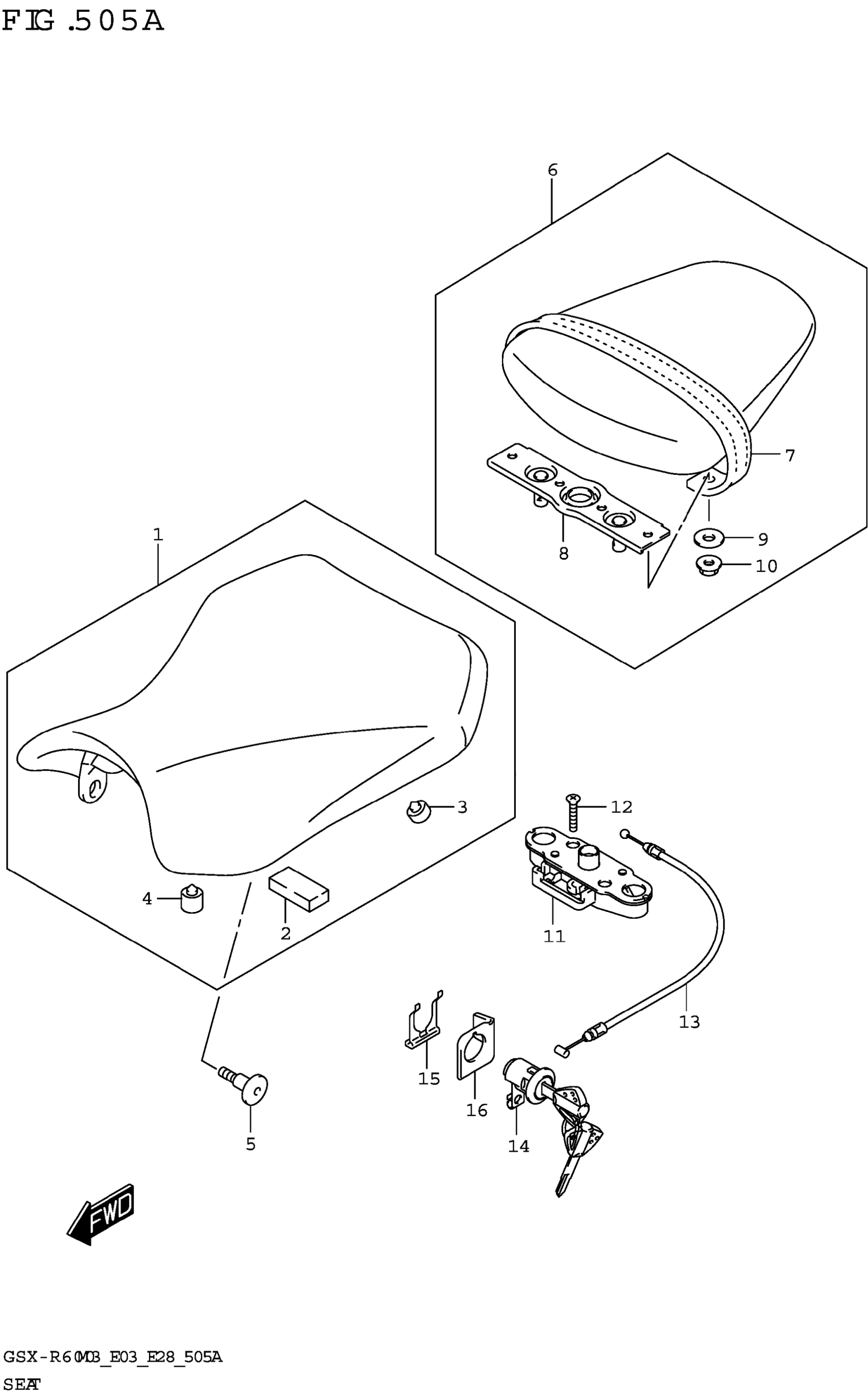

Suzuki GSX-R600M3 (2023) SEAT Diagram

SEAT ASSY (BLACK)

.CUSHION

.CUSHION

.CUSHION

SCREW (6X20)

SEAT ASSY,PILLION (BLACK)

.BAND ASSY,SEAT (BLACK)

.STRIKER

.WASHER (6.5X20X1.6)

NUT (6X12)

BRACKET,SEAT SUPPORT

SCREW

CABLE,SEAT LOCK

LOCK SET,SEAT

PLATE,SEAT LOCK ASSY

GUIDE,SEAT LOCK CABLE
